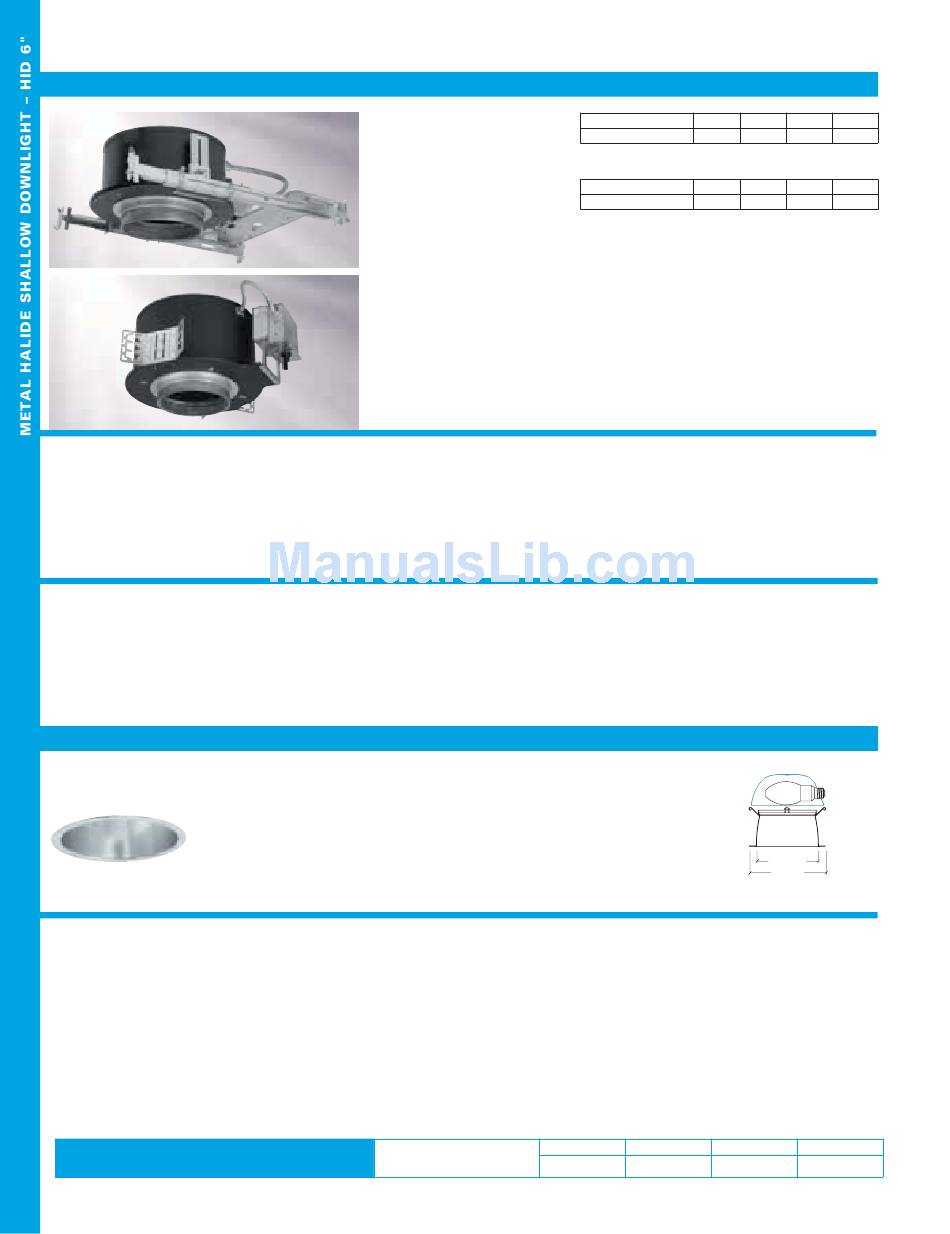

Cooper Lighting Shallow Downlight Metal Halide ED17 Specification Sheet

PORTFOLIO
HOUSING
6"
MD6S
Magnetic
MD6S --
Electronic
HOUSING
[Magnetic Ballast]
MD6S=Metal Halide, Shallow
HOUSING
[Electronic Ballast]
MD6S50=50W Electronic Metal Halide, Shallow
MD6S50CP=50W Electronic Metal Halide, Shallow, Chicago Plenum
MD6S70=70W Electronic Metal Halide, Shallow
MD6S70CP=70W Electronic Metal Halide, Shallow, Chicago Plenum
TRIM
Downlight
Ordering Example
Housing, Ballast, Trim, Accessories and Lamps ordered as separate line items.
876
COOPER LIGHTING
™
6" Shallow Downlight
Metal Halide
ED17
Wide beam downlight for
general lighting from a
single horizontally mounted
ED17 metal halide lamp. Low
profile allows use where
vertical clearance is limited.
Use with lamps suitable for
enclosed fixtures. Magnetic
ballast ordered separately
installs rapidly to ballast
bridge with electrical quick
connects. Bar hangers
provided with magnetic
ballast housing.
TRIM
6141=Self Flanged
6140=Metal Trim Ring, White
*Magnetic Ballast - separate line item
*
Electronic Ballast - ships with housing
Dimensions - Magnetic
Standard Housing
Dimensions - Electronic Length
Standard Housing
BALLAST
720=50W MH 120/277V Magnetic
728=50W MH 120/347V Magnetic
730=70W MH 120/277V Magnetic
738=70W MH 120/347V Magnetic
BALLAST
1E=120V 50/60 Hz Electronic
2E=277V 50/60 Hz Electronic
FINISH
LI=Low Iridescent Clear
H=Haze
WMH=Warm Haze
G=Gold
WH=Wheat
W=Gloss White
GP=Graphite
GPH=Graphite Haze
K=Cognac
KH=Cognac Haze
Housing
MD6S702E
Length Width Height
24-7/16" 15-1/2" 6-1/2"
Width Height
18-5/8" 18" 9-7/8"
ACCESSORIES
HSA6=Slope Adapter for 6" Aperture Housings,
Specify Slope
TRM6=Metal Trim Ring, Specify Finish
*
TRR6=Rimless Trim Ring, White
*
FK – =Field Installed Fuse Kit, Specify Amperage
*Not compatible with Self Flange
ACCESSORIES
HB26=C Channel Bar Hanger, 26" Long, Pair
HB50=C Channel Bar Hanger, 50" Long, Pair
RMB22=Wood Joist Bar Hanger, 22" Long, Pair
HSA6=Slope Adapter for 6" Aperture Housings,
Specify Slope
TRM6= Metal Trim Ring, Specify Finish
TRR6=Rimless Trim Ring, White
FK=Field Installed Fuse Kit, Specify Amperage
OPTIONS
WF=White
Painted Flange
(Self Flanged
only)
5-11/16"
7-1/4"
Ballast Trim Accessories
6141LI
Cutout
6-3/8"
Cutout
6-3/8"
TRM6
