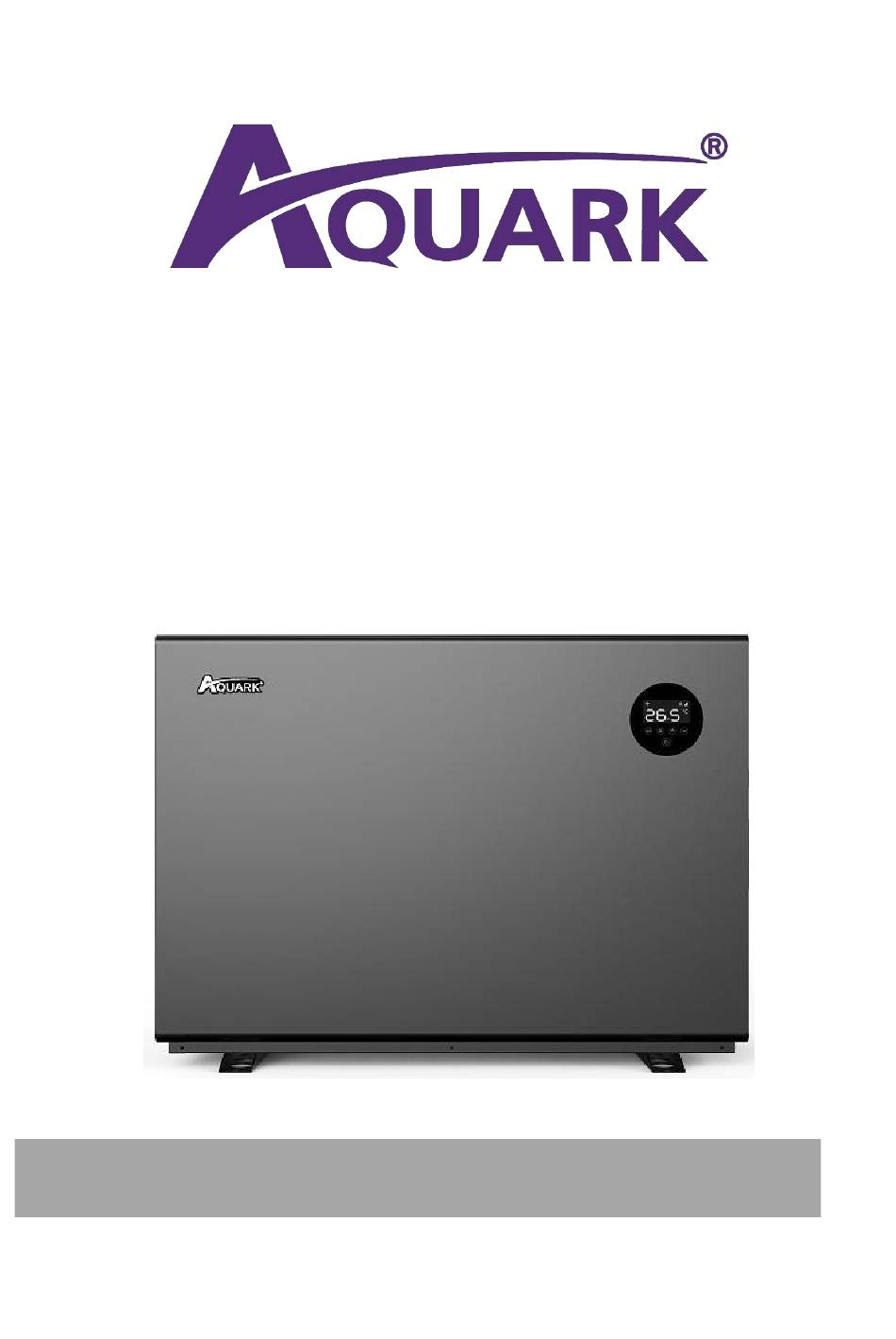

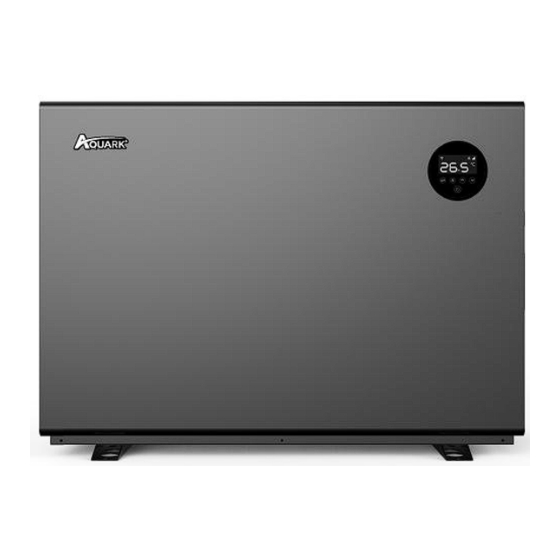

- Page 1 MR. SILENCE INVERTER POOL HEAT PUMP USER MANUAL...
-
Page 2: Table Of Contents
Table of contents Foreword B. Safety Precautions Warning Attention Safety C. About your heat pump Transportation Accessories Features Operating range Introduction of different modes Technical parameter Dimension D. Installation guidance Installation reminder Wiring Electric wiring diagram References for protecting devices and cable specification Operation guidance Key Function Operation Instruction... -
Page 3: Foreword
A. Foreword Thank you for choosing our inverter pool heat pump, which is designed for more silent and energy saving user experience. It is an ideal way for green pool heating. We hope you'll enjoy using our heat pumps. Thank you! B. -
Page 4: Warning
We have provided important safety messages in this manual and on your heat pump. Please always read and obey all safety messages. 1. Warning The WARNING sign denotes a hazard. It calls attention to a procedure, practice, or the like, which, if not correctly performed or adhered to, could result in personal injury or injury to a third party. -
Page 5: Safety
a. Please read the following instructions before installation, use and maintenance. b. Installation must be done by professional staff only in accordance with this manual. c. Leakage test must be performed after installation. d. Please don’t stack substances, which will block air flow near inlet or outlet area, otherwise the efficiency of the heat pump will be reduced or even stopped. -
Page 6: About Your Heat Pump
C. About your heat pump 1. Transportation a. Always keep upright b. Do not lift the water union (Otherwise the titanium heat exchanger may be damaged) 2. Accessories Connection of the condensate drainage kit: Inverter heat pump solution... -
Page 7: Features
3. Features DC Twin-rotary inverter compressor of Mitsubishi DC Brushless fan motor EEV Technology Reverse cycle defrosting with 4-way valve High-efficiency twisted titanium heat exchanger Sensitive and accurate temp control and water temp display High pressure and low-pressure protection Full protection on electrical system 4. -
Page 8: Technical Parameter
Heating capacity: 20% to 80% capacity Silence mode Sound level: 3dB (A) lower than Boost mode 6. Technical parameter Model MS70 MS90 MS110 MS130 MS150 MS170 MS210 MS210S MS280 MS280S MS350S PERFORMANCE CONDITION: Air 27°C/ Water 27°C/ Humid. 80% Heating capacity(k 17.5 35.2... -
Page 9: Dimension
7.3~4.5 7.5~4.8 7.3~4.7 7.5~5.0 7.7~4.9 7.7~5.0 7.1~5.0 7.1~5.0 8.0~5.0 8.0~5.0 7.5~5 Range TECHNICAL SPECIFICATION Advised pool 15~30 20~45 30~55 35~65 40~70 40~80 50~95 50~95 60~120 60~120 85~160 volume Operating -10°C~43°C temperatur e (°C) Power 400V 230V 230V 1Ph 400V 3Ph supply Rated input... -
Page 10: Installation Guidance
Size(mm) Name Model MS70 MS90 MS110 MS130 MS150 MS170 1060 MS210 1060 MS210S 1060 MS280 1060 MS280S 1060 MS350S 1314 ※ Above data is subject to modification without notice. Note: The picture above is the specification diagram of the pool heat pump, for technician’s installation and layout reference only. - Page 11 a. Location and water pipe connection The inverter pool heat pump should be installed in a good ventilation place. 1) The frame must be fixed by bolts (M10) to concrete foundation or brackets. The concrete foundation must be solid and fastened; the bracket must be strong enough and antirust treated; 2) Please don’t stack substances that will block air flow near inlet or outlet area, and there is no barrier within 50cm behind the main machine, or the efficiency of the heat pump will be reduced or even stopped;...
-
Page 12: Wiring
The inlet and outlet water unions can’t stand the weight of soft pipes. The heat pump must be connected with hard pipes! DO NOT install water pipes in a way that they pass behind the heat pump's evaporator. In case this cannot be avoided, cover the pipes with thermal insulation foam. -
Page 13: References For Protecting Devices And Cable Specification
Distribution Box (Customer prepare) Swimming Pool Heat Pump Wiring Board Power Cord Power Supply Fuse 230V 50Hz Breaker Earthing Must be hard wired, plug is not allowed. 2) The swimming pool heat pump must be earthed well. 4. References for protecting devices and cable specification MODEL MS70 MS90... -
Page 14: Operation Guidance
Note: The above data is adapted to power cord ≤ 10m. If power cord is＞10m, wire diameter must be increased. The signal cable can be extended to 50m maximum. E. Operation guidance 1. Key Function Symbol Heating only models Inverter heat pump solution... -
Page 15: Operation Instruction
1. Power On/Off 2. Wi-Fi setting Lock/Unlock screen 1. Boost 2. Silence Temperature Setting From 18~40°C Attention: The controller has power-down memory function. The buttons will turn dark when it’s locked. 2. Operation Instruction a. Screen Lock 1) Press “ ”... - Page 16 Please choose boost mode for initial heating e. Wi-Fi “ ” When the screen is on, press “ ”for 3 seconds, after “ ” flashing, enter Wi-Fi connection. Connect Wi-Fi on mobile phone and input password, and then control equipment by Wi-Fi. When APP connects Wi-Fi successfully，“...
-
Page 17: Testing
DC fan speed r/min h. Temperature display conversion (Celsius/Fahrenheit) When the screen is on，Press “ ” and “ ” simultaneously for 5 seconds to switch the display between degrees Celsius and degrees Fahrenheit. Attention：The controller has power-down memory function. F. Testing 1. -
Page 18: Trial
service center. Please stop using while gas leakage occur, and contact professional personnel in service center. 3. Trial The user must “Start the Pump before the Machine, and Turn off the Machine before the Pump”, or the machine will be damaged. Before start the heat pump, please check for any leakage of water. -
Page 19: Trouble Shooting For Common Faults
2. Please clean this machine with household detergents or clean water, NEVER use gasoline, thinners or any similar fuel. 3. Check bolts, cables and connections regularly. 4. If repair or scrap is required, please contact authorized service center nearby. 5. Do not attempt to work on the equipment by yourself. Improper operation may cause danger. 6. - Page 20 Power switch is off Switch on the power Fuse burned Check and change the fuse The breaker is off Check and turn on the breaker evaporator blocked Remove the obstacles Fan running but with Air outlet blocked Remove the obstacles insufficient heating 3 minutes start delay Wait patiently...
-
Page 21: Water Pump Control Connection
Restart memory failure Compressor driver module failure PFC module failure Compressor start failure Compressor running failure Inverter board over current protection Inverter board overheat protection Current protection Cooling plate overheat protection Fan motor failure Power filter plate No-power protection PFC module over current protection I. - Page 22 Inverter heat pump solution...
- Page 23 Water pump: 230V voltage, ＞500W capacity Breaker/fuse Power cord (Customer prepare) Earthing Power Supply 230V~/50Hz Water pump Customer remote control switch connector Breaker/fuse Water Pump (Customer prepare) Contactor Power Supply 230V~/50Hz Earthing Inverter heat pump solution...
- Page 24 Water pump: 400V voltage Breaker/fuse (Customer prepare) Power Supply Power cord 400V~/50Hz Earthing Water Customer remote pump control switch connector Water Pump Breaker/fuse (Customer prepare) Contactor Power Supply 400V~/50Hz Earthing Water pump control and timer connection Inverter heat pump solution...
- Page 25 1: Water pump timer 2: Water pump wiring of Heat Pump Note: The installer should connect 1 parallel with 2 (as above picture). To start the water pump, condition 1 or 2 is connected. To stop the water pump, both 1 and 2 should be disconnected. Inverter heat pump solution...
-
Page 26: Wi-Fi Operation
J. Wi-Fi operation InverGo Download Account Registration Register by e-mail or third-party application. Android a. E-mail registration. Inverter heat pump solution... - Page 27 b. Register through third-party application Create Family Please set family name and choose location of device. Inverter heat pump solution...
- Page 28 APP Pairing a. With Bluetooth 1. Please confirm that you’re connected to Wi-Fi and your Bluetooth is 2. Click “Add Device”, and then follow the instructions to pair device. Inverter heat pump solution...
- Page 29 b. With Wi-Fi 1. Please make sure you are connected to Wi-Fi. 2. Press " " for 3 seconds to unlock the screen. Press “ ” for 3 seconds and release. After hearing “Beep”, enter Wi-Fi password app. During connection, “ ”...
- Page 30 Operation 1. For heat pump with Heating function only: Compressor Indicate speed Boost/Silence mode °C/°F switch Inlet water Setting temperature temperature Query Select Boost/ Timer Silence Mode On/Off 2. For heat pump with Heating&Cooling function: Compressor Indicate speed Boost/Silence mode °C/°F switch Inlet water Setting...
- Page 31 Share Devices to Your Family Members After pairing, if your family members also want to control the device, please let your family members register “InverGo” first, and then the administrator can operate as below: Notice: Weather forecast is just for reference. App is subject to updates without notice.
- Page 32 After-service Form (Heating/Cooling/Defrosting Problem) If you have heating/cooling/defrosting issues, please fill this form for technical support. PRODUCT INFORMATION Serial Number PERFORMANCE INFORMATION Pool size Setting point Water flow ☐ Yes Pool cover (°C) ☐ No Front cm ☐ >2m Back cm ☐...
