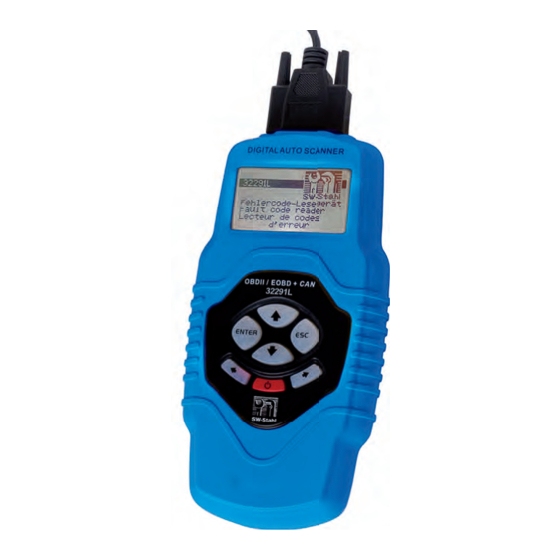

32291L

Fault code reader

for reading out and deleting the engine fault memory via OBDII plug.

General (P0, P2, P3 and U0) and vehicle-dependent (P1, P3, U1) codes

are recognised for the brands Audi, Alfa Romeo, BMW, Chrysler, Citröen,

Daewoo, Daihatsu, Fiat, Ford, Honda, Hyundai, Iveco, Jaguar, KIA,

Lexus, MAN, Mazda, Mercedes-Benz, Mitsubishi, Nissan, Opel, Peugeot,

Porsche, Renault, Saab, Scania, Skoda, Subaru, Suzuki, Toyota, VW,

Volvo

▪ Suitable for vehicles with OBDII / EOBD Petrol engines from '00,

diesel from '03

Protocols supported:

CAN, ISO9141, KW2000, VPW, PWM

Many other functions, e.g.

▪ Reading and deleting the DCTs of the control units

- Deleting the status of the engine warning lamp

▪ Inquiry of the VIN on vehicles manufactured since '02

(mode 9 supported)

▪ Status inquiry for sensors with engine running

▪ Language settings English, French, German,

Dutch, Spanish

▪ Date storage and printing (printing in conjunction

with USB cable and external computer)

▪ With USB cable for software updates

SW-Stahl GmbH

Leverkuser Strasse 65

D-42897 Remscheid

VPW, PWM

he DCTs of the control units

the engine warning la lamp

ehicles manufactured s

ors with engine running

glish, French, German,

ng (printing in conjunction

ternal computer)

tware updates

Tel. +49 (0) 2191 / 46438-0

Fax +49 (0) 2191 / 46438-40

E-Mail: info@swstahl.de

ince '02

www.swstahl.de

Table of Contents

Need help?

Do you have a question about the 32291L and is the answer not in the manual?

Questions and answers

Summary of Contents for SW-Stahl 32291L

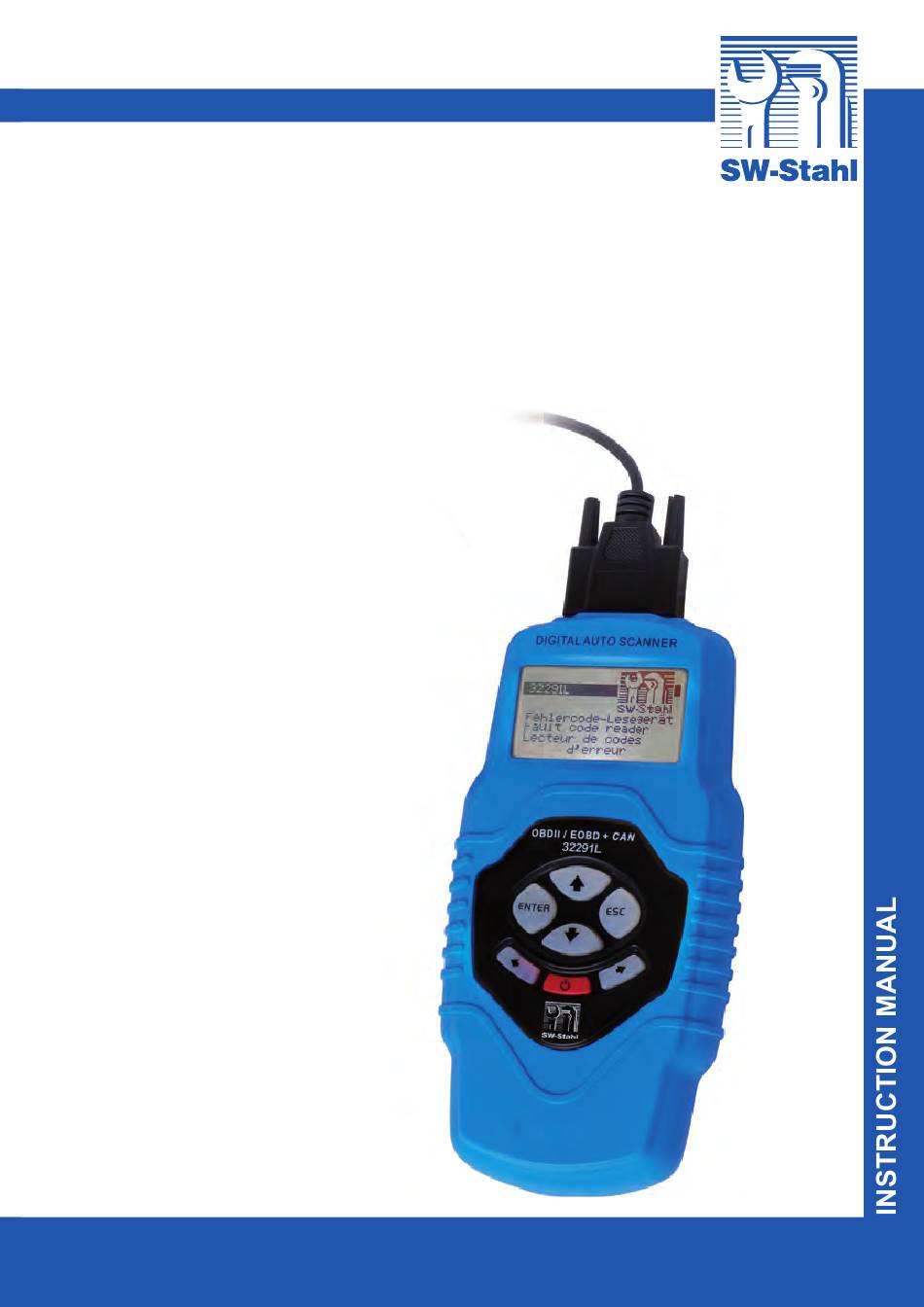

Page 1 32291L Fault code reader for reading out and deleting the engine fault memory via OBDII plug. General (P0, P2, P3 and U0) and vehicle-dependent (P1, P3, U1) codes are recognised for the brands Audi, Alfa Romeo, BMW, Chrysler, Citröen, Daewoo, Daihatsu, Fiat, Ford, Honda, Hyundai, Iveco, Jaguar, KIA,...
Page 2: Table Of Contents
32291L Table of Contents 1. Safety Precautions and Warnings .......... 3 2. General Information ..............3 2.1 On-Board Diagnostics (OBD)II ............3 2.2 Diagnostic Trouble Codes (DTCs)..........4 2.3 Location of the Data Link Connector (DLC) ........ 5 2.4 OBD II Readiness Monitors ............5 2.5 OBD II Monitor Readiness Status...........
Page 3: Safety Precautions And Warnings
32291L 1. Safety Precautions and Warnings To prevent personal injury or damage to vehicles and/or the scan tool, read this instruction manual first and observe the following safety precautions at a minimum whenever working on a vehicle: 1. Always perform automotive testing in a safe environment.
Page 4: Diagnostic Trouble Codes (Dtcs)
32291L The OBD II system is designed to monitor emission control systems and key engine components by performing either continuous or periodic tests of specific components and vehicle conditions. When a problem is detected, the OBD II system turns on a warning lamp (MIL) on the vehicle instrument panel to alert the driver typically by the phrase of "...
Page 5: Location Of The Data Link Connector (Dlc)
32291L 2.3 Location of the Data Link Connector (DLC) The DLC (Data Link Connector or Diagnostic Link Connector) is the standardized 16-cavity connector where diagnostic scan tools interface with the vehicle's on-board computer. The DLC is usually located 12 inches from the center of the instrument panel (dash), under or around the driver's side for most vehicles.
Page 6: Obd Ii Monitor Readiness Status
32291L monitored components listed below are always ready: 1. Misfire 2. Fuel System 3. Comprehensive Components (CCM) Once the vehicle is running, the OBD II system is continuously checking the above components, monitoring key engine sensors, watching for engine misfire, and monitoring fuel demands.
Page 7: Obd Ii Definitions
32291L they will be reported asœ" Ready " all of the time. If testing of a particular supported non-continuous monitor has not been completed, the monitor status will be reported as " Not Complete " or " Not Ready ".
Page 8: Diagnostic Interface
32291L 32291L SW-Stahl GmbH Tel. +49 (0) 2191 / 46438-0 Leverkuser Strasse 65 Fax +49 (0) 2191 / 46438-40 D-42897 Remscheid E-Mail: info@swstahl.de...
Page 9 32291L 32291L www.swstahl.de SW-Stahl GmbH Tel. +49 (0) 2191 / 46438-0 Leverkuser Strasse 65 Fax +49 (0) 2191 / 46438-40 D-42897 Remscheid E-Mail: info@swstahl.de...
Page 10: Specifications
32291L 5. RIGHT SCROLL BUTTON -- When look up DTC definitions, moves to next character and view additional information on next screens if DTC definition covers more than one screen; selects/deselects PID data when viewing or recording customized live data list, and views next frames of data when playing back live data.
Page 11: Navigation Characters
32291L 3). OBD2 cable -- Provides power to tool and communicates between tool and vehicle. 4). USB cable -- Used to upgrade the scan tool, and to print retrieved data. 5). Carry case -- A nylon case to store the scan tool when not in use.
Page 12: Dtc Lookup
32291L A plastic DLC cover may be found for some vehicles and you need to remove it before plugging the OBD2 cable. 3). Plug OBD II cable to the vehicle's DLC. 3.7 DTC Lookup The DTC Lookup function is used to search for definitions of DTCs stored in built-in DTC library.
Page 13: Product Setup
32291L If definition could not be found (SAE or Manufacturer Specific), the scan tool displays DTC definition not found! Please refer to vehicle service manual!B 4). To view next or previous DTC in the built-in DTC library, use UP/ DOWN button.
Page 14 32291L System Setup ====================5/6 Diagnostics DTC Lookup Review Data Print Data System Setup Tool Information Language Setup English is the default language. 1). From System Setup menu, use UP/DOWN scroll button to select Language , and press ENTER button. System Setup...
Page 15 32291L System Setup =================== Language Contrast Unit of Measure Auto Power-Off Beep Set Tool Self-test 2). From Contrast menu, use UP/DOWN scroll button to increase or decrease contrast. Contrast ======================= (30%) change 3). Press ENTER button to save your settings and return to previous menu.
Page 16 32291L Unit of Measure ==================== English Metric 3). Press ENTER button to save your selection and return to previous menu. Auto Power-off The minimum automatic power-off time is 1 minute, and the maximum is 20 minutes. The Auto Power-Off function can be available only when the scanner is powered by cell battery.
Page 17 32291L 3). Press ENTER button to save your setting and return to previous menu. Beep Set The default setting is Beep On. 1). From System Setup menu, use UP/DOWN scroll button to select Beep Set and press ENTER button. System Setup...
Page 18 32291L System Setup ====================6/6 Language Contrast Unit of Measure Auto Power-off Beep Set Tool Self-test 2). Select Display Test from Tool Self-test menu and press ENTER button. Tool Self-test ====================1/2 Display Test Keyboard Test 3). Press ENTER button again to start test. Look for missing spots in the solid black characters.
Page 19: Tool Information
32291L 2). Press any key to start test. When you press a key, the key name should be observed on the display. If the key name does not show up, then the key is not functioning properly. Keyboard Test =======================...
Page 20: Battery Replacement
32291L Tool Information ======================= Serial No. : MS083462 Burn Date :11/12/07 S/W Ver :V1.00 H/W Ver :V1.01 LIB Ver :V1.00 3.10 Battery Replacement The scan tool requires a 9V cell battery to operate when disconnected from vehicle power. 1). Locate the battery cover on the back of the scan tool.
Page 21: Review Data
32291L Vehicle Linking Error A communication error occurs if the scan tool fails to communicate with the vehicle's ECU (Engine Control Unit). You need to do the following tocheck up: Verify that the ignition is ON; Check if the scan tool's OBD II connector is securely connected to the vehicle's DLC;...
Page 22 32291L Main Menu ====================3/6 Diagnostics DTC Lookup Review Data Print Data System Setup Tool Information 2). Use UP/DOWN scroll button to select the desired item from Review Data menu, and press ENTER button. Review Data ====================1/9 Stored Codes Pending Codes...
Page 23: Obd Ii Diagnostics
32291L 5. OBD II Diagnostics When more than one vehicle control module is detected by the scan tool, you will be prompted to select the module where the data may be retrieved. The most often to be selected are the Powertrain Control Module [PCM] and Transmission Control Module [TCM].
Page 24 32291L Contact your local distributor or the manufacturer's customer service department for assistance. 7. You will be prompted to erase previously stored data. Review previously stored data thoroug hly before erasing. Diagnostic ======================= Erase previously stored data to save data from this test? If no data is stored in the scan tool, above prompt will not show up.
Page 25: Reading Codes
32291L Use UP/DOWN scroll button to select a module and press ENTER button. 5.1 Reading Codes Reading Codes can be done with the key on engine off (KOEO) or with the key on engine running (KOER). Stored Codes are also known as " hard codes " or " permanent codes ".
Page 26: Erasing Codes
32291L 3). View DTCs and their definitions on screen. P0118 Generic ======================= Engine Coolant Temperature Sensor 1 Circuit Hig h The control module number, sequence of the DTCs, total number of codes detected and type of codes (Generic or Manufacturer specific) will be observed on the upper rig ht hand corner of the display.
Page 27 32291L the system has been checked completely by a technician. This function is performed with key on engine off (KOEO). Do not start the engine. 1). Use UP/DOWN scroll buttons to select Erase Codes from Diagnostics Menu and press ENTER button.
Page 28: Live Data
32291L If the codes are not cleared, then an Erase Failure. Turn Key on with Engine off! B message appears. Erase Codes ======================= Erase Failure. Turn Key on with Engine Off! Press any key to con. 4). Press any button to return to Diagnostic Menu .
Page 29 32291L 3). Use UP/DOWN scroll button to select View Data from Live Data menu and press ENTER button. LiveData ====================1/3 View Data Record Data Playback Data Viewing Complete Data Set 4). To view complete set of data, use UP/DOWN scroll button to select Complete Data Set from View Data menu and press ENTER button.
Page 30 32291L RPM (/min) 1725 6). Press ESC button to return to previous menu. Viewing Custom Data Set 7). To view customized PID data, use UP/DOWN scroll button to select Custom Data Set from View Data menu and press ENTER button.
Page 31 32291L Custom Data Set ===================== DTC_CNT FUELSYS1 FUELSYS2 L O A D _ P C T ( % ) SHRTFT1(%) The number "x" to the upper rig ht corner of the screen indicates sequence of hig hlig hted item; and " #x" Bare the order that the parameters are selected and will be displayed.
Page 32 32291L 11). Use ESC button to return to View Data menu and/or return to Live Data menu. Recording Data The Record Data function allows recording vehicle modules Parameter Identification (PID) data to help diagnose intermittent vehicle problems. A recording includes 5 frames of live data before trigger event and several frames after trigger event.
Page 33 32291L 3). Use UP/DOWN scroll button to select a trigger mode and press ENTER button. Pick Trigger Mode ====================1/2 Manual Trigger DTC Trigger If data from previously tested vehicle is not erased, data from current test will be stored in a temporary cache. Following screen shows when...
Page 34 32291L Select Memory ====================1/3 Location #1 Location #2 Location #3 The asterisk ( * ) icon on the screen indicates that there is a previous recording in the memory location. If you select a location marked with an asterisk ( * ) icon, a message prompting to overwrite old recording displays.
Page 35 32291L If DTC Trigger is selected, following screen shows: DTC Trigger ======================= Waiting for DTC to trigger recording Press [ESC] to exit 6). Wait for DTC to trigger recording or press ENTER to start recording. Drive till a DTC is detected when DTC Trigger is selected. If no DTCs are detected, press ESC to exit recording.
Page 36 32291L If you wish to playback recorded data, press ENTER button; if you do not wish to playback, press ESC button, or use LEFT/RIGHT button to select NO and press ENTER button to return to Record Data menu. Record Data...
Page 37 32291L parameters are marked with solid squares. Press ENTER button to confirm. Custom Data Set ======================= DTC_CNT FUELSYS1 FUELSYS2 LOAD_PCT(%) ETC( C ) SHRTFT1(%) You are allowed to pick up a maximum of 18 PIDs. If the selected PIDs exceed 18, aœ "The selected data list is full!" message displays on the screen.
Page 38 32291L Pick Trigger Mode ====================1/2 Manual Trigger DTC Trigger If data from previously tested vehicle is not erased, data from current test will be stored in temporary cache. Following screen shows when Manual Trigger is selected: Manual Trigger ======================= Ready to record!
Page 39 32291L The asterisk ( * ) icon on the screen indicates that there is a previous recording in the memory location. If you select a location marked with an asterisk ( * ) icon, a message prompting to overwrite old recording is displayed.
Page 40 32291L 14). Wait for DTC to trigger recording or press ENTER to start recording. Recording 5/60 ===================-==6 DTC_CNT FUELSYS1 FUELSYS2 LOAD_PCT(%) ETC( C ) SHRTFT1(%) 15). The scan tool keep recording PID data until user presses ESC button, the selected memory location is full, or it completes recording. A message prompting to playback data shows on the screen.
Page 41 32291L 1). To playback recorded data, use UP/DOWN scroll button to select Playback Data from Live Data menu and press ENTER button. Live Data ====================3/3 View Data Record Data Playback Data You are also allowed to playback recorded data immediately after recording.
Page 42: Viewing Freeze Frame Data
32291L The number " x/x " to the upper rig ht corner of the screen indicates total number of recorded frames and sequence of frame being displayed. Negative frames indicate data recorded prior to trigger event; and positive frames indicate data recorded after trigger event.
Page 43: Retrieving I/M Readiness Status
32291L 3). If retrieved information covers more than one screen, then a down arrow will appear. Use DOWN scroll button, as necessary, until all the data have been shown up. View Freeze Frame =====================2 DTC_CNT 1630 FUELSYS1 FUELSYS2 LOAD_PCT(%) ETC( C ) SHRTFT1(%) If there is no freeze frame data available, an advisory message "...
Page 44 32291L A. Since DTCs Cleared - indicates status of the monitors since the DTCs are erased. B. This Drive Cycle - indicates status of monitors since the beginning of the current drive cycle. An I/M Readiness Status result of "NO" does not necessarily indicate that the vehicle being tested will fail the state I/M inspection.
Page 45 32291L 3). If the vehicle supports both types of tests, then both types will be shown on the screen for selection. I/M Readiness ====================1/2 Since DTCs Cleared This Drive Cycle 4). Use UP/DOWN scroll button, as necessary, to view the status of the MIL lig ht ( "ON"...
Page 46: O2 Monitor Test
32291L This Drive Cycle ======================= MIL Status Misfire Monitor Fuel System Mon Comp. Component Catalyst Mon Htd Catalyst 6). Press ESC button to return to Diagnostic Menu. 5.6 O2 Monitor Test OBD2 regulations set by SAE require that relevant vehicles monitor and test the oxygen (O2) sensors to identify problems related to fuel efficiency and vehicle emissions.
Page 47 32291L 2). Wait a few seconds while the scan tool validates the PID MAP. O2 Monitor Test ======================= Reading PID - Please Wait - 3). Use UP/DOWN scroll button to select O2 sensor from O2 Monitor Test menu and press ENTER button.
Page 48: On-Board Monitor Test
32291L 5). Use UP/DOWN scroll button to view more screens of data if an or icon displays. 6). Press ESC button to return to the previous menus. 5.7 On-Board Monitor Test The On-Board Monitor Test is useful after servicing or after erasing a vehicle's control module memory.
Page 49 32291L On-Board Mon. Test ==================-=1/3 Test $01 Data Test $05 Data Test $09 Data If the vehicle under test does not support the mode, an advisory message will be displayed on the screen. On-Board Mon. Test ======================= The selected mode is not supported Press any key to con.
Page 50: Component Test
32291L For CAN-equi pped vehicles, test results displayed can be as below: O2 Mom. B1S1 ======================= Rich-Lean Threshd (MV) MEAS: 0.450 MIN: 0.312 MAX: 0.630 STS: 6). Press ESC button to return to the previous menus. 5.8 Component Test The Component Test function allows initiating a leak test for the vehicle's EVAP system.
Page 51: Viewing Vehicle Information
32291L 3). From Component Test menu, use UP/DOWN scroll button to select the test to be initiated. Component Test ==================-=1/1 Evap Leak Test 4). If the test has been initiated by the vehicle, a confirmation message will be displayed on the screen.
Page 52 32291L Diagnostic Menu ===================-9/11 On-Board Mon. Test Component Test Vehicle Info. Modules Present Unit of Measure 2). An advisory message comes up to remind you. Wait a few seconds or press any key to continue. Vehicle Info. ======================= Turn key on with engine off ! Press any key to con.
Page 53: Modules Present
32291L con. Calibration ID ======================= Cal ID1: 30668343 Cal ID2: 08644359 6). Press ESC button to return previous menu 5.10 Modules Present The Modules Present function allows viewing of the module IDs and communication protocols for OBD2 modules in the vehicle.
Page 54 32291L 1). Place included CD into CD-Drive. or download applications from our distributions. 2). Follow onscreen instructions on your computer to install applications. 3). Launch printing application software from the CD. 4). Connect the scanner to computer with the Serial cable supplied.
Page 55: Appendix
32291L 7. Appendix 7.1 Appendix 1-- PID List PID Abbreviation Full Name DTC_CNT DTC Stored Number DTCFRZF FUELSYS1 Fuel System 1 Status FUELSYS2 Fuel System 2 Status LOAD_PCT (%) Calculated Load Value ETC(0F) Engine Coolant Temperature ETC(0C) Engine Coolant Temperature...
Page 56 32291L PID Abbreviation Full Name O2SLOC Location of O2 Sensors O2B1S1(V) O2 Sensor Output Voltage(B1S1) SHRTFTB1S1 (%) Short Term Fuel Trim(B1S1) O2B1S2(V) O2 Sensor Output Voltage(B1S2) SHRTFTB1S2 (%) Short Term Fuel Trim(B1S2) O2B1S3(V) O2 Sensor Output Voltage(B1S3) SHRTFTB1S3 (%) Short Term Fuel Trim(B1S3)
Page 57 32291L PID Abbreviation Full Name O2SLOC Location of O2 Sensors RUNTM(sec) Time Since Engine Start MIL_DIST(km) Distance Travelled While MIL Activated MIL_DIST(mile) Distance Travelled While MIL Activated FRP(kPa) FuelRail Pres. Relative To Manifold Vacuum FRP(PSI) FuelRail Pres. Relative To Manifold Vacuum...
Page 58 32291L PID Abbreviation Full Name O2B3S2(V) O2 Sensor Voltage(wide range O2S)(B3S2) EQ_RATB4S1 Equivalence Ratio(wide range O2S)(B4S1) O2B4S1(V) O2 Sensor Voltage(wide range O2S)(B4S1) EQ_RATB4S2 Equivalence Ratio(wide range O2S)(B4S2) O2B4S2(V) O2 Sensor Voltage(wide range O2S)(B4S2) EGR_PTC (%) Commanded EGR EGR_ERR (%) EGR Error...
Page 59 32291L PID Abbreviation Full Name O2S12(mA) O2 Sensor Current(wide range O2S)(B1S2) EQ_RAT21 Equivalence Ratio(wide range O2S)(B2S1) O2S21(mA) O2 Sensor Current(wide range O2S)(B2S1) EQ_RAT22 Equivalence Ratio(wide range O2S)(B2S2) O2S22(mA) O2 Sensor Current(wide range O2S)(B2S2) EQ_RAT31 Equivalence Ratio(wide range O2S)(B3S1) O2S31(mA) O2 Sensor Current(wide range O2S)(B3S1)
Page 60: Appendix 2--In-Use Performance Tracking Data List
32291L 7.2 Appendix 2 -- In-use Performance Tracking Data List Abbreviatio Full Name Definitions OBD Monitoring Conditions Encountered OBDCOND OBD Monitoring OBDCOND Counts displays number of times that Conditions the vehicle has been operated in the Encountered Counts specified OBD monitoring conditions (general denominator).
Page 61 32291L Abbreviatio Full Name Definitions O2 Sensor Monitor Conditions O2 Sensor Monitor Encountered Counts Bank 1 displays Conditions Encountered number of times that the vehicle Counts Bank 1 has been operated in the specified O2SCOND1 oxygen sensor monitoring conditions (denominator).
Page 62 32291L Abbreviatio Full Name Definitions AIR Monitor Conditions Encountered AIRCOND AIR Monitor Counts(Secondary Air) displays number Conditions of times that the vehicle has been Encountered Counts operated in the specified AIR system (Secondary Air) monitoring conditions (denominator). EVAPCOMP EVAP Monitor...
Page 63: Warranty And Service
32291L 8. Warranty and Service 8.1 Limited One Year Warranty We warrants to its customers that this product will be free from all defects in materials and workmanshi p for a period of one (1) year from the date of the original purchase, subject to the following terms and conditions: 1).
Page 64 32291L EU-Konformitätserklärung EC Declaration of conformity Wir erklären in alleiniger Verantwortung, dass die Bauart des: We declare that the following designated product: Fehlercode-Lesegerät (Art. 32291L) Fault code reader (Art. 32291L) Certificate No. : ECE1209041C folgenden einschlägigen Bestimmungen entspricht: complies with the requirements of the:...
