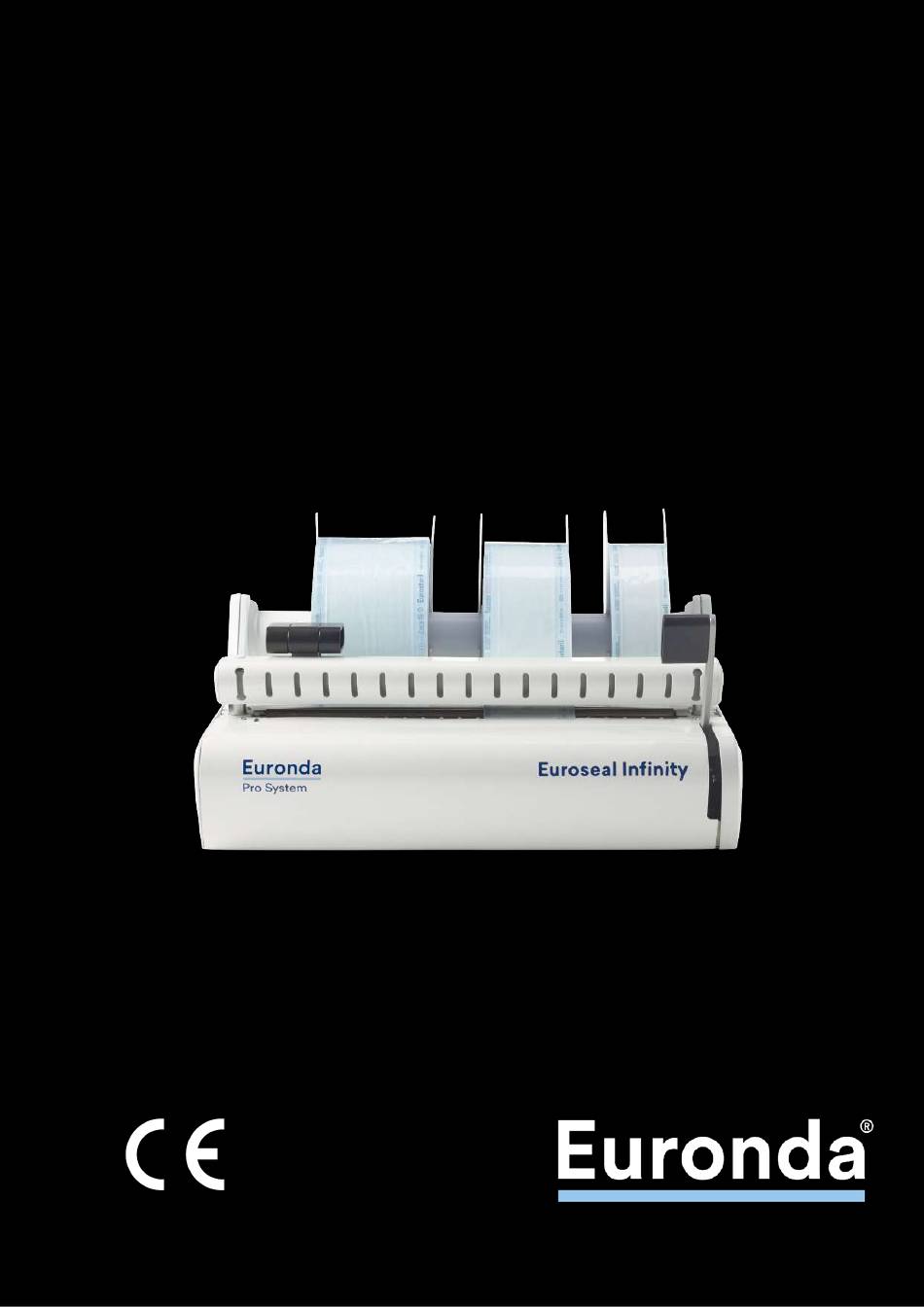

- Page 1 Instructions manual Euroseal Infinity ®...
- Page 3 Please also note that Euronda S.p.A. declines all liability for incorrect or insufficient interpretations of the translations of this manual: in the event of a dispute, only the manual written in the Italian language shall apply.
-
Page 4: Table Of Contents
Euroseal ® Infinity CONTENTS INTRODUCTION ............................... 3 GENERAL NOTES ON DELIVERY ......................3 GENERAL INSTRUCTIONS ........................3 EXPLANATION OF SYMBOLS ........................4 WARRANTY ..............................6 CHAPTER 1 ..............................7 1.1 - UNIT AND PACKAGING DIMENSIONS ..................... 7 1.2 DESCRIPTION OF CONTENTS ......................8 CHAPTER 2 .............................. -
Page 5: Introduction
All of the dimensions listed in this manual are not binding. The sketches and any other consigned documents regarding this machine are property of Euronda S.p.A., which reserves all rights. They can not be made available to any third parties. -
Page 6: Explanation Of Symbols
Euroseal ® Infinity EXPLANATION OF SYMBOLS Safety symbols on the equipment: SYMBOL DESCRIPTION CAUTION: HOT SURFACE The label of the unit bears symbols the meaning of which is shown below. RATING PLATE The following rating plate shows the main data and characteristics of the unit. This information is necessary to identify the unit when ordering spare parts and/or requesting information. - Page 7 Euroseal ® Infinity In the manual there are, in addition, symbols adjacent to a description or a note, etc. These symbols are intended to draw the attention of the reader to a particular note or explanation. Their meanings are explained below. SYMBOL DESCRIPTION IMPORTANT SAFETY INFORMATION.
-
Page 8: Warranty
Infinity WARRANTY Euronda guarantees the quality of its equipment, if used in accordance with the instructions supplied in this manual, and according to the conditions printed on the warranty certificate. The warranty starts when the unit is registered on the www.euronda.com/myeuronda website. Such registration must take place at the moment of the sale of the same to the end user. -
Page 9: Chapter 1
Euroseal ® Infinity CHAPTER 1 1.1 - UNIT AND PACKAGING DIMENSIONS Dimensions of the EUROSEAL Infinity sealing & cutting station ® Overall dimensions of packaging: A = 510 mm B = 470 mm C = 240 mm Total weight of packaging: 8 kg Euroseal Infinity_EN_rev00 –... -
Page 10: Description Of Contents
Euroseal ® Infinity 1.2 DESCRIPTION OF CONTENTS Description Quantity Sealing & Cutting station Roll-holder tube Roll stopper Mains wire Spare fuse T5A 5x20 or F10A 5x20 Instruction manual and documents Silica gel Euroseal Infinity_EN_rev00 – 04-10-2019... -
Page 11: Chapter 2
Euroseal ® Infinity CHAPTER 2 2.1 - INSTALLATION Remove the packaging and install the unit, taking the following precautions: 1. Position the sealing & cutting station on a flat surface with sufficient working space around it. 2. Do not install the machine next to sinks or anything similar in order to avoid contact with water and the short circuiting of the electrical system. - Page 12 Euroseal ® Infinity Fasten the two plates to the machine using the screws supplied with the kit. Attach the sealing & cutting station to the two screws on the wall. Place the holes of the sealing & cutting station on the screw heads (1) and push down (2) to secure it in position.
-
Page 13: Chapter 3
In case of machine operating fault, see the “troubleshooting” section of the manual for the possible causes. If you require further information or the machine needs to be repaired, contact the specialised personnel of the supplier or the technical office of Euronda S.p.A. Euroseal Infinity_EN_rev00 – 04-10-2019... -
Page 14: Electrical Connection
Have the system checked by qualified personnel. EURONDA S.p.A DECLINES ALL LIABILITY IF THE ABOVE IS NOT OBSERVED. 3.2 - ELECTRICAL CONNECTION Check that the power voltage indicated on the label at the side of the machine matches the voltage of the place of installation. -
Page 15: Chapter 4
CHAPTER 4 4.1 - SEALING & CUTTING STATION DESCRIPTION Euroseal Infinity is the latest continuous cycle and constant temperature Euronda sealing & cutting station ® with a guaranteed sealing of 12 mm. Euroseal Infinity is a machine with a modern, innovative and ®... - Page 16 Euroseal ® Infinity *The first characteristic digit indicates that the enclosure ensures the protection of people from dangerous components, preventing or limiting objects being handled by individuals from entering the enclosure; and at the same time the casing protects the equipment against the penetration of foreign solid bodies. X – not declared The second digit indicates the class of protection of the casing against harm to the equipment due to the penetration of water into the casing.
-
Page 17: Chapter 5
Euroseal ® Infinity CHAPTER 5 5.1 - INSTRUCTIONS FOR USE 1. Make sure that the device is connected to the electrical supply. Press the - A - switch at the side of the unit. The - B - LED at the front of the machine will be red while the machine is heating, and then flashing green once the optimum sealing temperature has been reached. - Page 18 Euroseal ® Infinity 3. Lower the sealing handle. Slide the cursor of the cutting blade to cut the roll tape to make the pouch (whilst the handle is down). At the end of the sealing operation, the LED becomes completely red and a sound is emitted by the machine.
-
Page 19: Roll-Holder Guide
Euroseal ® Infinity 5.2 - ROLL-HOLDER GUIDE Using the roll holder guide The roll-holder guides provided prevent the paper from falling irregularly out the sides during its unrolling from the roll. Proceed as follows: insert the roll-holder guide on the roll holder tube by applying slight pressure to snap it into place. -
Page 20: Chapter 6
ALL MAINTENANCE OPERATIONS MAY ONLY BE PERFORMED BY THE RESPONSIBLE AUTHORITY OR BY THE TECHNICIANS AUTHORISED BY THE ASSISTANCE SERVICE OF EURONDA S.p.A. Clean the external surfaces of the machine with a soft damp cloth (do not use corrosive or abrasive products), after making sure that the power cable is unplugged from the mains socket. -
Page 21: Chapter 7
CAUTION: DISCONNECT THE POWER SUPPLY BEFORE STARTING WORK. ALL EXTRAORDINARY MAINTENANCE OPERATIONS MAY ONLY BE PERFORMED BY THE RESPONSIBLE AUTHORITY OR BY THE TECHNICIANS AUTHORISED BY THE ASSISTANCE SERVICE OF EURONDA S.p.A. HAZARD: HIGH INTERNAL VOLTAGES Euroseal Infinity_EN_rev00 – 04-10-2019... -
Page 22: Chapter 8
Euroseal ® Infinity CHAPTER 8 8.1 - INSTRUCTIONS FOR DISPOSAL The EUROSEAL Infinity sealing & cutting station has been manufactured using ferrous materials, electronic ® components and plastic materials. No particular operations are required after scrapping. Do not dump the unit in an unguarded place; consign it to a waste disposal agency for scrapping. - Page 24 EURONDA S.p.A. Via dell'Artigianato, 7 - 36030 Montecchio Precalcino (VI) - ITALY Tel. (+39) 0444 656111 - Fax (+39) 0444 656199 - www.euronda.com - info@euronda.com...
