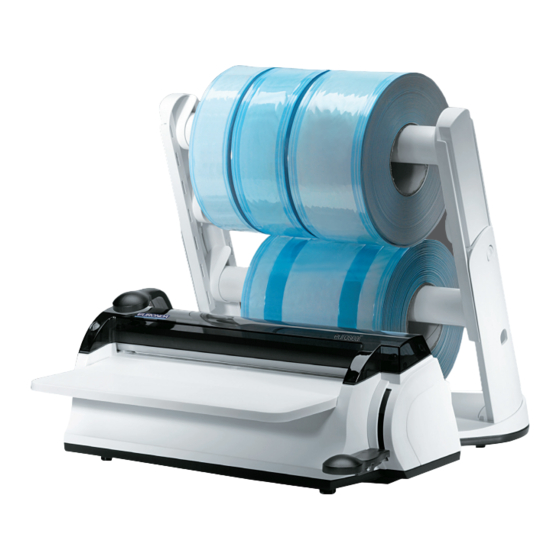

Summary of Contents for Euronda Euroseal
- Page 2 Dear Doctor, ® Thank you for the faith that you have shown us by acquiring our thermosealing machine Euroseal We want you to know that our firm is at your complete disposition to furnish information and to answer any questions concerning the operation and use of this equipment.
-
Page 3: Table Of Contents
Aquafilter ® Euroseal INDEX INTRODUCTION ............................... 3 GENERAL NOTES ON DELIVERY ......................3 GENERAL WARNINGS ..........................3 INTENDED USE ............................3 MEANING OF THE SYMBOLS ........................4 INFORMATION ABOUT THE WARRANTY ....................5 CHAPTER 1 ..............................6 1.1 - OVERALL DIMENSIONS OF THE MACHINE AND ITS PACKAGING ..........6 1.2 - DESCRIPTION OF THE CONTENTS .................... -
Page 4: Introduction
The reproduction, either total or in part, of the texts and the illustrations in this manual is forbidden. Euronda S.p.A reserves the right to improve or to make modifications to the manual or device without giving prior notice and without updating previous manuals. -
Page 5: Meaning Of The Symbols
Aquafilter ® Euroseal MEANING OF THE SYMBOLS Safety symbols on the device: SYMBOL DESCRIPTION WARNING: HOT SURFACE The following symbols appear on the device’s sticker. Their meaning is explained in the following table. SYMBOL DESCRIPTION "SERIAL NUMBER" The symbol must be accompanied by the manufacturer’s serial number. The serial number must be next to the symbol. -
Page 6: Information About The Warranty
Euroseal INFORMATION ABOUT THE WARRANTY Euronda guarantees the quality of its equipment, if used in accordance with the instructions supplied in this manual, and according to the conditions printed on the warranty certificate. The warranty is valid from the date of purchase by the client and the details can be found by registering on www.euronda.com/myeuronda... -
Page 7: Chapter 1
Aquafilter ® Euroseal CHAPTER 1 1.1 - OVERALL DIMENSIONS OF THE MACHINE AND ITS PACKAGING Overall dimensions of the thermosealing device TheEuroseal_Ing_rev02 - 17/11/14... - Page 8 Aquafilter ® Euroseal Dimensions of the package: A = 520 mm B = 400 mm C = 365 mm Total weight of the packaging: 8,5 kg TheEuroseal_Ing_rev02 - 17/11/14...
-
Page 9: Description Of The Contents
Aquafilter ® Euroseal 1.2 - DESCRIPTION OF THE CONTENTS The packaging contains the following components: Description Quantity Sealing & Cutting station Roll-holder Work surface Roll-holder tubes Roll-holder guide Mains wire Allen key Spare fuses Instruction manual Quick-start guide Warranty certificate NOTE: it is recommended to keep the original packaging for use when transporting the device. -
Page 10: Chapter 2
Aquafilter ® Euroseal CHAPTER 2 2.1 - INSTALLATION Install the product respecting the following warnings: Position the thermosealing device on a flat surface with sufficient working space around it. • Do not install the machine next to sinks or anything similar in order to avoid contact with water and the •... - Page 11 Aquafilter ® Euroseal Roll-holder tube Insert one or two of the tubes* on the roll- holder making sure that the tooth of the roll- holder slots into the slit on the tube, if necessary by turning the tube. *according to the desired use.
-
Page 12: Adjustment Of The Height Of The Roll-Holder
Aquafilter ® Euroseal 2.2 - ADJUSTMENT OF THE HEIGHT OF THE ROLL-HOLDER The thermosealing device can be used in several ways: A – with the roll-holder lowered with one tube B – with the roll-holder extended with one or two tubes... -
Page 13: Istructions For Wall Mounting
Aquafilter ® Euroseal 2.3 - ISTRUCTIONS FOR WALL MOUNTING The thermosealing device has been designed to be used in several ways: sealing & cutting station on a flat surface sealing & cutting station on a flat surface, roll-holder on a •... - Page 14 Aquafilter ® Euroseal For wall-mounting the roll-holder, follow the instructions below. Fix two dowel screws of diameter 6 (screw head: max. diameter 9,5 mm, main part of screw: max diameter of 5 mm) with a wheel base of 213 mm.
-
Page 15: Safety
Aquafilter ® Euroseal 2.4 - SAFETY Before using your thermosealing device, please read the following safety information carefully. Non compliance could cause accidents or damage to the device. WARNING: Do not place fingers near the sealing area when the machine is turned on or after it has been turned off. -
Page 16: Electric Connection
• is suitable for the power of the device indicated on the product sticker. If in doubt, consult a qualified electrician.. THE NON COMPLIANCE WITH WHAT IS WRITTEN ABOVE RELEASES EURONDA S.P.A. OF ALL RESPONSIBILITY 2.5 - ELECTRIC CONNECTION Check that the voltage indicated on the product label corresponds to that available in the place of installation. -
Page 17: Chapter 3
Aquafilter ® Euroseal CHAPTER 3 3.1 - TECHNICAL SPECIFICATIONS Voltage 200 / 240 V 100 / 120 V Number of phases Power supply 50 / 60 Hz 50 / 60 Hz Power 100 W 100 W Isolation class I / IPX0... -
Page 18: Chapter 4
Aquafilter ® Euroseal CHAPTER 4 4.1 - ISTRUCTIONS FOR USE Make sure that the device is connected to the electrical supply. Press the power switch on the back of the machine. Power switch The led light on the front of the device begins Led light to flash orange whilst the device is heating up. - Page 19 Aquafilter ® Euroseal When both roll-holder tubes are used A: insert the rolls on the upper tube with the roll coming from underneath. B: insert the rolls on the lower tube with the roll coming from above. Pull the roll to the desired length and lower the sealing handle.
-
Page 20: Roll-Holder Guide
Aquafilter ® Euroseal WARNING: if the operator does not lift the sealing handle after sealing, the resistor automatically turns itself off so as not to burn the bag. In this situation the led flashes orange and the alarm sounds intermittently. -
Page 21: Chapter 5
Before re-using the device, make sure it is completely dry. 5.2 - EXTRAORDINARY MAINTENANCE The machine does not require any standard maintenance. ALL EXTRAORDINARY MAINTENACE OPERATIONS MUST ONLY BE CARRIED OUT BY THE TECHNICIANS OF SERVICE GROUPS AUTHORIZED BY EURONDA S.P.A.. TheEuroseal_Ing_rev02 - 17/11/14... -
Page 22: Trouble Shooting
Aquafilter ® Euroseal 5.3 - TROUBLE SHOOTING Signals to the operator SIGNAL CAUSE SOLUTION The led flashes orange The machine is heating and the Wait for the fixed green light temperature is not sufficient for correct when the machine is ready to sealing. - Page 23 Aquafilter ® Euroseal EURONDA S.p.A. via dell'Artigianato, 7 - 36030 Montecchio Precalcino (VI) - ITALY Tel. +39 0445 329811 - Fax +39 0445 865246 - Internet: www.euronda.com - E-mail: info@euronda.com TheEuroseal_Ing_rev02 - 17/11/14...
