Summary of Contents for Kidde K10SCO

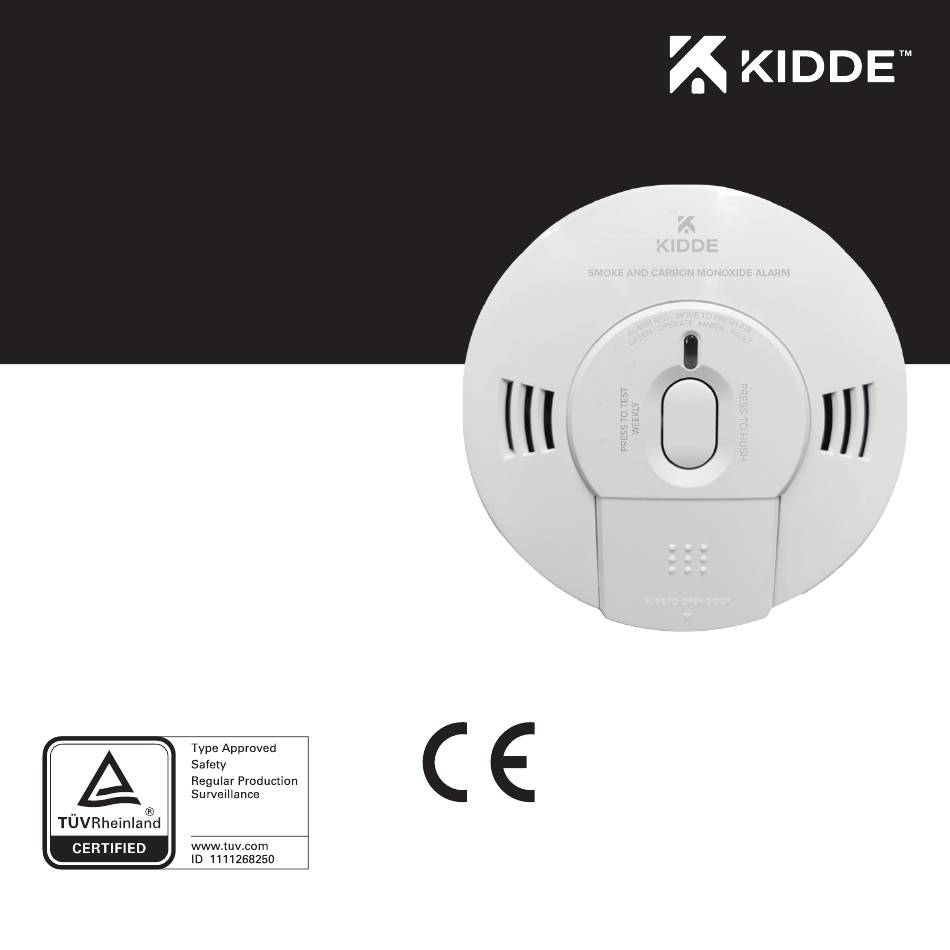

- Page 1 User Guide Combination Photoelectric Smoke & Carbon Monoxide Alarm, with voice. Model K10SCO Battery powered • 10-Year alarm life • • Voice alarm plus prompting 1008 102.0011 EN14604:2005/AC:2008 EN 50291-1:2018 P/N: 2598-7201-00...
- Page 2 Thank You for Purchasing this Kidde Alarm Powered by two AA batteries, this model features a voice message system and Hush to temporarily silence nuisance alarms. Teach children how to respond to the alarm and that they should never play with the unit. This alarm is designed to detect both smoke and carbon monoxide from any source of combustion in a residential environment.
-
Page 3: Table Of Contents
Contents 1. Smoke Alarm: What To Do When the Alarm Sounds......................4 2. Carbon Monoxide Alarm: What To Do When the Alarm Sounds..................5 Other Alarm Visual and Audible Indicators............................ 6 4. Troubleshooting Guide....................................7 5. Introduction, Product Features and Specifications........................8 Limitations of Smoke and CO Alarms..............................10 Recommended Locations for Alarms..............................12 8. -
Page 4: Smoke Alarm: What To Do When The Alarm Sounds
1. Smoke Alarm: What To Do When the Alarm Sounds The smoke alarm pattern is three long beeps with voice “Fire! Fire!” repeating. The red LED blinks in sync with beep pattern. The smoke alarm takes precedence when both smoke and carbon monoxide are present. •... -
Page 5: Carbon Monoxide Alarm: What To Do When The Alarm Sounds
2. Carbon Monoxide Alarm: What To Do When the Alarm Sounds The carbon monoxide (CO) alarm pattern is four quick beeps with voice “Warning! Carbon Monoxide” repeating every 5 seconds. The red LED blinks in sync with beep pattern. wARNING: CARboN MoNoxIde AlARM ACtIvAtIoN INdICAtes the PReseNCe of CARboN MoNoxIde (Co) At hIGh CoNCeNtRAtIoNs whICh CAN kIll yoU. -
Page 6: Other Alarm Visual And Audible Indicators
3. Other Alarm Visual and Audible Indicators Operational Mode Visual Indications Audible Indications Action/Note: Normal (standby) Green LED blinks approx every 30 sec. test (button press • Test: Red LED blinks in sync with • “Push Test Button” when the unit Perform button press once when no alarm beep pattern. -
Page 7: Troubleshooting Guide
4. Troubleshooting Guide Trouble Condition Visual Indications Audible Indications Action: low battery Amber LED blinks Chirp every 60 sec. * Push button once to silence for 24 hrs. every 60 sec. In first hour: voice every Note: 30 days after Low Battery begins, the 60 sec: “Low Battery.”... -
Page 8: Introduction, Product Features And Specifications
5. Introduction, Product Features and Specifications Introduction This alarm detects products of combustion using photoelectric technology, and carbon monoxide using an electrochemical cell. Many times throughout this User Guide, we will refer to Carbon Monoxide as “CO.” Ten (10) years after the unit was installed, this unit will automatically alert you that it is time to replace the unit. This is called “End of Unit Life”... - Page 9 Product View Front Test/Reset/Hush Red LED, Green LED, Amber LED Button Voice Speaker Alarm Sounder Battery Compartment...
-
Page 10: Limitations Of Smoke And Co Alarms
6. Limitations of Smoke and CO Alarms wARNING: PleAse ReAd CARefUlly ANd thoRoUGhly lIMItAtIoNs of sMoke AlARMs • Life safety from fire in residential occupancies is based primarily on early notification to occupants of the need to escape, followed by the appropriate egress actions by those occupants. •... - Page 11 wARNING: PleAse ReAd CARefUlly ANd thoRoUGhly lIMItAtIoNs of Co AlARMs • IMPORTANT: This alarm is designed to detect carbon monoxide gas from ANY source of combustion. It is NOT designed to detect any other gas. This alarm has not been tested specifically for use in caravans or boats.
-
Page 12: Recommended Locations For Alarms
7. Recommended Locations for Alarms 7.1 ReCoMMeNded loCAtIoNs foR sMoke AlARMs Note: According to BS 5839-6, for optimal fire protection: “The greatest benefit to life safety is given by a full-coverage system. Such a system will give the earliest practicable warning of fire to occupants, wherever ignition occurs.”... - Page 13 • When mounting an alarm on the ceiling, locate it at a minimum of 300 mm from the side wall or light fitting. (Figure 7-A) • Where structural beams create an obstacle to flow of smoke across a ceiling: If the beam is less than 600 mm in depth, install an alarm on the underside of the beam.
- Page 14 300 mm Garage Bathroom Bedroom CEILING Bedroom Dining Kitchen 150 mm Bedroom ACCEPTABLE HERE NEVER HERE 300 mm Living Room Not within 1 m of SINGLE FLOOR PLAN appliances (see ACCEPTABLE HERE Locations to Avoid section). Heat Alarm Loft Conversion (Do not fit combo CO or Smoke Alarms in Garage)
-
Page 15: Locations To Avoid
8. Locations to Avoid • In the garage. Products of combustion are present when you start your motor vehicle. • Do not install smoke alarms on the walls if the room or hallway exceeds 10 m in both length and breadth, or exceeds an area of 50 m •... -
Page 16: Installation
Recessed mounting impedes smoke entry into the smoke chamber, which may prevent the alarm from sounding in a timely manner. This could endanger the lives of occupants in the residence. Kidde alarms are designed, tested and certified for wall (if applicable) and ceiling surface mount only. Without agency research, we have no fire test data to support that alarms will perform as required when installed in a recessed manner. - Page 17 wARNING: fAIlURe to PRoPeRly INstAll ANd ACtIvAte thIs AlARM wIll PReveNt PRoPeR oPeRAtIoN of thIs AlARM ANd wIll PReveNt Its ResPoNse to fIRe hAZARds. Smoke alarms are not to be used with detector guards unless the combination (alarm and detector guard) has been evaluated and found suitable for that purpose.
-
Page 18: Operation And Testing
10. Operation and Testing operation The alarm is operating once it is activated and testing is complete (see “TESTING” below). When products of combustion (smoke or CO) are sensed, the unit sounds a loud alarm with voice messages. See Sections 1 and 2 for alarm signal descriptions. -
Page 19: Recognizing Nuisance Alarms
11. Recognizing Nuisance Alarms smoke Nuisance hUsh: If you know why the alarm is sounding, and you can verify that it is not a life threatening situation, you can push the button on the alarming unit to silence the alarm for 10 minutes. After the Hush period, the smoke alarm will automatically reset and sound the alarm if particles of combustion are still present. -
Page 20: Battery
12. Battery This alarm is powered by 2 AA batteries. Under normal operating conditions, the batteries will last a minimum of one year. NOTE: Constant exposures to extreme temperatures and humidities may affect battery life. wARNING: do Not AtteMPt to oPeN the AlARM foR ANy ReAsoN! do Not tRy to RePAIR the AlARM yoURself. -
Page 21: General Carbon Monoxide (Co) Information
low battery This alarm is equipped with a low battery monitor circuit. If the battery capacity is nearing the point where it can no longer provide adequate power for all alarm functions, the low battery condition will occur. See Troubleshooting Guide. The batteries must be replaced within 30 days of the first occurrence of the “Low Battery Warning”... - Page 22 NOTE: Young children, elderly and pets are more susceptible to the dangers of CO. NOTE: Your Kidde alarm is designed to detect CO gas. It is not designed to detect other gas such as natural gas. NOTE: This product is intended for use in ordinary family homes. It is not designed to measure compliance with occupational safety and the HSE.
-
Page 23: Cleaning Your Alarm
14. Cleaning Your Alarm your Alarm should be Cleaned at least once a year You can clean the interior of your alarm (sensing chamber) by using compressed air or a vacuum cleaner hose and blowing or vacuuming through the openings around the perimeter of the alarm. The outside of the alarm can be wiped with a damp cloth. -
Page 24: Good Safety Habits
15. Good Safety Habits develop and Practice a Plan of escape in the event of a fire Prepare and practice a home escape plan twice a year, including drills at night. Know two ways out of every room (door & window) and identify a meeting place outside the home where everyone will gather once they have exited the residence. -
Page 25: Service And Warranty
KIDDE SAFETY EUROPE LTD warrants to the original purchaser that the enclosed alarm will be free from defects in material and workmanship or design under normal use and service for a period of ten years from the date of purchase. - Page 26 Kidde Helpline (UK) 0800 917 0722 / (Ireland) 1800 818 601 Emergency Numbers: Gas Emergency Services 0800 111 999 HETAS (Solid Fuel Emergency) 0845 634 5626 Oftec (oil) 0845 658 5080 Manufactured By: Walter Kidde Portable Equipment Inc. 1016 Corporate Park Drive, Mebane, NC 27302, USA Telephone: 0800 917 0722 www.kiddesafetyeurope.co.uk...
