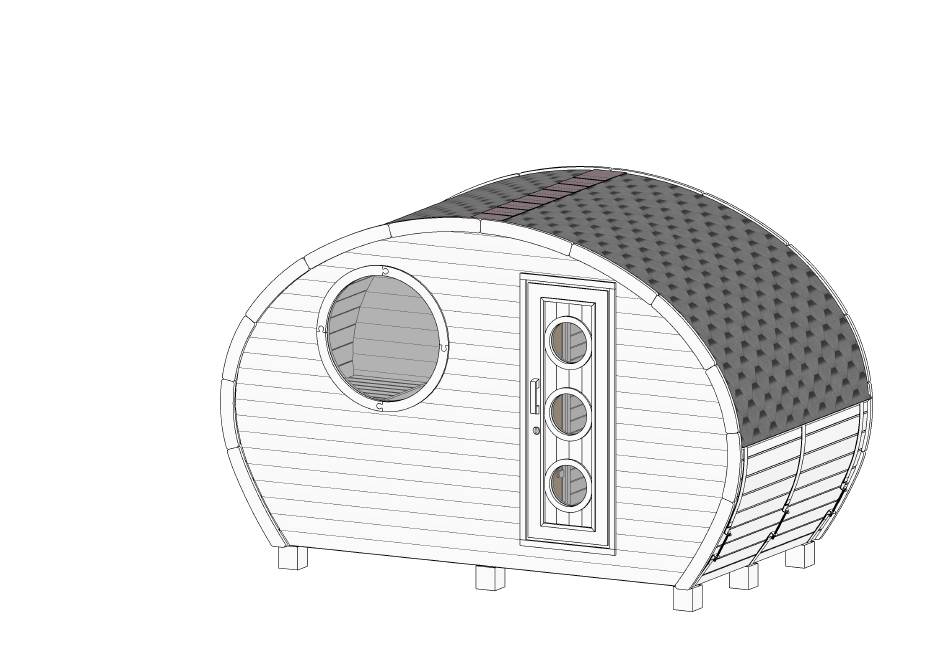

- Page 1 Sauna "Frodo" 4x 1,95 Please read the whole manual before You start. All given measurements are in millimeters. (FRO 004)
- Page 2 Sauna "Frodo" 4 x 1,95 Details list 1. (FRO 004)
- Page 3 Sauna "Frodo" 4 x 1,95 Details list 2. 11 m ~1kg x115 x310 (FRO 004)
- Page 4 Frodo 195 Back side 3120 Top and bottom on same level. 1560 1560 Front side Same line mm=mm DET 4 DET 1 3xDET A1 DET A1 6x H DET 1 DET A1 Same line (FRO 004)
- Page 5 Frodo 195 6x M NB! Fix side boards into the DET 1. 2xDET 3a 6x M Place DET 1 in the middle 9x M of two side beams. Use waterlevel. 2xDET 1 Fix also all beams from top. Be careful that...
- Page 6 Frodo 195 2xDET 4b Not longer than 2xDET 4c bottom board. Cut boards from pallet. 18x I 2xDET 4a 4x M Cut some boards from 2xDET 3c Drill holes Ø4mm pallet to support walls, Fix temporarily before screws. if necessary.
- Page 7 Frodo 195 Both sides. Regular wood X= 7-8 mm. Remove Thermo wood X= 3-4 mm. DET 3c See next page! DET 3c (FRO 004)
- Page 8 Frodo 195 DET 3c DET 3c Lift nose slightly up before installing combined detail. Glue Use wood glue between boards 5x H(M) Drill holes Ø4mm before screws. (FRO 004)
- Page 9 Frodo 195 DET A2 DET B DET A2 ~240 mm DET A1 2x DET E1 4x DET D 2x DET C DET A2 2x DET E2 During assembly and retightening the threaded rods, use oil (Würth HPS 1400 or similar) to avoid "cold welding"...
- Page 10 Frodo 195 Remove all NB! If Your sauna is from screws! thermowood, please don´t remove screws. 2x DET A2 Remove all Proceed the same way as screws! described on previous page. Measure the door and add Mark door opening extra 10 mm. to each side!
- Page 11 Frodo 195 Remove all brackets 75x H 5x H DET 7 Fix screws over the one board, diagonally in every board. 28xDET 7 1xDET 7a (FRO 004)
- Page 12 Frodo 195 Mark window opening 1xDET 10 2xDET 10a 2xDET 10b r=499 18x J 38x J Cut window opening, Drill holes Ø3 mm. 1xDET 12a follow the guidelines 1xDET 12b before screws. 8x I (FRO 004)
- Page 13 Frodo 195 1xDET 15b 13x H 4xDET 15a 2xDET 15 4x H 4x H (FRO 004)
- Page 14 Frodo 195 1xDET W4 Sauna midpoint 8x H 1xDET 17 14x H Sauna midpoint 4xDET W3 1xDET W2 1xDET W1 5x J DET W12 DET W10 10x J 2xDET 17 DET W12 DET W11 (FRO 004)
- Page 15 Frodo 195 Saunaroom 1xDET 20a 5xDET 20 2x J 10x I 4x I 2x J 15 mm. from wall 6x I 15 mm. from wall 2xDET L 1xDET 20b 2xDET L Place the sauna heater. Check heater manual! 2xDET F...
- Page 16 Frodo 195 Push door up! 2xDET 11b 1xDET 11 4xDET 11a Cut on right size Drill holes Ø4 mm. before screws. 10x M 30x J 2xDET 11c Cut on right size 1xDET 15 4x H 1xDET 15b 7x H Floor grates...
- Page 17 Frodo 195 8x H 2xDET 21 DET N NB! Before roof shingles, install underlay felt. Check underlay felt installation manual on extra pages. ~10mm Check also roof shingles installation manual inside package. (FRO 004)
- Page 18 Frodo 195 Refract DET N into 3 pieces. Shingles overlap on top DET N Cut and use DET O it other end. Check also roof shingles installation manual inside package. 4xDET 25a 4xDET 25a Start from the top! 2xDET 25b...
- Page 19 Underlay felt installation manual. Check also underlay installation Bitumen strip is against manual inside the package! the previous layer. Turn end to Clamp end the edge. to the edge. Cut off the parts that extend over the edge. Cut off (FRO 004)
