Interflex FRODO 300 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
FRODO 300
( FR101 )

Advertisement

loading
Need help?

Need help?

Do you have a question about the FRODO 300 and is the answer not in the manual?

Questions and answers

Related Manuals for Interflex FRODO 300

Summary of Contents for Interflex FRODO 300

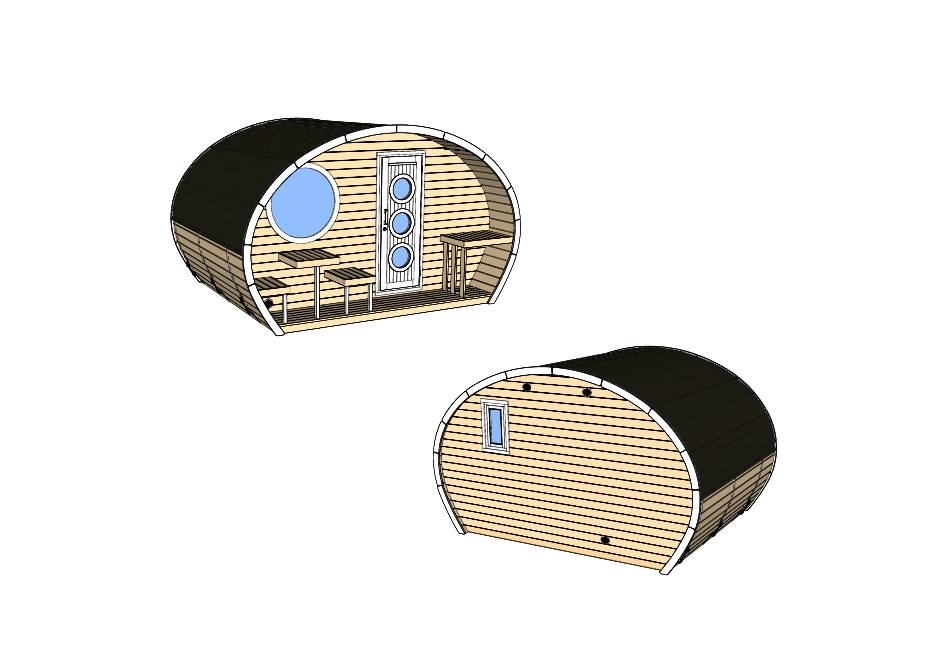

  • Page 1 FRODO 300 ( FR101 )
  • Page 2 FRODO 300 Details list nr.1 8a/9a x1/ x1 8b/9b x1/ x1 8c/9c x1/ x1 Optional! 2160*56*42 660*87*18 930*87*18 930*44*44 750*44*44 2300*87*18 2300*56*42 400*44*44 2300*90*18 930*56*42 348*56*42 660*56*42 456*56*42 2295*980*72 810*800*72 2295*800*72 100*44*44 1125*500*72 300*44*44 ( FR101 )
  • Page 3 FRODO 300 Details list nr.2 1095*44*44 2295*44*44 2255*420*65 L= 16,3 m x7 package 2295*380*62 1175*380*62 595*595*9 1200*595*9 580*90*18 715*88*28 600*810 570*820*88 Optional! ~1,5kg ( FR101 ) x150 x405...

  • Page 4: Table Of Contents

    Back FRODO 300 3130 3120 1127 2787 1150 1560 1560 10 x M 3264 Front 1x DET 5 96 x H DET 6 1x DET 1 same level 6x DET 3 32x DET 7 1x DET 6 5x DET 4...
  • Page 5 FRODO 300 DET 9c DET 8c DET 9b DET 8b DET 8a DET 9a NB! Cut a few boards from the base 12 x I to temporarily support and secure the walls!! ( FR101 )
  • Page 6 FRODO 300 Wall and floor midpoint NB! Cut some boards from pallet, to support and fix walls if necessary! DET 9a/9b/9C DET 8a/8b/8C Use DET 10/ DET 11 temporarily if necessary 4 x H ( FR101 )

  • Page 7: Det

    FRODO 300 12 x H Remove 6x DET 10 12 x H 40 x H 6x DET 11 21x DET 10 20x DET 11 NB! Don`t leave space, if using thermal wood!!! See Page 4A ( FR101 )

  • Page 8: Det 11

    FRODO 300 Glue Use wood glue between boards DET 10 5 x H (M) DET 11 DET 10 DET 11 ( FR101 )

  • Page 9: Det

    FRODO 300 DET B2/DET B1 4x DET B2 8x DET C 16x DET D 16x DET E 16x DET B Remove all screws Use strap During assembly and retightening the threaded rods, use oil Remove all screws (Würth HPS 1400 or similar) and use them to avoid "cold welding"...

  • Page 10: Det

    FRODO 300 Use waterlevel for Place doors installation. from inside. Place door from inside. DET 13 Measure the door and add 10 mm to each side! min 50 mm Mark openings and cut out. 10+X+10 18 x J ~850 2x DET 14b...
  • Page 11 FRODO 300 Use waterlevel for installation. R 497 Place window from outside. Measure the window and add 10 mm around! Mark openings and cut out. ~870 1x DET 15a 1x DET 15b 6 x I 5 x I Sauna 1x DET 16...
  • Page 12 FRODO 300 2 x DET F 1570 6 x K Sauna Make 1 holes midpoint Ø110 Make 3 holes Ø110 2 x DET G 4 x DET F 18 x K Sauna midpoint ( FR101 )
  • Page 13 FRODO 300 DET 21a 4xDET 22 12 x H DET 20a 4xDET 23 30 x H 1 x DET 17d 16 x H 1 x DET 17f 2 x DET 19c 2 x DET 17e sauna midpoint 5 x DET 17c...
  • Page 14 FRODO 300 NB! Vertically fix screws DET 38a in every board. 20 x J Measure the window and add 10 mm to each side! Mark openings and cut out. 20 x J 2xDET 38b 10+x+10 Midpoint of sauna 2xDET 38c...
  • Page 15 FRODO 300 DET 21b DET 20b 1 x DET 19b 2xDET 22 1 x DET 19c 10 x H 8 x H 6 x DET 18c 8 x H 2 x DET 18c - cut to size! 44 x DET 18b...
  • Page 16 FRODO 300 8 x H 8 x H DET 26a DET 27 5 x H DET 24a 8 x H DET 25a DET 26b 2xDET 26c 6 x H DET 24b DET 25b 10 x H ( FR101 )
  • Page 17 FRODO 300 2xDET 30a 2x DET 29 4 x J 4 x J DET 30b 2x DET 29 4 x J 7 x J DET 30b 15 mm from wall 6 x J 5x DET 28 10 x J ( FR101 )
  • Page 18 FRODO 300 1x DET 37a 2x DET 37b 16 x J Use waterlevel 1x DET 37a 2x DET 37b DET 31 DET 36 10 x M 2xDET 37c ( FR101 )
  • Page 19 FRODO 300 ~828 from floor DET 32c 10 x H DET 33a 8 x H DET 33b DET 33c 3x DET 32b DET 32a 3 x H 8 x H 3x DET 34a DET 34b ~470 ( FR101 )
  • Page 20 FRODO 300 DET N DET O NB! Check also shingles installation manual inside shingles package. DET P Cut and use it on ohter side 22 x H NB! Before roof shingles, DET 35d install underlay felt. Check underlay felt installation DET 35c manual on extra pages.
  • Page 21 Self-adhesive UNDERLAY FELT INSTALLATION MANUAL. The temperature during installation should be a minimum of Check also underlay felt +10°C. In colder conditions, a hot air gun should be used. installation manual Hot bitumen or torching must not be used when inside the package.
  • Page 22 Cut off the Turn on parts that extend the edge. over the edge. Use hot air gun, Use clout Place this if necessary. nails only sheet first. on bitumen side. Cut off Before placing underlay felt, remove bottom film. Use hot air gun, if necessary.
  • Page 23 Before placing underlay felt, remove bottom film. Cut off Cut off the Turn on parts that extend the edge. over the edge. Continue with roof shingles. ( FR101 )
