Continental Refrigerator CD-170 Operation & Maintenance Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

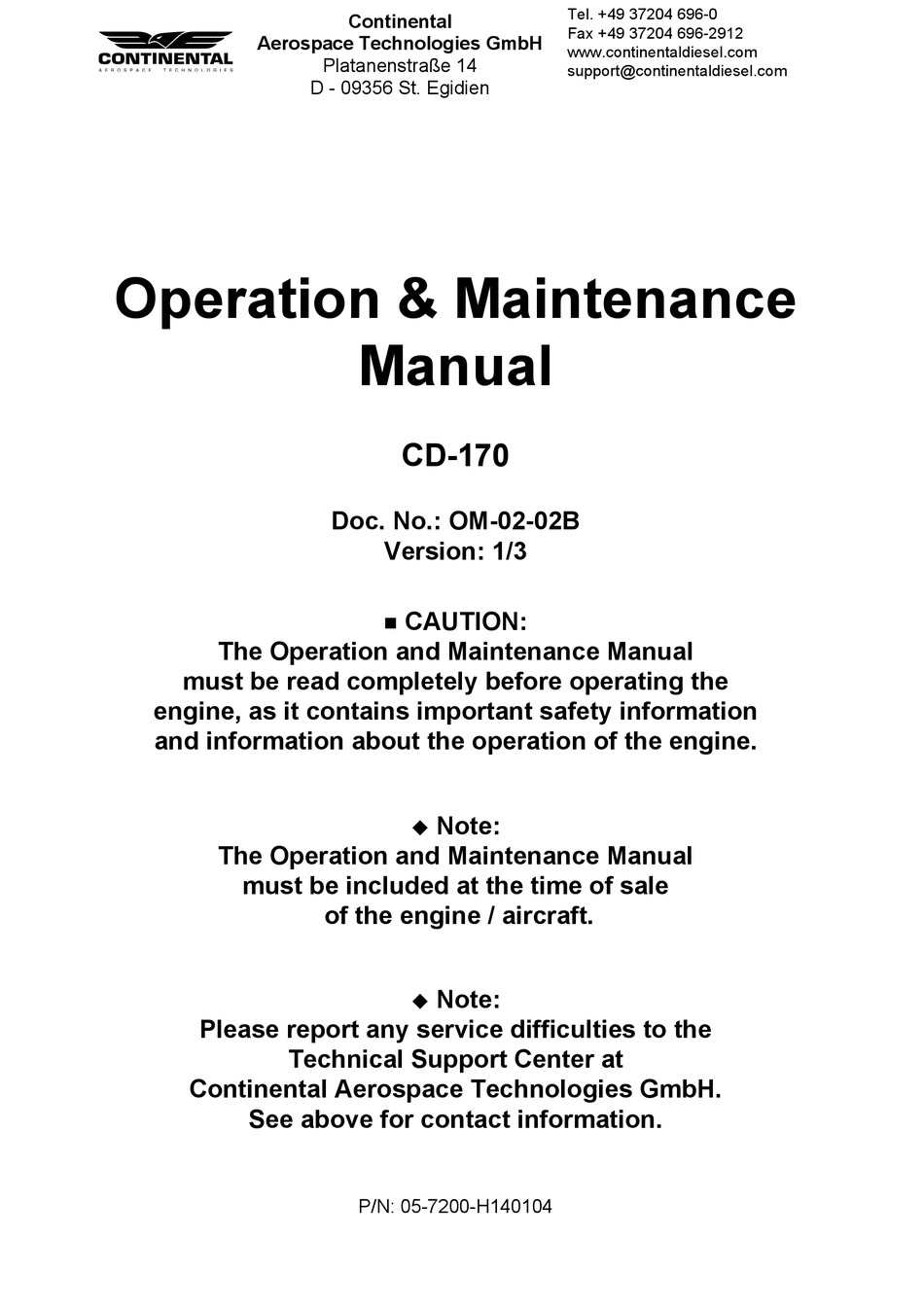

Aerospace Technologies GmbH
Operation & Maintenance
The Operation and Maintenance Manual
must be read completely before operating the
engine, as it contains important safety information
and information about the operation of the engine.
The Operation and Maintenance Manual
must be included at the time of sale
Please report any service difficulties to the
Continental Aerospace Technologies GmbH.
See above for contact information.
Continental
Platanenstraße 14
D - 09356 St. Egidien
Operation & Maintenance Manual - Issue 1 / Revision -
Manual
CD-170
Doc. No.: OM-02-02B
Version: 1/3
CAUTION:
Note:
of the engine / aircraft.
Note:
Technical Support Center at
P/N: 05-7200-H140104
Tel. +49 37204 696-0
Fax +49 37204 696-2912
www.continentaldiesel.com
support@continentaldiesel.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD-170 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Continental Refrigerator CD-170

Summary of Contents for Continental Refrigerator CD-170

  • Page 1 Platanenstraße 14 support@continentaldiesel.com D - 09356 St. Egidien Operation & Maintenance Manual - Issue 1 / Revision - Operation & Maintenance Manual CD-170 Doc. No.: OM-02-02B Version: 1/3 CAUTION:  The Operation and Maintenance Manual must be read completely before operating the engine, as it contains important safety information and information about the operation of the engine.
  • Page 2 This page intentionally left blank...
  • Page 3 Operation & Maintenance Manual CD-170 OM-02-02B Table of Contents Chapter Description Page Table of Contents ..................1 List of Figures .....................1 List of Revisions ..................1 List of applicable Chapters .................2 Preliminary Remarks ..................3 Introduction ....................1 Accompanying applicable Document ............1 Engine Identification ...................2 Copyright ©...
  • Page 4 Operation & Maintenance Manual CD-170 OM-02-02B Technical Data ..................1 Dimensions and Weights ................1 Performance Data ..................1 Operational Data ..................2 Operation Limits ..................3 3.4.1 Engine Flame Out in Cold Weather Condition .......4 Fuel / Oil / Coolant ..................5 Power Curve ....................7 Operation ....................1...
  • Page 5 Operation & Maintenance Manual CD-170 OM-02-02B Maintenance Schedules ................1 "Pre-flight Check" ..................2 Maintenance Actions based on Operating Hours ........2 6.2.1 After the 3rd - 6th operating hour ..........3 6.2.2 Every 100 operating hours ............4 6.2.3 Every 200 operating hours ............5 6.2.4...
  • Page 6 Operation & Maintenance Manual CD-170 OM-02-02B Emergency Procedures ................1 Power Loss ....................1 FADEC Operation ..................1 Engine System Malfunction ................2 7.3.1 One FADEC light flashing ..............2 7.3.2 Both FADEC lights flashing ............3 7.3.3 Abnormal engine behavior .............3 Restart after Engine Failure ...............4 Fire in the Engine Compartment ..............4...

  • Page 7: Table Of Contents

    Fig. 1.1 Explanation of the chapter numbering system Fig. 1.1 Engine identification Fig. 1.2 Preservation of the engine Gearbox front view of CD-170  Fig. 2.1 (dimensions in mm) Fig. 2.2 Air intake side view of CD-170 (dimensions in mm) Fig.
  • Page 8 Operation & Maintenance Manual CD-170 OM-02-02B Fig. 6.29 FADEC read-out - Choice screen Fig. 6.30 FADEC read-out - Maintenance data download Fig. 6.31 FADEC read-out - Enter engine specifications Fig. 6.32 FADEC read-out - Perform engine ground run Fig. 6.33 FADEC read-out - Downloading Fig.
  • Page 9 Operation & Maintenance Manual CD-170 OM-02-02B List of Revisions Issue/ Chapter Remark Date Approved by Revision Issue 1 / Revision - 02-OM-00-02 03.08.2020 Hartung 02-OM-01-02 03.08.2020 Hartung 02-OM-02-02 03.08.2020 Hartung Adapted, based on 02-OM-03-02 03.08.2020 Hartung version 02-OM-04-02 03.08.2020 Hartung...
  • Page 10 Operation & Maintenance Manual CD-170 OM-02-02B List of applicable Chapters Document No. Document Issue Revision Date 02-OM-00-02 Lists 21.04.2023 02-OM-01-02 Introduction 03.08.2020 02-OM-02-02 Description and Dimensions of 06.10.2022 the Engine 02-OM-03-02 Technical Data 06.10.2022 02-OM-04-02 Operation 06.10.2022 02-OM-05-02 Airworthiness Limitations 03.08.2020...

  • Page 11: Fig. 1.1 Explanation Of The Chapter Numbering System
