kowatec miniBot Manual

Hide thumbs Also See for miniBot:

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
miniBot
miniBot

Advertisement

loading
Need help?

Need help?

Do you have a question about the miniBot and is the answer not in the manual?

Questions and answers

Related Manuals for kowatec miniBot

Summary of Contents for kowatec miniBot

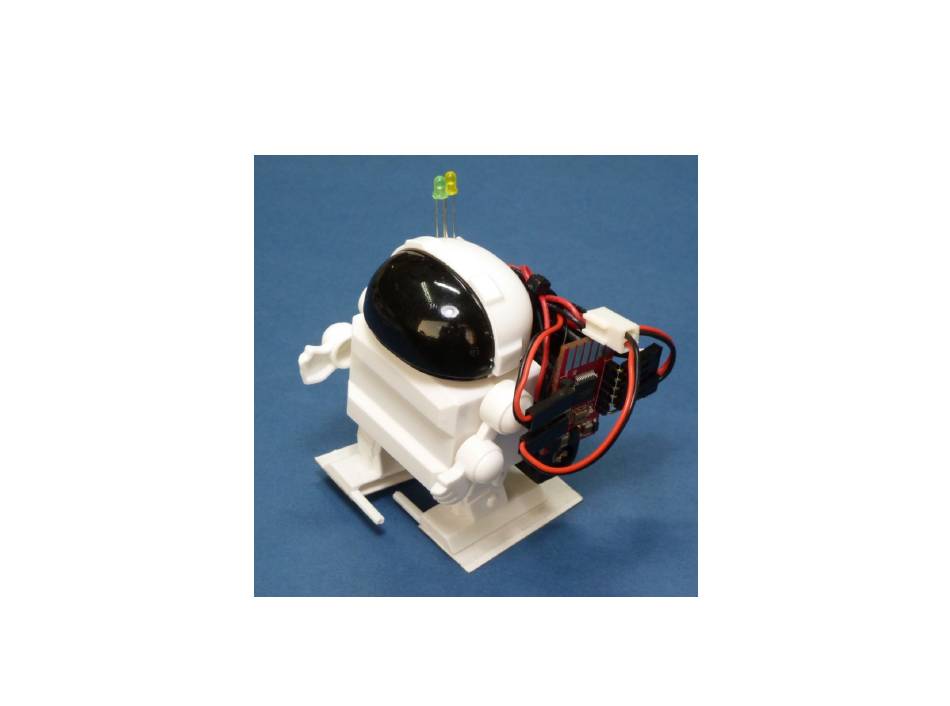

  • Page 1 All manuals and user guides at all-guides.com miniBot miniBot...
  • Page 2 All manuals and user guides at all-guides.com Tools...
  • Page 3 All manuals and user guides at all-guides.com Parts 3 x AAA Battery Cable for LED and holder Legs Head Shoulders Body Motor Feet...
  • Page 4 All manuals and user guides at all-guides.com Assembling Right Shoulder Left Shoulder...
  • Page 5 All manuals and user guides at all-guides.com LEGS 2. Right Leg Front Back Back 1. Left Leg...
  • Page 6 All manuals and user guides at all-guides.com Body Back Cover Snap the top end of the leg on the inside slot of Back view the back cover...
  • Page 7 All manuals and user guides at all-guides.com Snap the legs completely into the back body cover Take the cable of the motor and insert into the hole on the back cover...
  • Page 8 All manuals and user guides at all-guides.com Repeat for left shoulder Snap the right shoulder to the body...
  • Page 9 All manuals and user guides at all-guides.com Secure the body with screws Place the front over to the body. Place the head...
  • Page 10 All manuals and user guides at all-guides.com Glue the battery holder on the back of the body. Make sure it does not touch the head. Make sure the motor cables come out from here...
  • Page 11 All manuals and user guides at all-guides.com Put double-side tape on the EV8 and place it on the short edge of the battery holder. Make sure the golden fingers are completely above the battery holder.
  • Page 12 All manuals and user guides at all-guides.com Peel off the cables...
  • Page 13 All manuals and user guides at all-guides.com Combine the red cable of the motor and the red peel-off cable together. Cut a piece of black tape and tape the cables together. Then connect the joined cable to the pin on the EV8.
  • Page 14 All manuals and user guides at all-guides.com Repeat the step with the black cable of the motor and the black peel-off cable. Then connect the joined cable to the pin on the EV8.
  • Page 15 All manuals and user guides at all-guides.com Use double-sided tape to tape the LED cable to the long edge of the battery holder and opposite side of the EV8. Use double-sided tape to tape the LED cable to long edge of the battert holder and oppisite side of the EV8.
  • Page 16 All manuals and user guides at all-guides.com Connect the power cable to the pin on the EV8. Pay attention to the color order of the cable.
  • Page 17 All manuals and user guides at all-guides.com Use double-sided tape to tape the feet. Make sure the feet are in-line.
  • Page 18 All manuals and user guides at all-guides.com Tie up all the cables.
  • Page 19 All manuals and user guides at all-guides.com Place the LEDs in the white connector. Insert the short pin of each LED together in the middle hole. Then bend the LED upward.
  • Page 20 All manuals and user guides at all-guides.com If you have a EV8-Writer, connect the Writer to the EV8. Connect the USB cable to the computer and download Then insert the batteries. the program.
  • Page 21 All manuals and user guides at all-guides.com MiniBot Controlled MiniBot Controlled by by Remote Control Remote Control...
  • Page 22 All manuals and user guides at all-guides.com Prepare the resistor as shown below.
  • Page 23 All manuals and user guides at all-guides.com Remove the battery and the LEDs. Insert the resistor as shown above.
  • Page 24 All manuals and user guides at all-guides.com Insert the IR LED next to the resistor. Insert the short pin of the IR LED in the middle hole of the white connector Bend the IR LED upward.
  • Page 25 All manuals and user guides at all-guides.com Connect the EV8-Writer to the EV8. Connect the USB cable to the computer and download the program. Then insert the batteries.
  • Page 26 All manuals and user guides at all-guides.com MiniBot Controlled by IR LED MiniBot Controlled by IR LED www.kowatec.com robots@kowatec.com...
