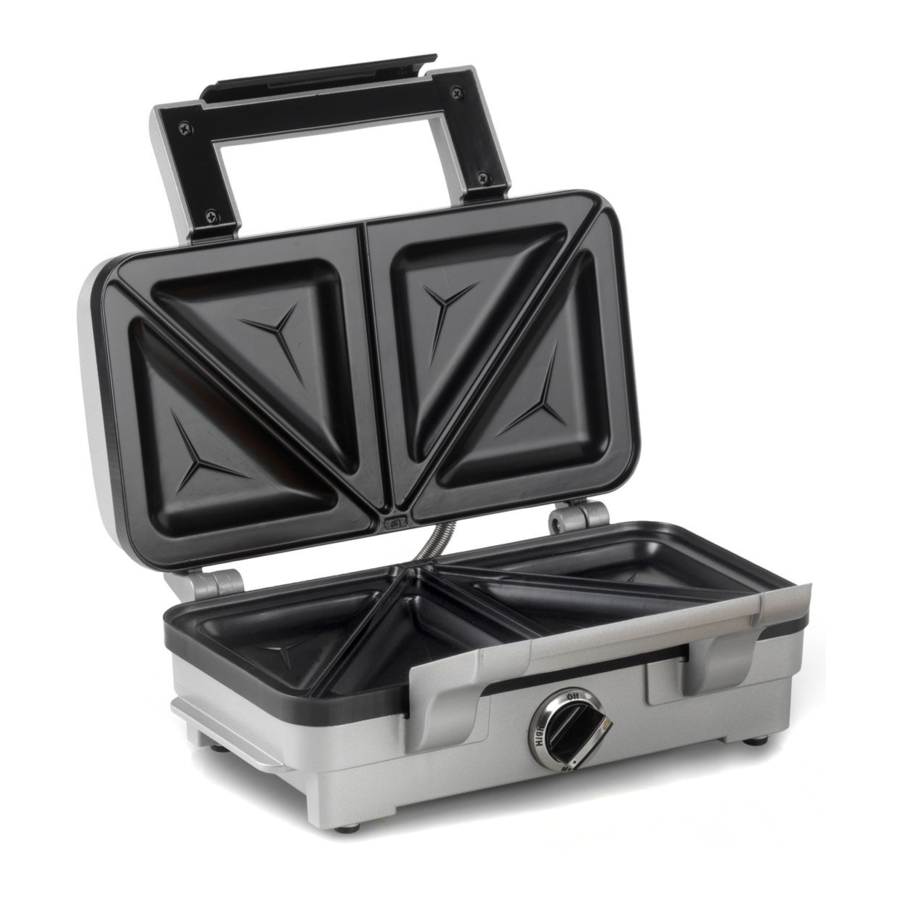

Cuisinart Griddler GR-SM - Overstuffed Sandwich Maker Manual

IMPORTANT SAFEGUARDS

When using an electrical appliance, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS.
2. Do not touch hot surfaces. Use handles and knobs.
3.
   To protect against fire, electrical shock, and injury to persons, DO NOT IMMERSE CORD, plug, or unit in water or other liquids.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning appliance.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest Customer Service (see Warranty for details) for examination, repair, or adjustment.
7.
   The use of accessory attachments not recommended by Cuisinart may result in fire, electrical shock, or injury to persons.
8. Do not use outdoors.
9. Do not let power cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Unplug the unit when finished cooking.
12. Do not use appliance for other than intended use.
13. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
14. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, remove plug from wall outlet.
15.
    TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, REPAIR SHOULD BE DONE ONLY BY AUTHORIZED PERSONNEL. DO NOT REMOVE THE BASE PANEL. NO USER SERVICEABLE PARTS ARE INSIDE.

SAVE THESE INSTRUCTIONS

FOR HOUSEHOLD USE ONLY

SPECIAL CORD SET INSTRUCTIONS

A short power-supply cord is to be provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. Longer extension cords are available and may be used if care is exercised in their use.

If a long extension cord is used, the marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance, and the longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children unintentionally, or tripped over.

NOTICE
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

INSTRUCTIONS FOR USE

1. Before using your Cuisinart Griddler overstuffed sandwich maker for the first time, remove all protective paper and wrapping. Remove any dust from shipping by wiping the plates with a damp cloth.
2. Preheat the sandwich maker. Close lid and plug cord into a 120V AC wall outlet. The red light will go on to signal power. The green indicator light will go on when unit is ready to use.
   Note: The first time you use your sandwich maker, it may have a slight odor and may smoke a bit. This is normal, and common to appliances with a nonstick surface.
   Note: The cooking plates of this Cuisinart Griddler overstuffed sandwich maker have been treated with a special nonstick coating. Before the first use, we suggest you season the grids with cooking spray or oil. If using oil, apply with a paper towel or pastry brush. You may find it helpful to repeat this process before each use of the sandwich maker.
3. When the green indicator light goes on, place ingredients on bottom plate according to recipes. Close the lid and lock it.
4. It may take several seconds for the green light to go off. This is normal.
5. Once the food is ready to eat, the green light will come on again.
6. Remove food by gently loosening the edges with a heat-proof plastic spatula. Never use metal utensils, as they may damage the nonstick coating.
7. Always disconnect the plug from the wall outlet once cooking is completed.

SPECIAL FEATURES

1. Indicator Lights
   Red light illuminates when sandwich maker has power on.
   Green light illuminates when sandwich maker is ready to cook.
   Green light illuminates again when food is ready.
2. Lock Down Lid
   Lock-on handle secures contents while cooking.
3. Rubber Feet
   Will not mark countertop; keep unit steady.
4. Nonstick Plates
   Removable and dishwasher safe.
5. Brushed Stainless Steel Housing Cover
6. Cord Storage (not shown)
   Cord wraps under unit for easy storage.
7. Plate Release Button
   Push in to release and remove cooking plates.
8. Temperature Control Knob
   Low, Medium and High settings.

Tips And Hints

Preheat your Cuisinart Griddler overstuffed sandwich maker completely before using. For sandwiches that are quick to assemble, prepare sandwich fixings while grill is preheating. The lid to the sandwich maker should be closed while it is preheating as well as in between making batches of sandwiches. The Cuisinart Griddler overstuffed sandwich maker is designed to accommodate breads of all shapes and sizes. The sandwich plates measure 5½ x 5 inches to accommodate a wide variety of bread sizes. Breads that are longer than 5½ inches can easily be toasted lengthwise or on the diagonal. Breads can also be sliced from whole loaves.

Butter, margarine, and olive oil are recommended for coating the outside of bread when making sandwiches. "Light" versions of margarines are not recommended as they do not withstand heat (check manufacturer's labels for cooking recommendations for best results). Have butter or margarine at room temperature when spreading on bread, or melt and apply with a pastry brush.

For best results, moist ingredients such as sliced tomatoes or fruits, pickles, etc., should be blotted or patted dry with a paper towel. Sauces, such as tomato sauce or salsa, can be drained for a short time in a strainer lined with a coffee filter to remove excess liquid.
There are limitless filling options for the sandwich maker – from breakfast to snacks and from dinner to dessert. Try a wide variety of breakfast sandwiches, and omelets, mini pizzas and calzones, burritos and fruit pies.
Make tasty muffins and small cakes in your sandwich maker. Most muffin mixes bake best by using the setting between medium and high. Spray sandwich plates with cooking spray once preheated and use ¼ cup of batter per sandwich pocket. Muffins bake between 6 and 9 minutes.
Packaged biscuits, bread and pizza doughs found in the refrigerated section make great sandwich "shells" for any type of filling.

CLEANING AND MAINTENANCE

Once you have finished cooking in the sandwich maker, remove plug from electrical outlet. Leave top lid open so plates begin to cool.

Never take your sandwich maker apart for cleaning. Simply brush crumbs from grooves, and absorb any excess cooking oil or excess fillings by wiping with a dry cloth or paper towel.

You may clean the cooking plates by wiping with a damp cloth, or you may put them in the dishwasher. This will prevent staining or sticking from build up of oil or fillings. Be certain plates have cooled completely before cleaning. If food adheres to plates, simply pour a little cooking oil onto area and let stand approximately 5 minutes, thus allowing baked-on food to soften for easy removal.

To clean exterior, wipe with a soft dry cloth. Never use an abrasive cleanser or harsh pad. Never immerse cord, plug or unit in water or other liquid. DO NOT PUT IN DISHWASHER.

STORAGE

Store with cord wrapped securely in the rear of the base. For compact storage, stand sandwich maker upright on back end. The sandwich maker has been designed with a special latch so lid stays closed during storage.
