IGT Crystal Slant Cabinet Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
THIS DOCUMENT IS CONFIDENTIAL AND IS NOT TO BE DISTRIBUTED WITHOUT PRIOR WRITTEN
AUTHORIZATION FROM IGT. UNDER NO CIRCUMSTANCES CAN THIS DOCUMENT BE COPIED,
DISTRIBUTED, OR USED EXCEPT BY THE RECIPIENT.

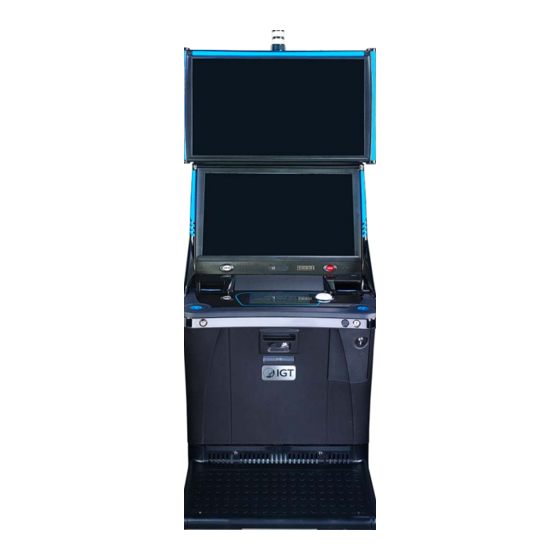

The Crystal Slant Cabinet is available in two configurations.
 The standard configuration has a 27" LCD touch screen base game monitor with a 27" non-touch screen top
monitor.
 The premium configuration has the same 27" LCD touch screen base game monitor with a 32" landscape non-touch
screen top monitor.
 The Crystal Slant will not be offered with an MLD monitor.
 Crystal Slant uses AVP 4.0 Brain Box Hardware.
 Crystal Slant uses unique slant top Crystal Core machine hardware and electrical components.
 Crystal Slant uses the same DPP Player Panel components as the Crystal Core with the exception of the button. The
Crystal Slant uses a backlit Halo Bash Button instead of the Super Button.
 The both monitors feature brackets that allow for easy replacement.
 The top monitor has a light rail integrated into the top of the monitor mask.
 The side trim light rails are mounted to the machine case.
 Crystal Slant uses only Non-MLD Ascent based game themes and selected legacy AVP themes that have been
updated to Ascent.
 Crystal Slant supports the standard CC video topper, static topper or a candle.
Crystal Slant Cabinet Overview
Field Services Technical Product Support
April 22, 2016
 2014 IGT. All Rights Reserved.
Page 1 of 32

Advertisement

loading

Related Manuals for IGT Crystal Slant Cabinet

Summary of Contents for IGT Crystal Slant Cabinet

  • Page 1 THIS DOCUMENT IS CONFIDENTIAL AND IS NOT TO BE DISTRIBUTED WITHOUT PRIOR WRITTEN AUTHORIZATION FROM IGT. UNDER NO CIRCUMSTANCES CAN THIS DOCUMENT BE COPIED, DISTRIBUTED, OR USED EXCEPT BY THE RECIPIENT. Crystal Slant Cabinet Overview Field Services Technical Product Support April 22, 2016 The Crystal Slant Cabinet is available in two configurations.
  • Page 2 Crystal Slant 32”  2014 IGT. All Rights Reserved. Page 2 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 3  Electrical Specifications Crystal Slant 32”  2014 IGT. All Rights Reserved. Page 3 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 4 Inside Lock Location  2014 IGT. All Rights Reserved. Page 4 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 5 80317101 (90 degree offset)  2014 IGT. All Rights Reserved. Page 5 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 6  Outer Drop Door Cam Position shown with plastic cover removed:  2014 IGT. All Rights Reserved. Page 6 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 7 The upper door should swing upwards  2014 IGT. All Rights Reserved. Page 7 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 8  2014 IGT. All Rights Reserved. Page 8 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 9 Cover, BV Lock Door C-Slant P/N 54126500  2014 IGT. All Rights Reserved. Page 9 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 10 Continued next page………  2014 IGT. All Rights Reserved. Page 10 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 11 SPRING-EXT,.219OD X .690L X .020W 33001490  2014 IGT. All Rights Reserved. Page 11 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 12 The Lock Cam:  2014 IGT. All Rights Reserved. Page 12 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 13 Brain Box. The shaft must remain in this position to remove and install the cover plate.  2014 IGT. All Rights Reserved. Page 13 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 14 Place a common screwdriver between the Brain Box and the cover plate and gently pry the cover plate upwards.  2014 IGT. All Rights Reserved. Page 14 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 15 The cover plate is now released from the mechanism plate.  2014 IGT. All Rights Reserved. Page 15 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 16  2014 IGT. All Rights Reserved. Page 16 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 17 ½” collar from the hardware kit.  2014 IGT. All Rights Reserved. Page 17 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 18 There is almost no exposed thread with the nut installed and tightened.  2014 IGT. All Rights Reserved. Page 18 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 19 Note the alignment of the cutout in the cover plate to the flat areas on the shaft.  2014 IGT. All Rights Reserved. Page 19 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 20 The Card Cage Lock installation is complete. Test the operation of the lock assembly.  2014 IGT. All Rights Reserved. Page 20 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 21 Illuminated beverage placement areas  2014 IGT. All Rights Reserved. Page 21 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 22 Replaceable Foot Plate  2014 IGT. All Rights Reserved. Page 22 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 23 Note that the drop door assembly hinges on the drop door, the door and lock mechanism are all individually replaceable.  2014 IGT. All Rights Reserved. Page 23 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.

  • Page 24: Lower Cabinet

    Air Filter Assemblies  2014 IGT. All Rights Reserved. Page 24 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 25 Their locations are circled in the above picture.  2014 IGT. All Rights Reserved. Page 25 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 26 The upper door must be in the half open position to remove the main monitor.  2014 IGT. All Rights Reserved. Page 26 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 27  2014 IGT. All Rights Reserved. Page 27 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 28 7. Lift the monitor off of the slide frame.  2014 IGT. All Rights Reserved. Page 28 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 29 4. Insert your hand into the area where the latch plate was and pull. The monitor will slide very easily toward the front.  2014 IGT. All Rights Reserved. Page 29 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 30 7. Install the monitor in the reverse order of its removal. Make sure to secure the latch so you don’t get a top door indication.  2014 IGT. All Rights Reserved. Page 30 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 31 70801890 SD-CARD,16GB,2.7-36V,CLS-10,UHS-1,MICRO Warehouse  2014 IGT. All Rights Reserved. Page 31 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
  • Page 32 SWITCH-B/A DOOR OPEN,PE+ IBA Warehouse  2014 IGT. All Rights Reserved. Page 32 of 32 Confidential – not to be distributed without prior written authorization from IGT. Under no circumstances can this document be copied, distributed, or used except by the recipient.
