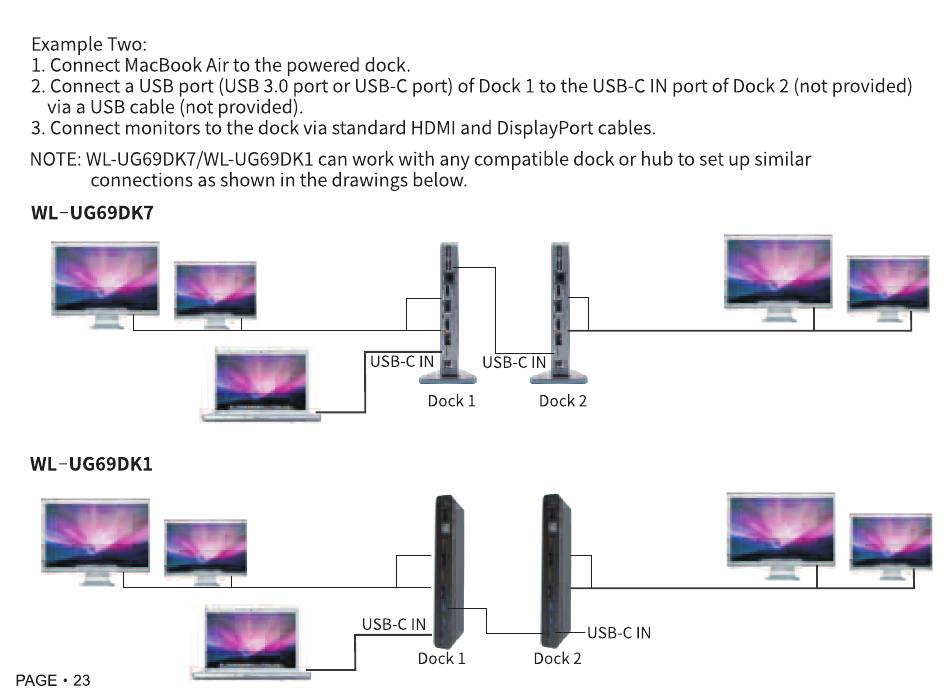

Example Two:
1. Connect MacBook Air to the powered dock.
2. Connect a USB port (USB 3.0 port or USB-C port) of Dock 1 to the USB-C IN port of Dock 2 (not provided)
via a USB cable (not provided).
3. Connect monitors to the dock via standard HDMI and DisplayPort cables.
NOTE: WL-UG69DK7/WL-UG69DK1 can work with any compatible dock or hub to set up similar
connections as shown in the drawings below.
WL-UG69DK7
USB-C I N
D o c k 1
D o c k 2
WL-UG69DK1
USB-C I N
■USB-C I N
D o c k 1
D o c k 2
PAGE • 2 3
