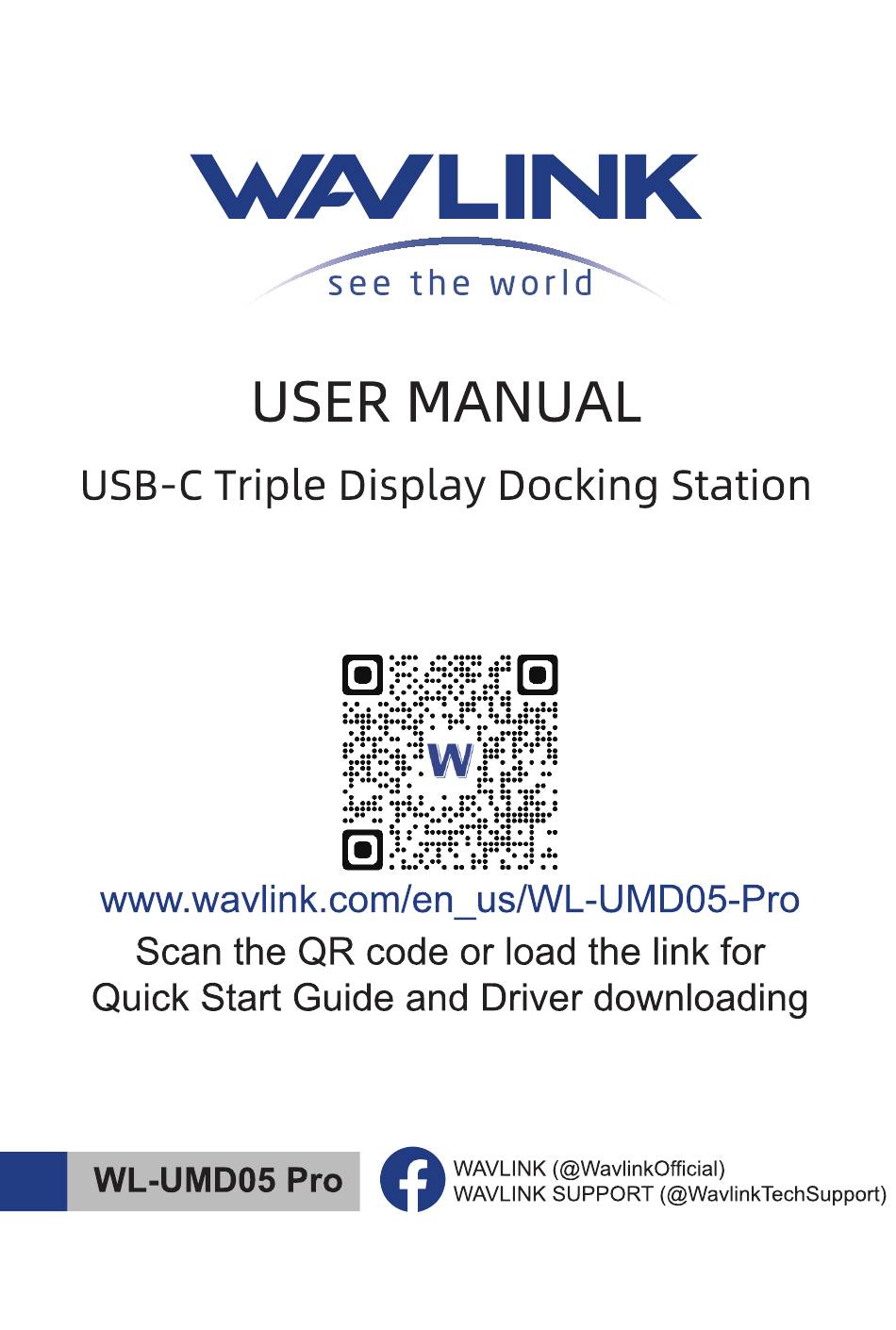

WAUL-INK
USB-C Triple Display Docking Station
www.wavlink.com/en
Scan
the QR code
Quick Start Guide and Driver downloading
WL-UMD05
see
the
USER
MANUAL
Pro
world
us/WL-UMD05-Pro
or load the link for
WAVLINK (@wavlinkOffICiaI)
WAVLINK SUPPORT
(@WavIinkTechSupport)
Advertisement
Related Manuals for Wavlink WL-UMD05 Pro
Summary of Contents for Wavlink WL-UMD05 Pro
- Page 1 WAUL-INK world USER MANUAL USB-C Triple Display Docking Station www.wavlink.com/en us/WL-UMD05-Pro Scan the QR code or load the link for Quick Start Guide and Driver downloading WAVLINK (@wavlinkOffICiaI) WL-UMD05 WAVLINK SUPPORT (@WavIinkTechSupport)
- Page 2 Safety Instructions Always read the safety instructions carefully Keep this User Manual for future reference Keep this equipment away from humidity. If any of the following situation arises, get the equipment checked by a service technician: - The equipment has been exposed to moisture - The equipment has been dropped and damaged - The equipment has obvious sign of breakage - The equipment has not been working well or you cannot get it work...
- Page 3 Introduction Built in a slim, light, and miniature case, the MST dock is designedto meet more demands of extra USB peripherals and monitors. To extend or duplicate the content of your AV sources, you can se ect either DP or HDMI port for display of high resolution Besides you can also connect your laptop to the upstream USB-C port and get it charged.
- Page 4 Overview O GigabitEthernet p ort 0 3 x USB30 port 02 x HDMI p ort 1 x DisplayPort O Powerport Upstream USB-C port O Power b utton USB 3 0 port with BC 1 2 fast charging O Micro SDcardreader O SDcardreader 4-pole phone jack System Requirement...
- Page 5 Single Display Video Port HDMI HDMI HBR2 3840 x 2160@30Hz 3840 x 2160@30Hz 3840 x 2160@30Hz DP version (DPI 2) of PC/laptop HBR3 3840 x 2160@60Hz 3840 x 2160@60Hz 3840 x 2160@60Hz (DPI.4) Dual Display Video port Dual HDMI DP + HDMI HBR2 DPversion (DPI2) 1920 x 1080@60Hz 1920 x 1080@60Hz...
- Page 6 For MAC OS system, you need to install the network port driver manually, please visit www.wavlink.com > Support > Driver PC peripherals > USB Docking Connect the USB-C connector of the dock to your host laptop/PC.
- Page 7 Display Mode Setting Windows Users 1. Right-click at any spot on your desktop and select "Display settings" Sort by Paste paste shortcut Undo Delete Ctrl-Z NVIDIA Control Panel Dupl" Personalise 2. On "Display ", please select either monitor 1 or monitor 2 Display Witujows HD Colour...
- Page 8 3. Scroll down to the "Multiple displays", and select the mode in the drop-down list that is fit for your need Multiple displays Duplicate these displays Extend these displays Show only on 1 Show only on 2 Connect to a wireless display Advanced display...
- Page 9 Click on "Arrangement" to change the position of displays currently connected Extend Mode Select either extend or mirror mode on your demand Mirror Mode...
- Page 10 . How to figure out the maximum resolution (DPI .21DP1.4) my laptop supports? 1. Firstly check the Graphics card version of your laptop: *Find "display adapter" in "Device Manager" 2. Check your Graphics card information with its manufacturer. Why doesn't my third monitor display when I set the triple...
- Page 11 Step 2: Disconnect laptop display 1. Select the laptop display ("1" is the default display for the laptop) and scroll down to "Multiple displays" 2. Select "Disconnect this display", then the aptop display panel will become disconnected Disp ay on I and 2 mobcate desktop on I and 3 on 1 &sktop...
- Page 12 : Why are my 2K and 4K monitor display abnormal when set dual or triple display mode? The resolution of some branded monitors cannot be adjusted automatically, the "Active signal resolution" of which is different rom Windows setting "Desktop resolution", hence you'd better set the resolution at the same value.
- Page 13 4. Click on "Display adapter properties for Display 2" and I ower the resolution to the right value if two values are different. Advanced display settings Sued Have a question? Why does it show "slow charging" on my laptop? Some users may notice that the charging status shows "slow charging", this is because some series of laptop have protection protocol, especially laptops that have both...
- Page 14 • HDR content creation apps Also, if you need to stream HDR contents with applications like Netflix and YouTube, make sure in Windows 10 "Stream HDR Video" setting is "on" in the "Video playback settings" page. Official website: www.wavlink.com Technical support: support@wavlink.com...
