MOSCHE WHL-603 User Manual

MOSCHE WHL-603 User Manual

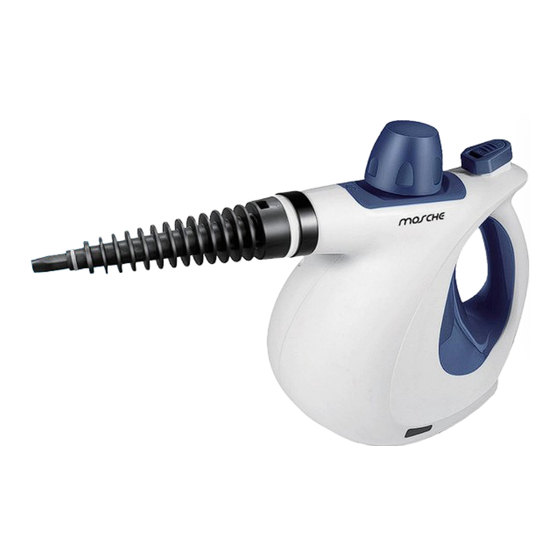

Handheld steam cleaner

Advertisement

USER GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the WHL-603 and is the answer not in the manual?

Questions and answers

Mandie
February 12, 2025

Why is my steam cleaner ready to go (red light turned off) but no steam comes out?

1 comments:
Mr. Anderson
February 12, 2025

The MOSCHE WHL-603 steam cleaner may not be producing steam even though the red light is off due to the following reasons:

1. Insufficient Water: Ensure that the water tank has enough water (not exceeding 280ML).
2. Blocked Nozzle: The nozzle may be clogged, preventing steam from coming out. Clean it if necessary.
3. Residual Pressure: Fully discharge any residual steam before attempting to use it again.
4. Power Connection: Ensure the cleaner remains plugged in while in use for optimal performance.

If the issue persists, check for any visible damage or contact MOSCHE Consumer Services.

This answer is automatically generated

Summary of Contents for MOSCHE WHL-603

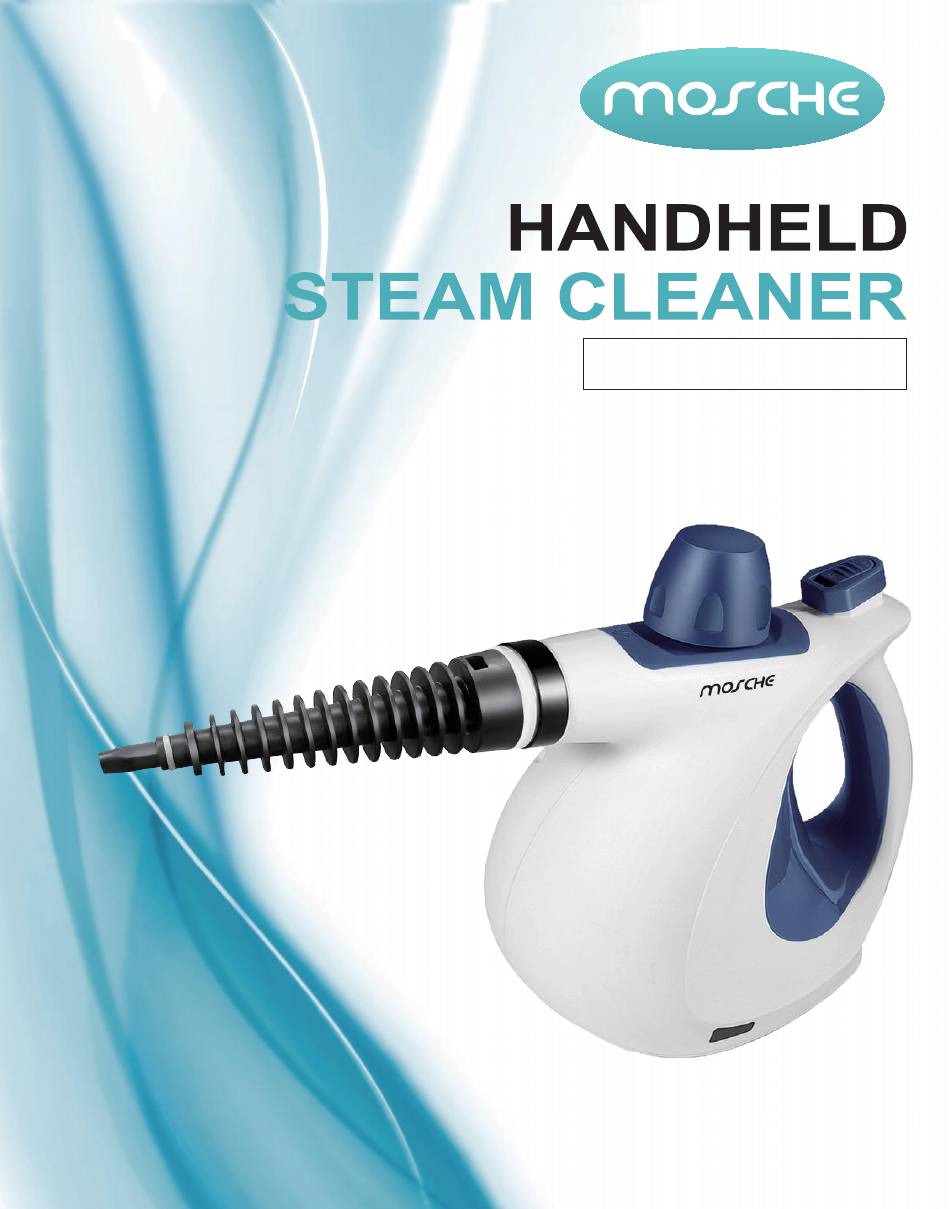

  • Page 1 USER GUIDE...
  • Page 2: Table Of Contents

    USER'S GUIDE Catalog..............1 FAQ................ 3-4 Quick Start Guide..........5-7 Technical Specification & Product View..... 8 How to Install Accessories........9-10 Window Wiper Installation........11 Disclaimer............12-13 Warranty..............14...
  • Page 3 Visit MOSCHE Youtube Vedio Guide...
  • Page 4: Faq

    Question 1: What's the highest temperature that this steam cleaner can achieve? The internal temperature of our steam cleaner can reach 230°F(110℃) and the steam comes out at a temperature of 212°F-221°F(100-105℃).For the sake of safety, the designed temperature of the steam cleaner can only reach 230°F (110℃) to avoid damage in high temperature.
  • Page 5 Question 3: How to add water? 1. Fill clean water into the measurement cup up to the marking no more than 9.46OZ(280ML) 2. Fill in the water into the boiler with the funnel without exceeding 9.46OZ(280ML) of water. 3. Plug the safety cap firmly by clockwise rotating. Question 4: Why did the accessories parts fall off during cleaning after being stuck in? 1.
  • Page 6: Quick Start Guide

    Quick Start Guide Unplug the safety cap. Add about 250ML of water with a funnel and measuring cup. Plug the safety cap.
  • Page 7 Quick Start Guide Install the accessories. Plug the power cord and wait 3-4 minutes to warn up.
  • Page 8 Quick Start Guide Question 3: How to add water? 1. Fill clean water into the measurement cup up to the marking no more than 280ML. 2. Fill in the water into the boiler with the funnel without exceeding 280ML of water. 3.
  • Page 9: Technical Specification & Product View

    Technical Specifications Model: WHL-603 Heating Time: 3-4 minutes Voltage/Frequency: AC 110-120V,50/60 Hz Usage Time: 5-8 minutes Rated Power: 1200W Flow Rate: 28 g/min Water Tank Capacity: 350ML Steam Pressure: 0.26-0.32Mpa Product View Safety Cap ON Button Nozzle Towel Sleeve Bent Nozzle...
  • Page 10: How To Install Accessories

    How to Install Accessories Attach Faric-Cleaning Accessory/Use to Clean Faric&Clothes or Other Places. Twist it Attach Glass-Cleaning Accessory/Use to Clean Windows or Other Places. Attach Round Brushes/Use to Clean Sofa, Bed or Other Places. Twist it...
  • Page 11 How to Install Accessories Attach Cone-Shaped Nozzle/Use to Clean Kitchen Furniture or Other Places. Twist it Attach Bent Nozzle/Use to Clean Toilet or Other Places. Twist it Attach Extension Hose/Use to Clean Floor Gap & Wall Cracks or Other Places. Twist it...
  • Page 12: Window Wiper Installation

    Window Wiper Installation The window wiper can be used to clean windows,flat and smooth flooring. Window Wiper Iron Brush (Window Wiper/Steam Iron/Assembled) Installation: First, hook the lower mounting clips of the window wiper (A) onto the lower edge of the steam iron and then clip the upper mounting clip (B) into the upper edge of the steam iron.
  • Page 13: Disclaimer

    Disclaimer Our steam cleaner is corded electric product, please be aware of the following. * It is forbidden to leave the product for a long time when it is under the working condition. The seller does not take any responsibility for any damage arising from failure to comply with this product guide.
  • Page 14 Disclaimer * The elderly and children must be very careful when using and must used with adult guidance. The seller does not take any responsibility for any damage arising from failure to comply with this product guide. * Do not place the steam cleaner near the bathtub or other water container. The seller does not take any responsibility for any damage arising from failure to comply with this product guide.
  • Page 15: Warranty

    We offer a Warranty of one year for any defective or malfunctioning part. See information below on "If your MOSCHE product should require service. This warranty does not apply to fans or routine maintenance components such as filers, belts, or brushes.
