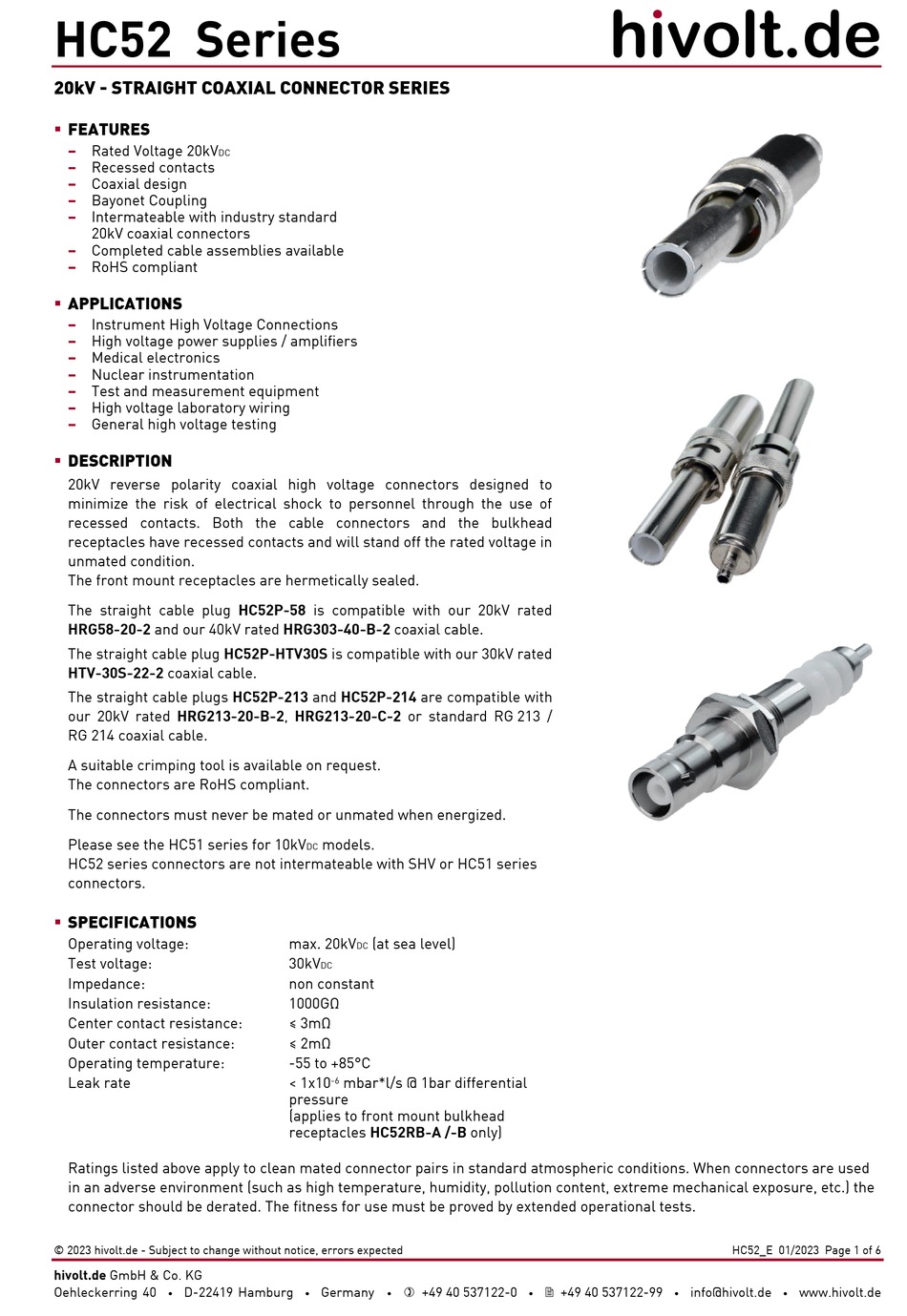

hivolt HC52 Series Quick Start Manual

HC52 Series
20kV - STRAIGHT COAXIAL CONNECTOR SERIES

FEATURES


− Rated Voltage 20kV
DC
− Recessed contacts
− Coaxial design
− Bayonet Coupling
− Intermateable with industry standard
20kV coaxial connectors
− Completed cable assemblies available
− RoHS compliant

APPLICATIONS


− Instrument High Voltage Connections
− High voltage power supplies / amplifiers
− Medical electronics
− Nuclear instrumentation
− Test and measurement equipment
− High voltage laboratory wiring
− General high voltage testing

DESCRIPTION


20kV reverse polarity coaxial high voltage connectors designed to
minimize the risk of electrical shock to personnel through the use of
recessed contacts. Both the cable connectors and the bulkhead
receptacles have recessed contacts and will stand off the rated voltage in
unmated condition.
The front mount receptacles are hermetically sealed.

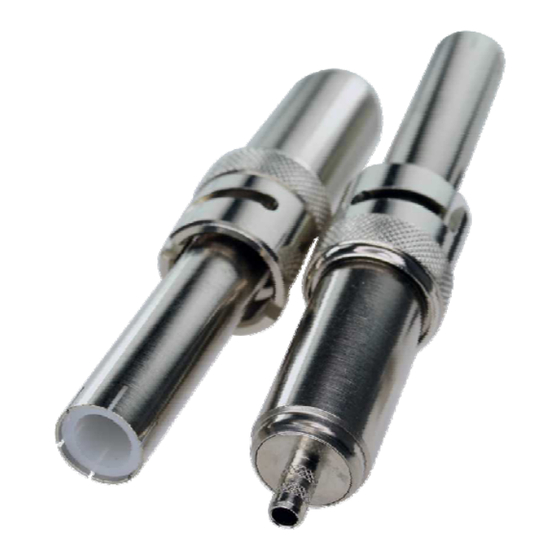

The straight cable plug HC52P-58 is compatible with our 20kV rated
HRG58-20-2 and our 40kV rated HRG303-40-B-2 coaxial cable.
The straight cable plug HC52P-HTV30S is compatible with our 30kV rated
HTV-30S-22-2 coaxial cable.
The straight cable plugs HC52P-213 and HC52P-214 are compatible with
our 20kV rated HRG213-20-B-2, HRG213-20-C-2 or standard RG 213 /
RG 214 coaxial cable.
A suitable crimping tool is available on request.
The connectors are RoHS compliant.
The connectors must never be mated or unmated when energized.
Please see the HC51 series for 10kV
HC52 series connectors are not intermateable with SHV or HC51 series
connectors.

SPECIFICATIONS


Operating voltage:
Test voltage:
Impedance:
Insulation resistance:
Center contact resistance:
Outer contact resistance:
Operating temperature:
Leak rate
Ratings listed above apply to clean mated connector pairs in standard atmospheric conditions. When connectors are used
in an adverse environment (such as high temperature, humidity, pollution content, extreme mechanical exposure, etc.) the
connector should be derated. The fitness for use must be proved by extended operational tests.
© 2023 hivolt.de - Subject to change without notice, errors expected
hivolt.de GmbH & Co. KG
Oehleckerring 40 D-22419 Hamburg
∙
models.
DC
max. 20kV (at sea level)
DC
30kV
DC
non constant
1000GΩ
≤ 3mΩ
≤ 2mΩ
-55 to +85°C
< 1x10 mbar*l/s @ 1bar differential
-6
pressure
(applies to front mount bulkhead
receptacles HC52RB-A /-B only)
Germany  +49 40 537122-0
∙ ∙
 +49 40 537122-99 info@hivolt.de
∙ ∙
HC52_E 01/2023 Page 1 of 6
