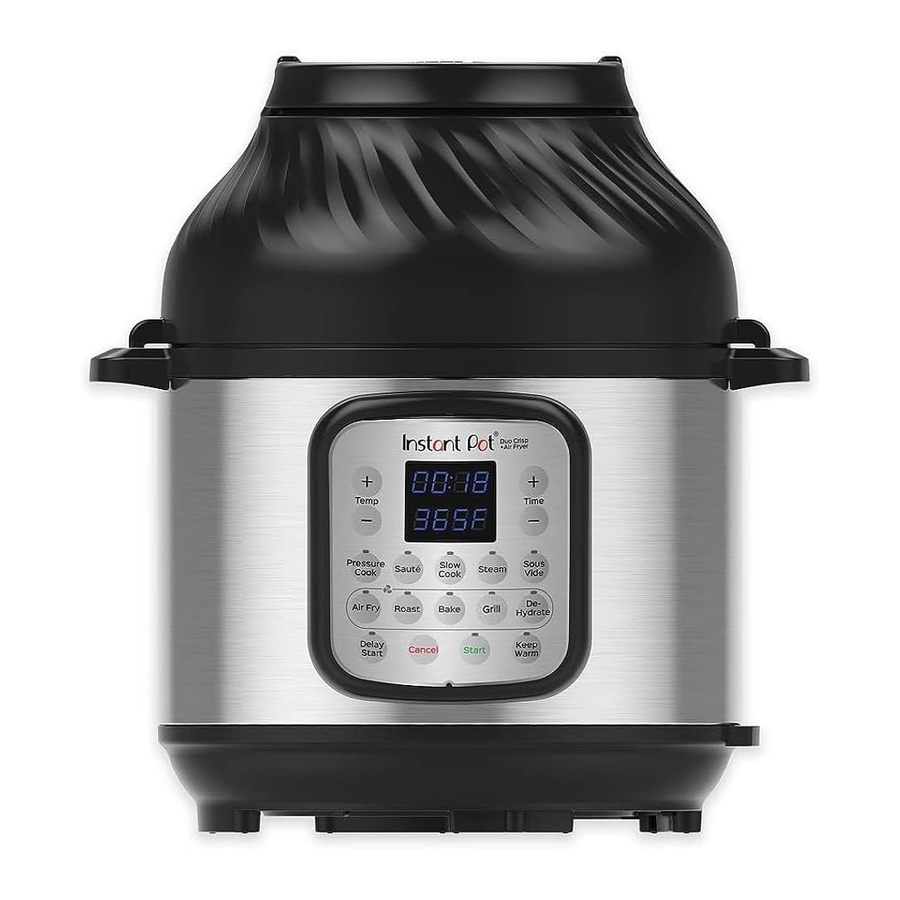

Instant Pot Duo Crisp + Air Fryer - 6-quart Multi-Use Pressure Cooker Manual

Product Overview

Top of Pressure Cooking Lid

Bottom of Pressure Cooking Lid

Inner Pot

Cooker Base

Air Fryer Lid

Back

Interior

Accessories

Pressure Cooker Lid

When using the Pressure Cooker Lid, you will only be able to use the Programs associated to that lid which include Pressure Cook, Sauté, Slow Cook, Steam, Sous Vide, Delay Start & Keep Warm. If you touch an Air Fryer Program, "Lid" will appear on the display to indicate you do not have the correct lid for that program.
You are able to adjust the time and temperature when using either lid.

Air Fryer Lid

When using the Air Fryer Lid, you will only be able to use the Programs associated to that lid which include Air Fry, Roast, Bake, Broil and Dehydrate. If you touch an Pressure Cooker Program, "Lid" will appear on the display to indicate you do not have the correct lid for that program.

Using the pressure cooking lid

Open and close the pressure cooking lid

When the cooker is plugged in, it plays a jingle when lid is (opened and) closed properly.
Open: Grip handle and turn lid counter clockwise until on lid is aligned with indicator on the rim of cooker base.
Lift lid up and off cooker base.

Note: Always check the pressure cooking lid for damage prior to cooking.

Close: Grip handle and align the on lid with indicator on rim of cooker base. Lower lid into track then turn lid clockwise until on the lid lines up with indicator on cooker base.

Note: The cooker will not operate without the lid properly in place. Ensure the lid is fully closed before attempting to operate the cooker.

While float valve is up, contents of cooker are pressurized. Do not attempt to remove lid. Refer to "Venting Methods" section in this guide for information on releasing pressure. Failure to comply with this instruction could cause injuries or property damage.

Check the Sealing Ring & Sealing Ring Rack

Remove: Pull sealing ring out from behind sealing ring rack.

Inspect sealing ring rack. It should be centered in the lid and an even height all the way around.
Sealing ring must be installed before use.

Always check for cuts or deformations in sealing ring prior to cooking. Only use authorized Instant Pot sealing rings. Sealing rings may stretch over time. Do not use a stretched or damaged sealing ring. If puckering occurs, replace sealing ring. Failure to follow these instructions may cause food to discharge, which may lead to personal injury or property damage.

Remove & Install Float Valve

The float valve has 2 positions. It pops up to indicate when the cooker is pressurized and lowers into the lid when the cooker is depressurized.

Remove: Place one finger on the flat top of the float valve. Turn lid over. Detach silicone cap from the bottom side of the float valve. Remove float valve from top of lid. Do not discard float valve or silicone cap.

The float valve and silicone cap must be installed before use to seal in pressurized steam.

Install: Drop float valve into float valve hole on top of lid. Place one finger on the flat top of float valve. Turn lid over. Attach silicone cap to bottom of float valve. Refer to "Venting Methods" in this guide for information on releasing pressure.

While float valve is up, contents of cooker are pressurized. Do not attempt to remove lid. Refer to "Venting Methods" section in this guide for information on releasing pressure. Failure to comply with this instruction could cause injuries or property damage.

Remove & Install Anti-Block Shield

Remove: Grip lid and press firmly against side of anti-block shield (pressing towards side of lid and up) until it pops off the prongs underneath.
Anti-block shield must be installed before use and cleaned frequently.

Install: Place anti-block shield over prongs and press down until it snaps into position.
Anti-block shield prevents food particles from coming up through the steam release pipe, assisting with pressure regulation.

Remove & Install Steam Release Valve

Remove: Pull steam release valve up and off steam release pipe. Steam release valve must be installed before use and cleaned frequently.

Install: Place steam release valve on steam release pipe and press down. Fits loosely when installed properly, but remains in place when the lid is turned over.

If release valve is not installed water will spatter out of the steam release pipe which may lead to burns and injury

Remove & Clean Inner Pot

Remove inner pot from cooker base and wash with hot water and dish soap before first use.
Clean the outer surface of inner pot and the heating element located on the inner surface of the outer pot with a clean dry cloth to ensure it is dry and free of food debris. Failure to do so may damage the cooker.
Place inner pot into cooker base before cooking. Food must be placed only in the inner pot, not cooker base.

Note: Always check the inner pot for dents or deformations prior to cooking. If inner pot is dented or deformed, stop using the cooker. Visit instantpot.com/support

The inner pot is an integral part of product safety. Always use an authorized stainless steel Instant Pot ® inner pot made for this model when cooking. Failure to do so may cause personal injury or property damage. To avoid risk of personal injury and/or property damage, do not pour food or liquid into cooker base.

Do not fill the inner pot higher than the PC MAX — 2/3 line (Pressure Cooking Maximum), as indicated on the inner pot. Exercise extreme caution when cooking and venting food such as applesauce, cranberries, pearl barley, oatmeal, split peas, noodles, etc., as these foods may foam, froth, or spatter, and may clog the steam release pipe and/or steam release valve. Do not fill the inner pot higher than the — 1/2 line when cooking these foods. Failure to do so may cause personal injury or property damage.

Install Condensation Collector

Install: On back of cooker base, align grooves on condensation collector over tabs and push condensation collector into place.

The condensation collector accumulates excess water and should be installed before cooking. Must be emptied and rinsed after use. Failure to install will result in water dripping on to your countertop.

Remove: Pull condensation collector away from cooker base. Do not pull down on condensation collector.

Venting Methods

When closing the lid, the quick release button will automatically reset to the popped up "Seal" position.

Natural Release (NR)

Leave the steam release in the "Seal" position. The cooker dissipates heat so pressure releases naturally over time.

This method must be used when cooking food such as soups, stews or chilis, as well as food that expands, such as beans and grains.

Note: Depressurization time varies based upon volume of food and liquid. May take 10-40 minutes, or longer.

Quick Release (QR)

Vent: Press quick release button down until it clicks.

When depressed, a continuous stream of steam is released through the steam release valve until the float valve drops into the lid.

Note: It will be loud!

If spatter occurs, turn quick release button to reset it to the "Seal" position, and try again after a few minutes. If spatter continues, use NR to vent remaining pressure.

Do not lean over the steam release valve.	Do not place unprotected skin over the steam release assembly	Do not cover the steam release valve.	The float valve drops when the cooker has depressurized. Do not attempt to open the lid while the float valve is still popped up.
Failure to follow these instructions may lead to injury or damage.

Initial Test Run

1. Add 3 cups (24 oz / 750 mL) water to inner pot.
2. Insert inner pot into cooker base.
3. Connect power cord to a 120V power source.
   Display indicates "OFF".
4. Align on lid with on cooker base.
   Lower lid into track, then turn lid clockwise to align with until jingle sounds.
   Steam release automatically resets to "Seal" position when the lid is closed.
5. Select Smart Program: Pressure Cook.
6. Use + / – keys to adjust cook time to "00:05" minutes.
   Note: The Instant Pot saves customizations made to cook time.
   Press "Start", the display indicates "On" and cooker begins Preheating.

7. Float valve rises when cooker has pressurized. Once pressurized, Cooking begins and display changes from "On" to cook time countdown.
8. When the Smart Program completes, cooker begins Keep Warm or display indicates "End".
9. Press quick release button down until it clicks into "Vent" position.
   Pressurized steam releases through top of steam release valve.

   Steam is hot! Avoid exposure to skin. Failure to follow this instruction may result in burn injury.
   Float valve drops when pressure has been fully released.
10. To open, grip handle and turn lid counterclockwise until on lid is aligned with indicator on the rim of cooker base. Lift lid up and off cooker base.
11. Discard water and dry inner pot.
12. Start cooking!

Air Frying

Pressure Cook Your Food First

After completing the initial test run, follow the instructions for your favorite pressure cooker recipes at recipes.instantpot.com or download our recipe app at instantpot.com/app.
After all pressure has been released, remove the pressure cooker lid and follow the air frying instructions starting with Step 1.

Air Fry Only

1. If not pressure cooking first, insert the stainless steel inner pot into the Instant Pot cooker base.
   Insert the air fry basket with the basket base or oven-safe cookware into the inner pot.

2. Add your food into the air fryer basket.


Note: All oven-safe cookware is safe to use in the inner pot. The provided air fry basket features multiple levels to suit your cooking needs. For best results, use the air fryer basket.

1. Place the Air Fryer Lid on the cooker base by lining up the lid fins and inserting them into the base handles.
   Press Air Fryer Lid down to ensure the power and sensor parts are fully connected to each other.
   A jingle sounds when the lid is placed properly and the display indicates "OFF".


   If the power and sensor parts are not fully connected, you may get a Lid message or C9 error. Failure to ensure they are properly connected could result in damage to the cooker.
2. Select a Smart Program:
   Air Fry, Broil, Bake, Roast or Dehydrate.

3. Use the + / − keys to adjust the Time and Temperature.
   Note: The cooker saves customizations made to the cook time or temperature.

4. Press Start.
   The display indicates "On" as the Air Fryer Lid Preheats. After preheating, the display will change to the set time and start to count down.

5. For Air Fry and Roast Smart Programs only, the cooker beeps part way through the cooking cycle and the display indicates "turn Food".

6. Lift the Air Fryer Lid off the Instant Pot cooker base and place it on the protective pad provided.
   Lifting the lid automatically pauses cooking.


   To avoid personal injury or damage to property, only place the lid on the protective pad provided.
7. Use oven mitts and/or accessories to turn, flip, or rotate your food, then press Air Fryer Lid down to ensure the power and sensor parts are fully connected to each other.
   Note: Some food does not require turning. If the lid is not removed after the "turn food" indicator appears, cooking will proceed after 10 seconds.


   Appliance and contents will be hot. Failure to follow this instruction may result in burn injury.

   If the power and sensor parts are not fully connected, you may get a Lid message or C9 error. Failure to ensure they are properly connected could result in damage to the cooker.
8. The display will count down by seconds when there is one minute left in cooking time.
   When the Smart Program completes, the lid beeps and the display indicates "End".

9. Lift the Air Fryer Lid off the Instant Pot cooker base and place it on the protective pad, or, let the Air Fryer Lid keep your food warm for up to 1 hour.
   Note: The Air Fryer Lid will beep to remind you that cooking has ended 5 minutes, 20 minutes, and 60 minutes after cooking has completed.


   The inner accessories will be hot during and after cooking. To avoid injury, use oven mitts and do not touch the inner pot accessories with bare skin.
10. To store your Air Fryer Lid, after your lid has fully cooled, wipe clean with damp cloth. Flip the Protective Pad over the so the grooved side is up and attach it to the Air Fryer Lid.

More Controls

Smart Programs Using Pressure Cooking Lid

* For glass lid or additional accessories go to store.instantpot.com.
** Low and High refer to the speed it takes to get to the target temperature of 98C/208F. High takes 3.5 hrs and Low takes 4.5 hrs and then the temperature will remain the same for the duration of the program.

Smart Programs Using Air Fryer Lid

Pressure cooking Smart Programs operate at High (9.4 ~ 13.8psi) or Low (5.1 ~ 8.0psi) pressure. Higher pressure results in higher temperature.
