MasterCool 53123 Quick Start Manual

WARNING
• When injecting dye into a pressurized system, ALWAYS wear safety glasses and gloves!
• Never breathe refrigerant vapor!
• Never use the UV light without wearing the UV glasses!
• Lamp surfaces will get hot very quickly. DO NOT TOUCH THE LENS!
DYE INJECTION INSTRUCTIONS:
A. PURGING AIR FROM THE HOSE ASSEMBLY
It is important to eliminate any air in the hose before injecting dye into the A/C system. (This process is necessary only
once for the setup).
1. Hold the dye injector (1) upward while unscrewing the cap/hose assembly (2). Turn the handle of dye injector (1)
counter clockwise all the way before filling. Fill the injector with dye. Replace cap/hose assembly, tightening
securely.
2. While holding the assembly upward, start turning the handle (1) clockwise. Continue turning as dye enters the
hose and pushes the air up. Use a pen to press the depressor of the coupler (3) to release the air. Repeat this
process as needed until dye appears at the coupler's end.
B. INJECTION
1. Turn the A/C system and engine off!!
2. Connect injector to the low side service port of A/C system. Hold body of injector. Use ( I ) starting line on handle end
as a guide. Turn handle clockwise to inject 1 application of dye.
(Approximately 1 to 1 1/4 turn(s) for Concentrated Dye).
(Approximately 3 1/2 turns(s) for Standard Dye).
3. Disconnect injector from the system and clean any excess dye left around the service port
Automotive
HVAC

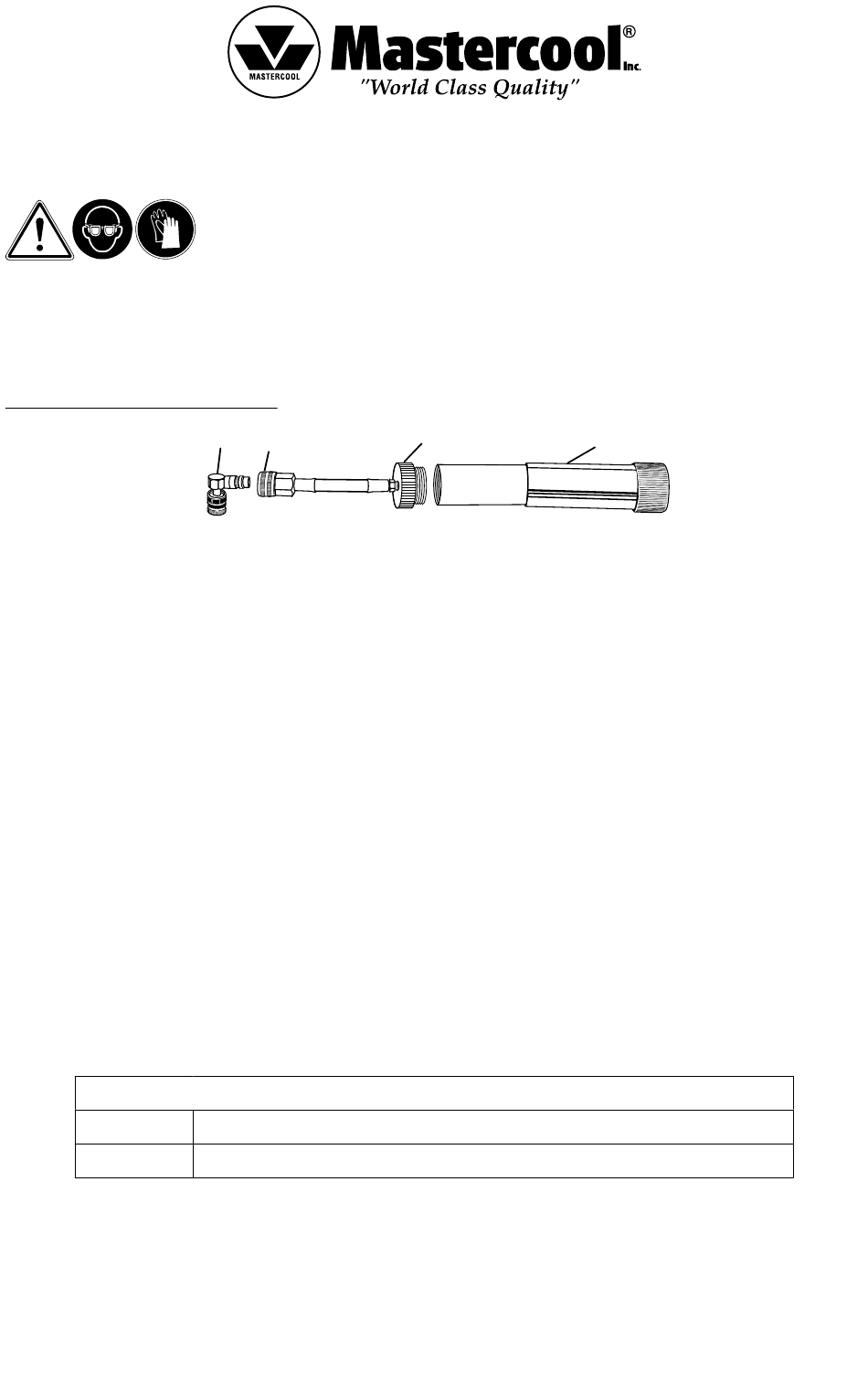

53123 DYE/OIL INJECTOR
(4)
(3)
(4)
(2B)
(5)
1 Application per system (for a system using up to 10 oz. [300 ml] of lubricant)
1 Application per system (for a system using up to 7 lbs. [3.2 kg] of refrigerant)
(2)
(2) (2A)
Dye Application Chart
(1)
(1)
