Summary of Contents for Sawo INNOVA CONTACTOR UNIT 2.0

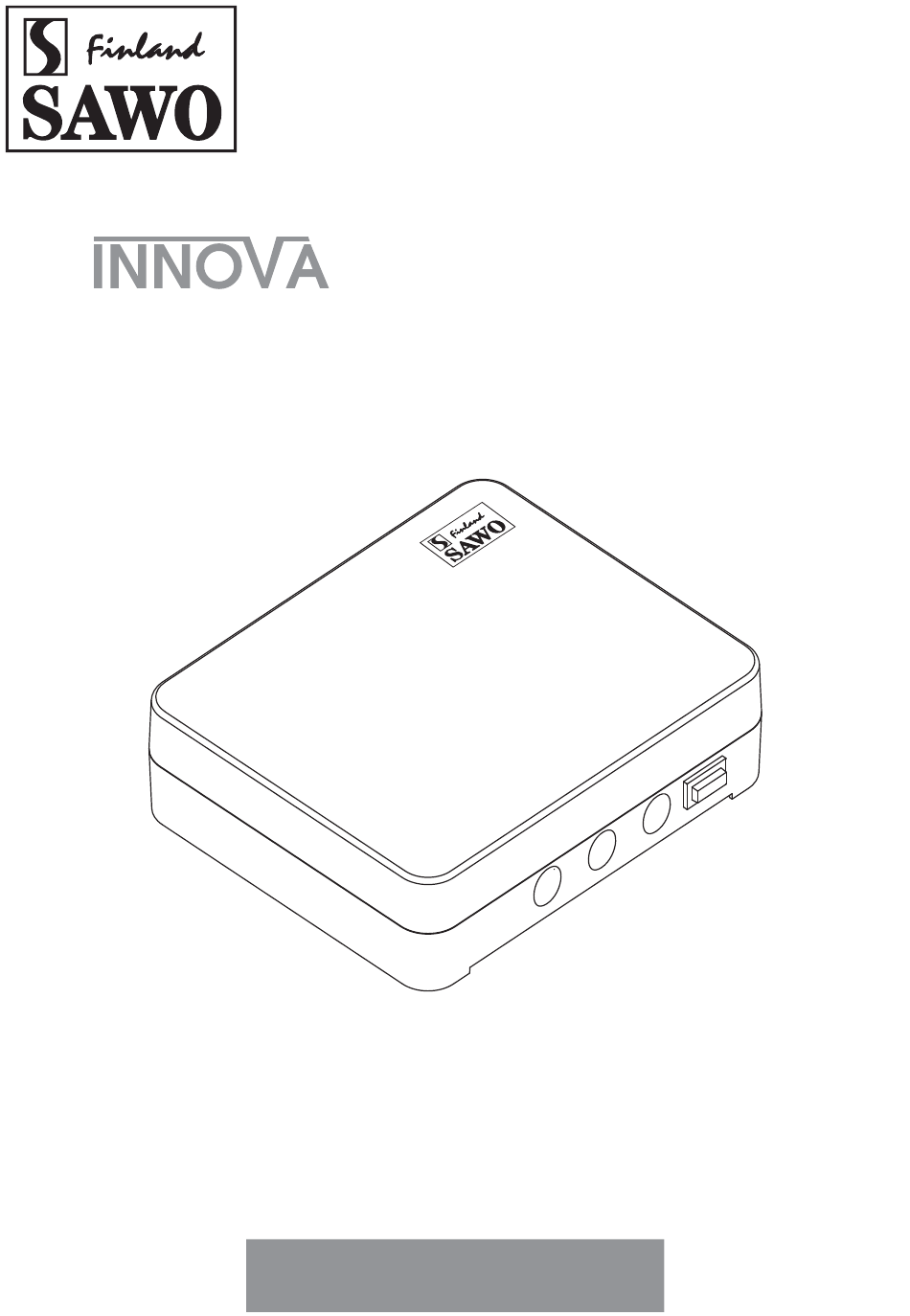

- Page 1 MANUAL CONTACTOR UNIT 2.0 Not for use in the USA, Canada and Mexico. ENGLISH...
- Page 2 TABLE OF CONTENTS Introduction of the Innova Contactor ..............3 Precautions .......................3 Technical Diagram .....................4 Contactor Unit ....................6 The Control Unit Main Switch ................7 READ THE MANUAL FOR COVERING THE HEATER ADDITIONAL IMPORTANT CAUSES FIRE HAZARD INSTRUCTIONS ENGLISH...
- Page 3 INTRODUCTION OF THE INNOVA CONTACTOR Congratulations on your purchase of Innova Contactor Unit! Innova Contactor Unit is developed to distribute the heater’s power to complement with the control unit’s capacity. The following information provides you with instructions on installing the contactor unit. Please read this instruction manual carefully before using it.
- Page 4 Technical Diagram Fig. 1 Power Controller Contactor Control Unit Main Switch Built-in Control For Built-in Controls, Jumper For Control Unit Main Switch 1 1 0 1 Models remove the interface Maximum Session Time 1 1 0 1 PCB to access the (hours) Session Time jumper.
- Page 5 Contactor Unit If the heater used is more than 15 kW, Follow the instructions that are supplied an additional contactor is needed. The together with the contactor unit. contactor unit is linked to the main Power Controller with a RJ12 cable (Fig.2). Installation of separate control panel with Installation of power controller with built- Fig.
- Page 6 The Contactor Unit Main Switch The contactor unit switch can be found on the top end of the unit. Using this switch, you can isolate the electronics from the mains power supply. In order to put the contactor unit into operation, switch to the first position (switch position I).
- Page 7 PX 4 Subject to change without notice. www.sawo.com | info@sawo.com...
