It can adjust temperature, ventilation and light option in your sauna. The Infrared controller comes together with a power controller and an user interface. Infrared 2.0 sauna control is for Infrared sauna rooms only. It can adjust the session time, temperature, fan and light.
1.2 Safety Instructions When Using IR Sauna Room Please take note of these safety precautions before using the sauna or when installing the IR panels. For user: • This product is not designed to be used by persons (including children) with limited physical or mental abilities and limited experience and knowledge except under close supervision by a responsible person with knowledge and experience or having been advised by such person.
• If you are a person with compromised heat pain sensation or under the influence alcohol or tranquilizers you should not use infrared warming cabins. • Only intrinsically safe infrared emitters can be connected to SAWO infrared controller! ENGLISH...

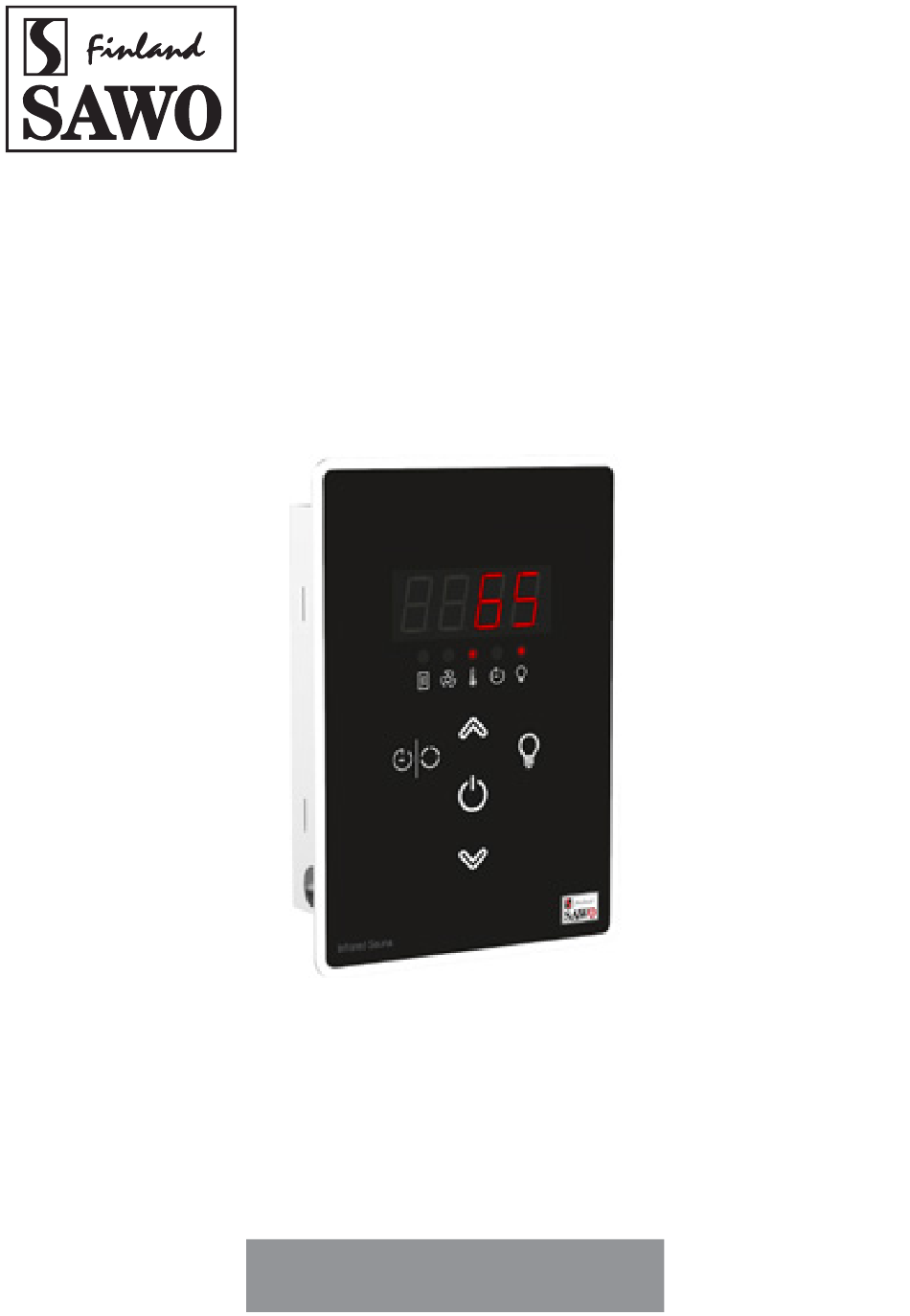

LED Display Led indicator Light IR Panel Timer Pre-run Timer / Light Temperature Mode Power Setpoint Down 2. OPERATING INSTRUCTIONS 2.1 Quick Start 1. Switch the power “ON” by pressing the Power button. The set temperature will be displayed for 5 seconds followed by the actual temperature inside the sauna room.
2.2 Directions of use 2.2.1 Heater on Press the Power button to activate the When the control unit is in the pre-run heater. The IR Panel LED is illuminated state, it will display the remaining time indicating that the IR Panel is turned on. of the pre-run.
2.2.4 Setting Mode Lock the key pad by pressing the up and Press the Mode button to activate setting down arrow keys at the same time for more mode. It can be used to select and adjust than 5 seconds. A high beep will confirm the fan, temperature, and the session the activation and the deactivation.
IR interface is connected to a controller box where the heating panels, light and fan are also connected. SAWO Infrared controller consists of power controller and user interface that are connected to each other by RJ12, and a panel temperature sensor that is connected to the Power Controller by RJ12 cable.
4. Insert the casing on the cut section. OPTIONAL 5. Connect the cable of the sensor to the IR Control Box. Interface Holder Contact your SAWO distributor NOTE! When you wish to use an optional Interface holder, no need to cut a section in your sauna.
3.3 Sensor The sensor is recommended to be installed on the top center of the IR panel frame. It is very important to install the sensor in a proper location for a correct temperature reading. Recommended location for the sensor Fig.
3.4 Technical Diagram Fig. 6 RJ Data Cable Max. 3.4kW 230V 1N~ 50/60Hz CONTROL IR-UI-V2 Separate Control Interface Error Indicator LEDs Fuse Glass Primary LIGHT Supply 160 mA Fuse Glass Light 1000 mA Fuse Glass 500 mA N R-in L NN NN N PEPE HTR N HTRN...
3.5 IR Controller Box If you are using other panels than recommended by SAWO, inquire from the panel retailer or manufacturer for the best location for sensor. All IR panels that are used together with this controller should have their own safety and regulating devices.
Page 14
Fig. 8 Unscrew Pull to open Hang the controller box Screw the box to the wall. with a screw. Refer to Technical Diagram for wire connections. After the installation is completed, connect the power cord from the controller to the circuit breaker and the IR Sauna is ready to use.
4. TROUBLESHOOTING If an error occurs, the IR panels will be switched off. There will be a warning beep and error codes are displayed blinking in the control panel. ERROR Description LED 1 LED 2 LED 3 LED 4 Temperature sensor 1 is not connected. Temperature sensor 1 is short circuit.
