Summary of Contents for Gosvor Aura

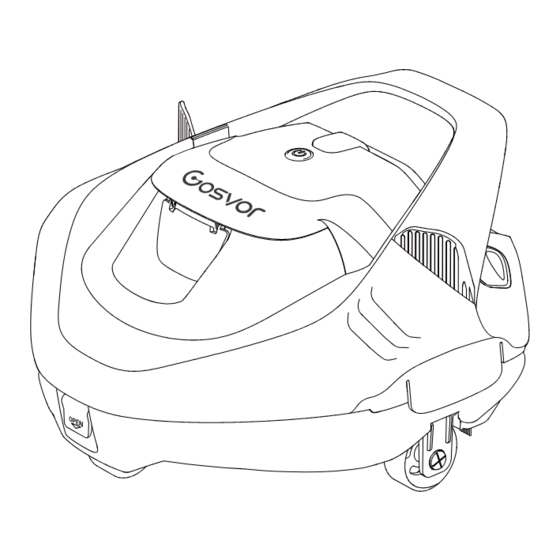

- Page 1 ROBOTIC POOL CLEANER User Manual Gosvor Aura...
- Page 3 This user manual will help you maintain your Gosvor Aura and ensure it performs at its maximum efficiency for years to come. Please take a few moments to read through. If you have any questions, please visit our website at www.Gosvor.com and contact our customer service team for assistance or more informa- tion.
-
Page 4: Table Of Contents
CONTENTS Important Safety Precautions ---------------------- 1. Structure ----------------------------------------- 2. Specifications & Working Conditions ----------- 3. Using Your Gosvor Pool Cleaner ---------------- 4. Cleaning the Filter Tray ------------------------- 5. Maintenance & Storage -------------------------- 6. Light Indicator ----------------------------------- 7. Packing List ------------------------------------- 8. -
Page 5: Important Safety Precautions
Important Safety Precautions Read this manual carefully and use your device in accordance with the instructions. Gosvor is not liable for any damages or injuries caused by improper use. Please strictly follow the instructions below. 1. Do not operate the device when people or animals are in the pool. - Page 6 Consult the manufacturer or an experienced radio/TV technician for help. Please note that changes or modifications of this product are not expressly approved by the party responsible for compliance (Gosvor), and unauthorized modifications could void the user's authority to operate the equipment.
-
Page 7: Structure
Please read this user manual carefully before using it. 1. Structure Handle Top Cover Filter Tray Chassis Retrieval Hook Charger Brushes... -
Page 8: Specifications & Working Conditions
5. Battery Life: Up to 90 Minutes 6. IP Grade: IPX8 Waterproof 7. Max Water Depth: 10ft (3m) PRECAUTIONS: For optimal performance, Gosvor recommends using your device in the following water conditions. Temperature: 50-95°F (10-35°C) pH Value: 7.0-7.4 Chlorine: Maximum 4 ppm... -
Page 9: Using Your Gosvor Pool Cleaner
3. Using Your Gosvor Pool Cleaner 3.1 Using Steps a. The Gosvor Aura was designed to clean swimming pools that have flat floors and no slopes up to 850 sq.ft/80m². 850sq.ft / 80m² b. Tightly insert the two included brushes into the slots at the bottom of your Gosvor Aura. - Page 10 c. Customers should place/remove the device into/from the pool with the bottom of the device facing the wall to avoid damaging or scratching the shell of the device or your pool’s wall. d. Power off the device after each use. Optional: Open the rear of the machine to install the chemical dispenser.
- Page 11 3.2 Charging Fully charge the device before each use. Power off the device before charging. Dry the charging port before charging.
- Page 12 3.3 Working a. Press and hold the power button until the blue indicator light stays on and the Gosvor Aura beeps. Place your Gosvor Aura into the water for 30 seconds. Your Gosvor Aura will begin working within five seconds of reaching your pool floor.
- Page 13 b. When the battery is low, the LED indicator will produce a slow flash- ing red light before stopping near your pool’s wall. The light will flash for 60 seconds before the device powers off. c. Attach the included hook onto your pool pole and lift the device out of the water.
-
Page 14: Cleaning The Filter Tray
Gently pull the sides of the shell outward before lifting the Gosvor Aura's shell up to access the filter tray. c. Remove the tray and dump the collected debris from the bottom of the Gosvor Aura's shell, then wash the shell and filter tray with water. -
Page 15: Maintenance & Storage
After cleaning your Gosvor Aura, replace the filter tray and secure the shell using the buckles. Close 5. Maintenance & Storage a. Always wash the filter tray immediately after use. Dried debris may cause blockage and affect performance if debris is not washed and removed in a timely manner. - Page 16 b. Brush Replacement. If a brush becomes worn out, follow the steps below. 1. Remove the top cover of the device to expose the brushes. 2. Using your fingers or a small tool, press the two small locking bars according to the image below. Push Push 3.
- Page 17 Wheel Replacement If one of your Gosvor Aura's wheels breaks, follow the steps below. 1. Remove the top shell of the device to expose the wheels. 2. Using a finger or small tool to push the wheel’ s buckle till it...
- Page 18 The Gosvor Aura should be stored in a cool, well-ventilated place away from direct sunlight. e. If you need to store the Gosvor Aura for a prolonged period, we rec- ommend you charge it every three months between 40%-60% to maintain battery health.
-
Page 19: Light Indicator
Slow Flashing Red Light Rotor Blocked Red and Green Flashing Lights Water Flooding Red and Blue Flashing Lights Power Failure Rapid Blue lights 7. Packing List Name Model QTY(pc) Cleaner Gosvor Aura Charger Retrieval Hook User Manual Brushes Spare Wheels... -
Page 20: Warranty
8. Warranty This product has passed quality control and safety test conducted by our technicians. 1. This product comes with a 12-month warranty that covers your item’s battery and motor from the date of purchase. 2. This warranty is voided if the product has been altered, misused, or has been repaired by unauthorized persons. - Page 22 www.Gosvor.com...
