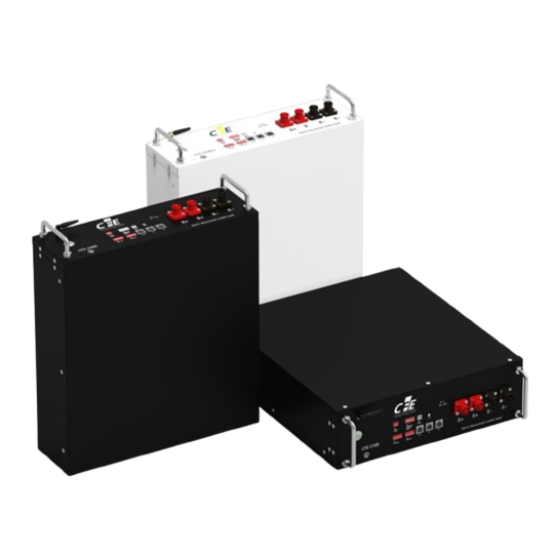

- Page 1 Residential ESS Lithium-ion Battery CFE-5100/CFE-5100S/CFE-2400 WiFi Configuration Guidance Published: 0511, 2023 Version 1.3...
- Page 2 WiFi Configuration Guidance CFE-5100/CFE-5100S/CFE-2400 have a built-in WiFi module to work with Smart BESS App Please read this manual carefully before doing WiFi Configuration Smart BESS is designed for users to monitor the battery status like SOC, voltage and warning information.
- Page 3 2. Instructions for Smart BESS APP 2.1 Registration Open the Smart BESS APP, Click Register Account and create your account here. 2.2 WiFi Configure 2.2.1 iPhone instruction Connect to WiFi of the house before WiFi configuration; Select WiFi Config ; ...
- Page 4 Input the password of the WiFi; Click Next; Press the Reset on the battery for around 3 seconds until the Run light goes fast flash Back to iPhone WiFi setting page Connect to Battery WiFi named ‘hiflying_softap’; ...
- Page 5 Scan the QR code to watch iPhone WiFi configuration video instruction. 2.2.2 Android instruction Connect to WiFi of the house before WiFi configuration; Select WiFi Config ; SSID is the WiFi name of the house, which is obtained automatically; ...
- Page 6 Input the password of the WiFi; Click Start, and select GO TO SETUP ; Press the Reset on the battery for around 3 seconds until the Run light goes fast flash; Back to mobile phone WiFi setting page; ...
- Page 7 Scan the QR code to watch WiFi configuration video instruction. 3. Add Battery Connect back to your home WiFi Go Add Battery and scan the bar code of the battery; You can customize the battery name, and the PCS should input the Number of SW3 on ...
-
Page 8: Online Upgrade
Clicking on the Warning & Services, you can see the battery warning information. 6. Online Upgrade Once you got the WiFi configured individually for all the CFE batteries you have, you can contact CFE Technical support Group for upgrading the battery firmware version for the latest firmware 7. - Page 9 7.4 It is recommend having the communication cables and power cables between batteries disconnected before the online upgrade; 7.5 The online upgrade will normally take 20 mins; 7.6 After the online upgrade the BMS will turn off automatically, the batteries need to be restarted manually;...
- Page 10 First-class supplier of energy storage and microgrid CF Energy Co., Ltd. Company Address: Intelligent Manufacturing Base , Xianyang , Shaanxi , PRC . Tel: (+86) 029-38367888 Web: www.cfenergygroup.com E-mail:sales@cfenergygroup.com For updates on this file please check the CFE Service website https://www.cfenergygroup.com/Service.html...
