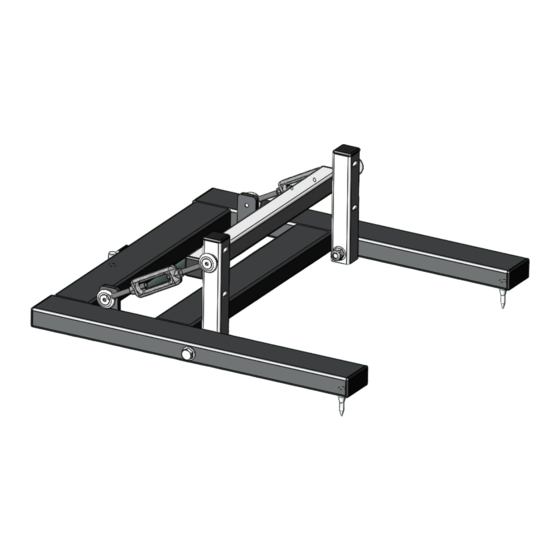

Sound Anchors Magnapan MG 1.6/1.7 Stand
Instructions
Thank you for purchasing Sound Anchors stands for your Magnapan
1.6/1.7 speakers. These Instructions are intended to help guide you
through the assembly process. If you have any questions, feel free to
contact us at 321-724-1237. Bernie or Mark are more than willing to
help you with any questions you have about the stands.
Advertisement
Table of Contents
Related Manuals for Sound Anchors Magnapan MG 1.6
Summary of Contents for Sound Anchors Magnapan MG 1.6
- Page 1 Sound Anchors Magnapan MG 1.6/1.7 Stand Instructions Thank you for purchasing Sound Anchors stands for your Magnapan 1.6/1.7 speakers. These Instructions are intended to help guide you through the assembly process. If you have any questions, feel free to contact us at 321-724-1237. Bernie or Mark are more than willing to...
- Page 2 INVENTORY 2ea Uprights 2ea Bases 6ea 3/8-16 Spikes 6ea 3/8-16 Jam Nuts 6ea 3/8 flat washers 4ea Turnbuckles 4ea ¼-20 x 5/8" Flat Head Cap Screws 4ea ¼-20 x 1" Flat Head Cap Screws 8ea ¼" Flared Washers 4ea 5/16-18 x 3 ½" Hex Head Cap Screw 4ea 5/16-18 Nyloc Nuts 8ea 5/16 Flat Washers 1ea 5/32 Hex Key...
- Page 3 ASSEMBLING THE STAND 1. Check to see that you have all of the listed parts on the previous page. 2. Fasten the base and upright together using 5/16 hex head cap screws, 5/16 flat washers, and 5/16-18 nyloc nuts as shown in figure 1. 3.
- Page 4 1ea ¼-20 x 1" Flat Head Screw 1ea ¼" Flared Washer 1ea ¼-20 x 5/8" Flat Head Screw 1ea ¼" Flared Washer Figure 2 Figure 3...
- Page 5 Figure 4 PUTTING IT ALL TOGETHER Sound Anchors Stands for Magnapans Loudspeakers are fastened to the speaker the same way that the original tee stands that were supplied with the speakers are fastened. In fact, we even use the same four screws.
- Page 6 SETTING THEM UP 1. Place your speakers (which have been fastened to you stands) where you will want them for listening. 2. Connect your cables according to your Magnapan manual. 3. Adjust the front two spikes so that your system is level side to side. 4.
