Trevi RA 713 B - Portable Radio Manual

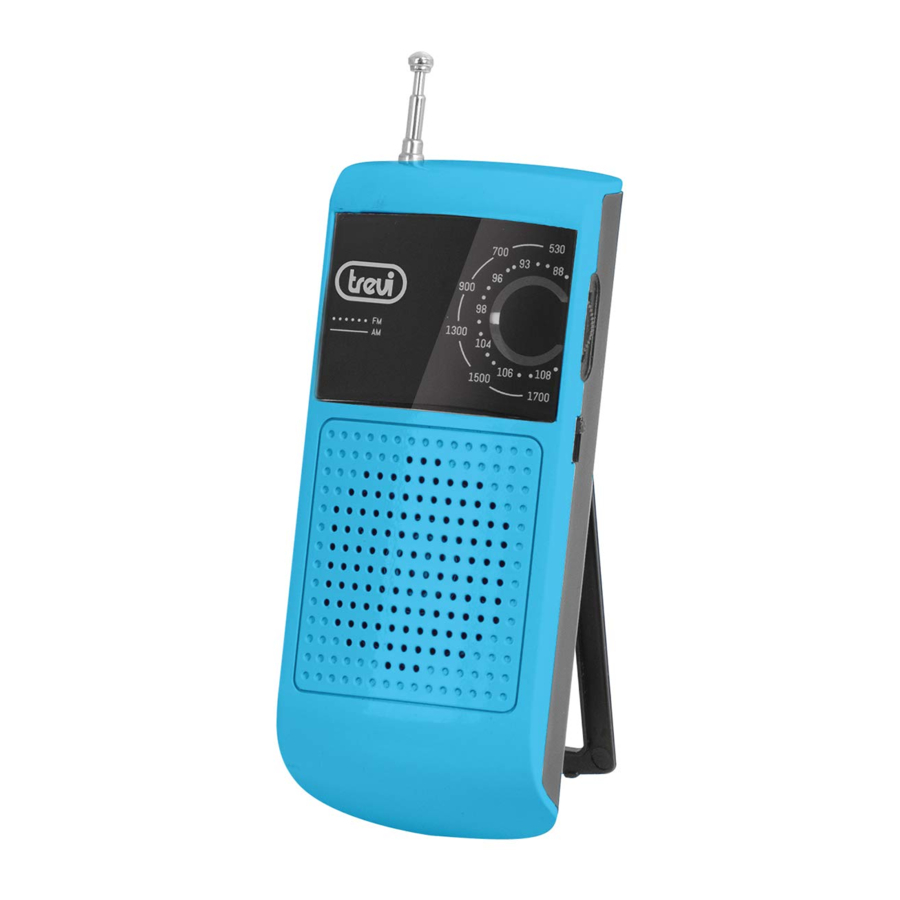

CONTROL AND THEIR FUNCTIONS

1. Rod antenna
2. Dial scale
3. Tuning knob
4. Band switch AM/FM/OFF
5. Volume knob
6. Phone jack
7. Speaker
8. Battery compartment door
9. Stand

BATTERY POWER OPERATION

• Release the clip by sliding it back down.
• Install 2 x "AAA" batteries into the battery campartment (8) on the backside of the device, carefully as indicated in the battery com- partment.

Remove the batteries when don't use the device for a long time.

OPERATION

1. Select the desired radio band with the Band switch AM/FM/OFF (4), the radio turns on:
   FM = frequency modulation
   AM = media wave
2. Rotaring the Volume knob (5) to a comfortable listening level.
3. Turn the Tuning knob (3) to the desired station.
4. To turn the radio off, set the band Switch (4) to OFF position.

RECEPTION NOTE

For FM reception pull out the Rod antenna (1) adjust the direction, lenght and angle to give the best reception.

The AM band antenna is internal so to improve the reception orient the device.

PHONE JACK

For private listening connect a he- adphones (not included) with a 3,5 mm plug with an impedance from 4 to 32 ohm to the Phone jack (6). The built-in speaker will automatically disconnected.

MAINTENANCE

This device is a high precision electronic instrument; so it's recom- mended to not place the radio set near sources of heat, in humid or dusty places, nor expose it directly to the sunlight.

Clean the radio with a damp cloth. Using detergents, abrasives or solvents may damage the radio set.

NOMINAL SPECIFICATION

Power sources:
2x"AAA"bateries not included

Frequency range:
FM 88-108MHz
AM 530-1600KHz

Dimensions:
108x46x23mm

TREVI pursues a policy of conti- nuous research and development. Therefore the characteristics of the product can differ from those in the description.
