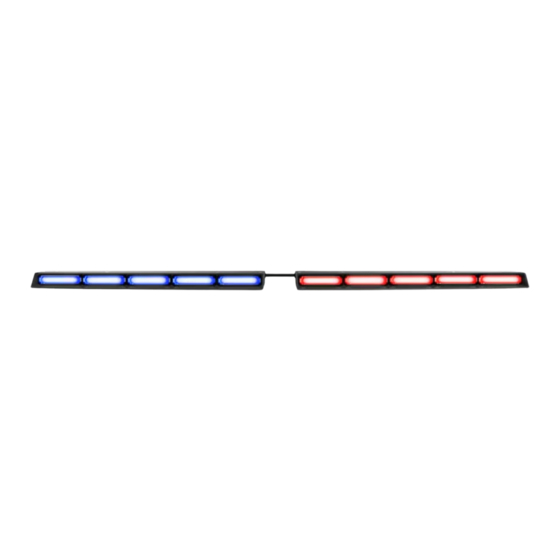

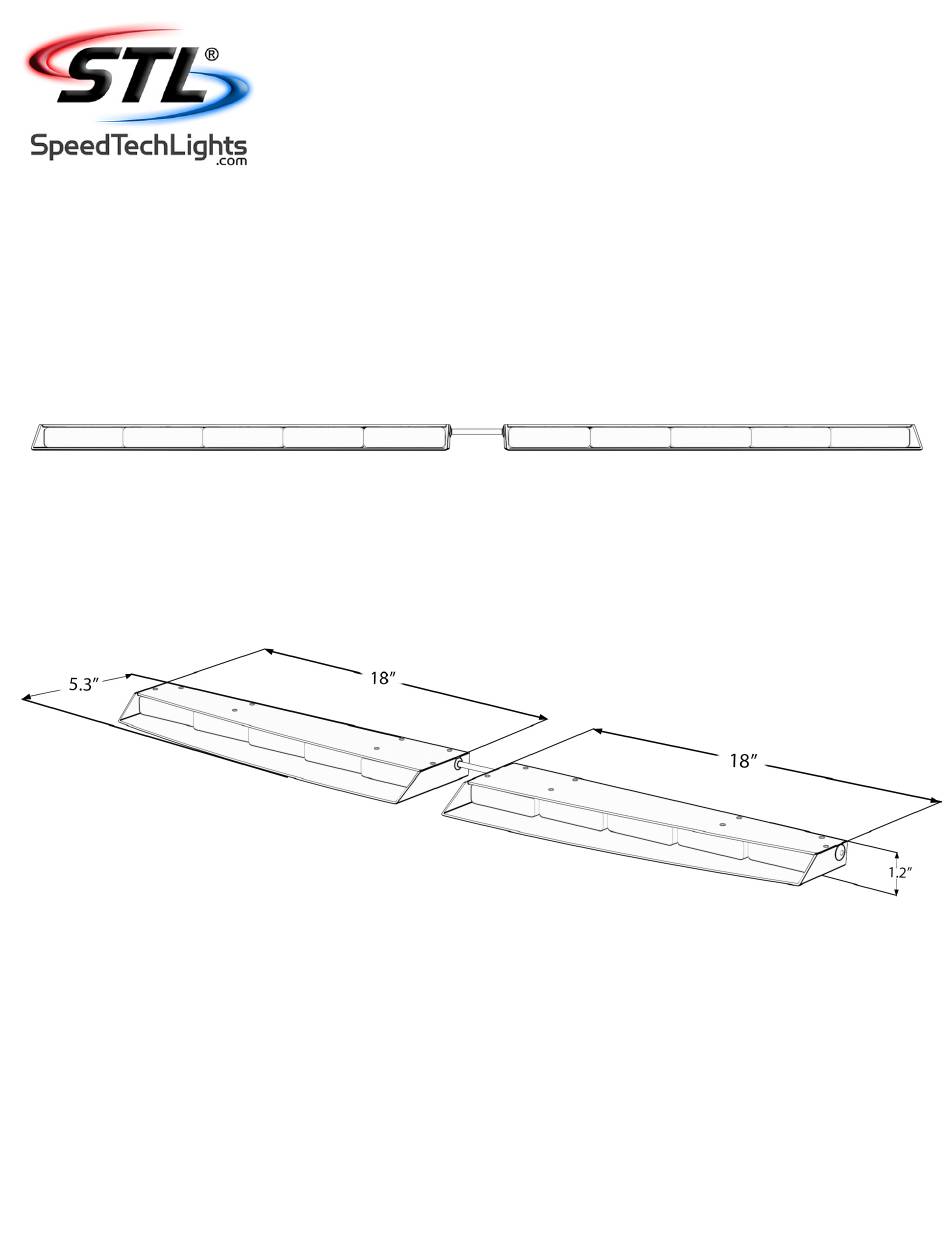

- Page 1 RAPTOR SUPER TD ® VISOR LIGHT BAR B-RTSTD10 B-RLSTD10 INSTRUCTION MANUAL SpeedTech Lights, Inc © 2019...
- Page 2 This document must be delivered to and read by the end user and installer as it serves to provide you with the required information for proper and safe use of your STL product. Before operating this or any STL products the user and installer must read this manual all the way through. You will find important information in this manual that could prevent property damage and/or serious injury to the user and installer.
-
Page 3: Maintenance
Grommets, cable ties, looms, and other installation hardware should be used to anchor and protect all wiring. Fuses should be properly sized and located as close to the power take off points as possible to protect the wiring and device. To protect against short circuits, a fuse is included by STL for all products. -
Page 4: Specifications
RAPTOR SUPER TD ® VISOR LIGHT BAR Wiring Diagram Wire Color Function Wire Color Function Red* Positive White Positive (When bypassing Grand Control Box) Negative Super Take Down Black* Blue Flash Pattern Take Down Yellow Green * Indicates a main power cable. NOTE: All cables except Negative contact +12 VDC. - Page 5 RAPTOR SUPER TD ® VISOR LIGHT BAR Available Visor Bracket Mounts Base Base Base Base Base SpeedTech Lights, Inc © 2019...
- Page 6 RAPTOR SUPER TD ® VISOR LIGHT BAR Mounting Bracket Contents Inspect contents of package before proceeding. Q-3070 Universal Bracket (Included) Q-302 and Q-304 (Sold Separately) Universal Brackets: Q-302 and Q-304 Vehicle Specific Brackets: • (4) Base brackets • (1) DL bracket •...
- Page 7 RAPTOR SUPER TD ® VISOR LIGHT BAR Q-3070 Universal Mounting Bracket Installation Base Bracket and Q-3070 Universal Visor Bracket Assembly To attach the base bracket and visor bracket, you will need the following for each of the (4) assemblies: • (2) Phillips pan head screws •...
- Page 8 RAPTOR SUPER TD ® VISOR LIGHT BAR Attaching Assembly to Raptor Light Bar Base There are (4) holes on the bottom of each Raptor segment, (8) holes total. NOTE: Some assemblies and brackets only require (1) hole to be used for mounting. Choose the hole that will allow best fitment to the vehicle.
- Page 9 RAPTOR SUPER TD ® VISOR LIGHT BAR Base Bracket and Q-300 / Q-303 / Q-305 / Q-306 Visor Bracket Assembly NOTE: This assembly is very similar to the Universal Bracket assembly. The only difference is the Vehicle Specific visor brackets will be used instead of the Universal forked visor brackets to pair with the base brackets. For this example, the Q-303 Vehicle Specific Brackets will be used.
- Page 10 RAPTOR SUPER TD ® VISOR LIGHT BAR Base Bracket and Q-301 Visor Bracket Assembly NOTE: This assembly is very similar to the Universal Bracket assembly. The only difference is the Center visor brackets will be used instead of the Universal forked visor brackets to pair with the base brackets. Also the Driver and Passenger side brackets will be mounted directly to the body of the bar without the use of base brackets.
- Page 11 RAPTOR SUPER TD ® VISOR LIGHT BAR Q-302 / Q-304 Visor Bracket Assembly NOTE: These Vehicle Specific Visor brackets do not require a base bracket assembly. These brackets attach directly to the mounting holes on the Raptor Light Bar base. For this example, the Q-304 Vehicle Specific Brackets will be used.
-
Page 12: Spacer Installation
RAPTOR SUPER TD ® VISOR LIGHT BAR Spacer Installation NOTE: Spacers are included to assist in adjusting the Visor Light Bar to the windshield for any base bracket assembly. Spacers are not intended for use with Vehicle Specific Brackets that mount directly to Raptor base. 1. - Page 13 About Flash Patterns • All STL LED products are equipped with a non-volatile memory which will recall the last flash pattern when the Light Bar is turned on. • Set the flash pattern by pushing the Flash Pattern button on the Grand Control Box to cycle through the various patterns.
