Votronic MobilPOWER Inverter SMI 600 Sinus Installation And Operating Manual

Installation and Operating Manual
MobilPOWER Inverter SMI 600 Sinus
Inverter 12 V DC / 230 V AC for application in special purpose vehicles, high-quality campers as well as
in the marine field.
The sine inverters convert
The MobilPOWER Inverters Sinus are the ideal solution for operation of high-quality 230 V mains consumers, such as
B.BOS, hand lamps, battery chargers, radio systems and high-quality audio systems, video, PDA, Laptop, computer, energy-
saving lamps, TV, satellite systems, E-Bike chargers etc., up to capacity rates of 600 Watts being supplied by the 12 V board
mains supply.
The units are designed according to the state of the art in clock pulse-controlled execution ("switch mode"). Due to the
microprocessor control combined with advanced SMD technology a compact design could be realized. Easily running fans
(with speed control) being noise-optimised and friction-optimised ensure perfect cooling and thus unproblematic
continuous operation, even at full capacity.
Furthermore, the thermal and electric load as well as overload and short-circuit of the output circuit are supervised by
integrated protective circuits.
The inverters are equipped with an intelligent control for power saving with automatic disconnection, which ensures
minimised power consumption during idle time.
An integrated undervoltage protection protects the batteries by disconnecting the inverter in case of dropped battery
voltage.
Features:
•
Output voltage in quality of mains voltage (pure sine)
•
Output frequency crystal stabilized 50 Hz
•
Control for power saving with automatic disconnection (automatic mode)
•

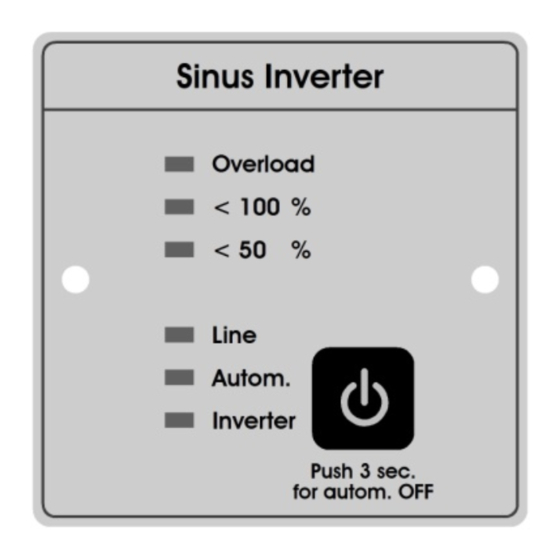

The display panel can be rotated by 360 °, and it can be used as remote control
• Solid dimensioning, robust and compact design, high operating safety
•
Automatic protective disconnection in case of low voltage of the battery
• Automatic protective disconnection in case of overvoltage of the battery
•
Electronic and thermal overload protection
•
Intelligent microprocessor control
•
Clock-pulse controlled execution, high frequency (switch mode)
•
High efficiency (approx. 90 %)
• A connection cable of a length of 1.2 m with thread is already installed at the unit.
•
Continuous cooling fan with temperature control and control of the fan-in current
Please read these assembly and operating instructions and in particular the safety instructions on
page 2 before starting the connection and start-up.
12 V Direct Voltage (DC) of a battery into
230 V / 50 Hz Sinusoidal Alternating Voltage (AC) in quality of mains voltage.
No. 3157
