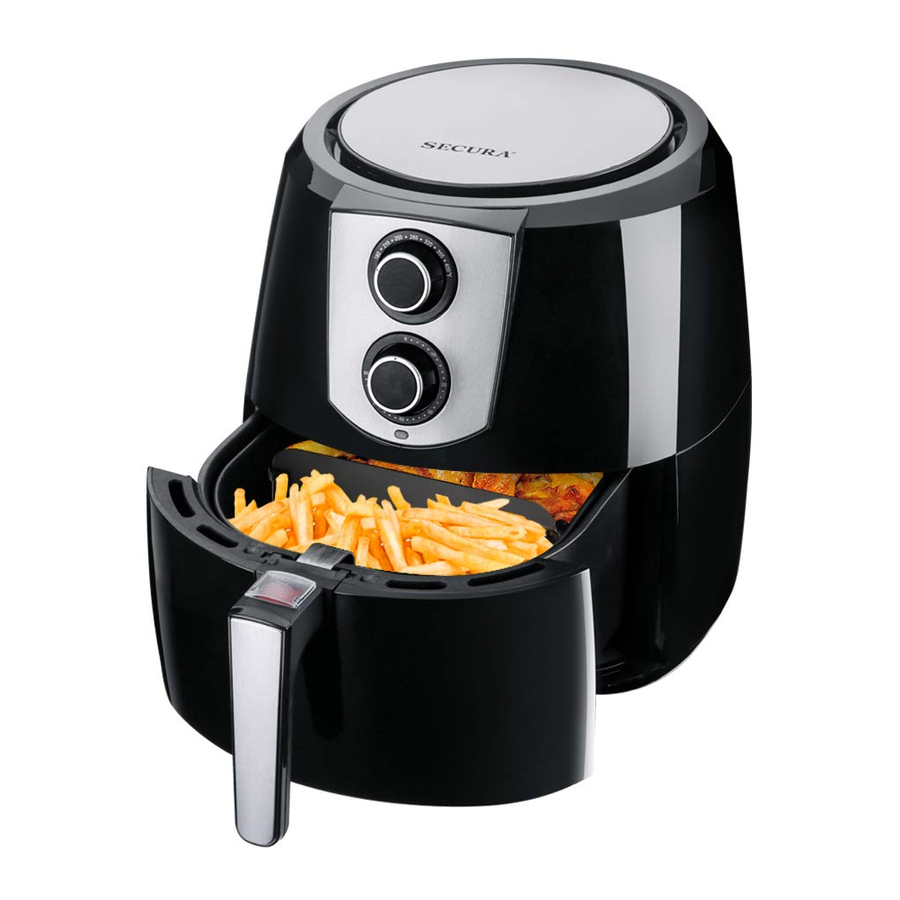

Secura GLA-717 - Air Cooker Oil Free Fryer XL 5.5 Qt 1800-Watt Manual

Product Structure Diagram

1. Fry basket
2. Protective cover
3. Push-release button
4. Handle bar
5. Fry pot
6. Air inlet
7. Upper cover
8. Control panel
9. Temperature controller
10. Timer
11. Indicator light
12. Air outlet
13. Power cable

• Please carefully ready the instruction manual, before using the appliance.
  Keep the manual for reference in future;
• Never fill the pot with oil, or it may cause a fire hazard;
• The appliance contains electronic elements and heating elements. Do not put it in water or or wash by water;
• Hot surface when the appliance is operating. Do not touch the hot surfaces. Use handle or knob.
• Do not cover the air inlet and outlet on the operating process. Do not touch the inside of the appliance to avoid burns and scalding;
• High temperature air will flow out through the outlet with the appliance is in use. Please keep a safe distance. Do not touch the hot surfaces, Do not close to the air outlet. When pulling out the pot, please be careful of high temperature air.

• Do not use the AC power except 120V to avoid electric shock, fire and other accident;
• Please exclusive use outlet above 15A. To ensure continued protection against risk of electric shock, connect to properly grounded power socket only.
• Please keep the plug clean to avoid disaster
• Do not damage, strongly pull or twist the power cord, use it carry heavy loads, or transform it, let cord hang over edge of table of counter, or touch hot surfaces, to avoid electric shock, fire and other accidents. Damaged power cord must be repaired by professional maintenance staff
• Please do not plug and unplug with wet hands, otherwise it may cause electric shock
• Plug tightly, otherwise, it may cause electric shock, short circuit, smoking, sparking and other dangers;
• Do not immerse the appliance, body, cord or plug in water or other liquid, to protect against electrical shock and affecting the function.
• Do not place the appliance in the presence of explosive and /or flammable fumes.
• Do not allow children to play with the socket and plug to avoid electric shock; - Do not place the appliance in the presence of explosive and /or flammable fumes.
• Do not place the appliance on or near the flammable material, such as tablecloths, curtains and others, to avoid fire hazard;
• Be sure to use on a heat resistant and even surface, keep the appliance at least 30cm away the wall, furniture or other flammables
• Do not use the appliance for other than intended use;
• Physical or metal disability persons or those lack in knowledge of this item must be guided by persons who have experience with this appliance and who will be responsible for their safety
• Keep the appliance away from children to avoid scalding, electric shock and/or other injuries; close supervision is necessary when the appliance is used by or near children
• This appliances is intended for Household Use Only.

Before the first use

• Remove all packaging material.
• Remove an stickers or labels from the appliance
• Thoroughly clean the basket and the pan with hot water, some washing-up liquid and a non-abrasive sponge.
• Wipe the inside and outside of the appliance with a moist cloth.
• Place the appliance on a stable, horizontal and level surface. Do not place the appliance on non-heat-resistant surface. The appliance with good air circulation and away from hot surface, and any combustible materials.
• Place the basket in the pan properly, you hear the sound signal "tang".
  Slide the pan back to the appliance.
• This is an appliance that works on hot air. Don not fill the pan with oil or frying fat.
• Do not put anything on top of the appliance. This disrupts the airflow and affects the hot air frying result.

Use

1. Put the mains plug in an earthed wall socket.
2. Turn the Temperature Controller Knob to proper temperature
3. Turn the Timer to 3 minutes for preheating. After this, the device is ready for use.
4. When the time to 0, carefully pull the fry pot out of the appliance, place the ingredients inside the fry basket (Attention: do not exceed the maximum line); well connect the fry basket with fry pot, slide the pan back to the appliance.
   1. Never use the pan without the basket in it.
   2. Do not touch the pan during and some time after use, as it gets very hot. Only hold the pan by the handle.
5. Set the timer to the proper cooking time; then the appliance start to work
6. When you hear the timer bell, the set preparation time has elapsed. Pull the pot out of appliance and place it on a heat-resistant surface.
7. Check if the ingredients are ready. If the ingredients are not ready yet, simply slide the pan back into the appliance and set the timer to a few extra minutes.
8. If the ingredient ready, carefully pull out the pan, and press the basket release button and lift the basket out of pan to remove the ingredients. Don not turn the basket upside down with the pan still attached to it, as any excess oil that has collected on the bottom of the pan will leak onto the ingredients.
9. Empty the basket into a bowl or onto a plate. When a batch of ingredients is ready, the appliance is instantly ready for preparing another batch.

Tips:

• Add some oil on the ingredients for a crispy result..
• Shaking ingredients halfway during the preparation time optimize the end result and can help prevent unevenly fried ingredients. To shake the ingredients, pull the pan out of the appliance by the handle and shake it. Then slide the pan back into the appliance. Do not press the basket release button during shaking.

Care and Maintenance

1. Before cleaning, turn the timer to 0, unplug the appliance and waiting for the appliance to cool down. Don't touch the surface before cooling.
2. Never immerse the device in water or any other liquid. The device is not dishwasher proof.
3. Clean the surface of the fryer pot and basket with with hot water, some washing-up liquid and a non-abrasive sponge. If dirt is stuck to the basket or the bottom of the pan, fill the pan with hot water with some washing-up liquid. Put the basket in the pan and let the pan and basket soak for about 10 minutes.
4. Used damp cloth to wipe the surface of the fryer. Never use harsh and abrasive cleaners, souring pad or steel wool, which damages the device.
5. If you do not use the appliance for a long time, please clean it, and store it in a cool and dry place.

Technical Specifications

1. Rated Voltage: 120V~
2. Rated frequency: 60Hz
3. Rated power: 1800W
4. Fry basket capacity: 5.2L
5. Net weight: 5.2KGS
6. Product Size: 421.5*343*380.7mm

Troubleshooting

Correct Disposal of this appliance:

This marking indicates that this appliance should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
