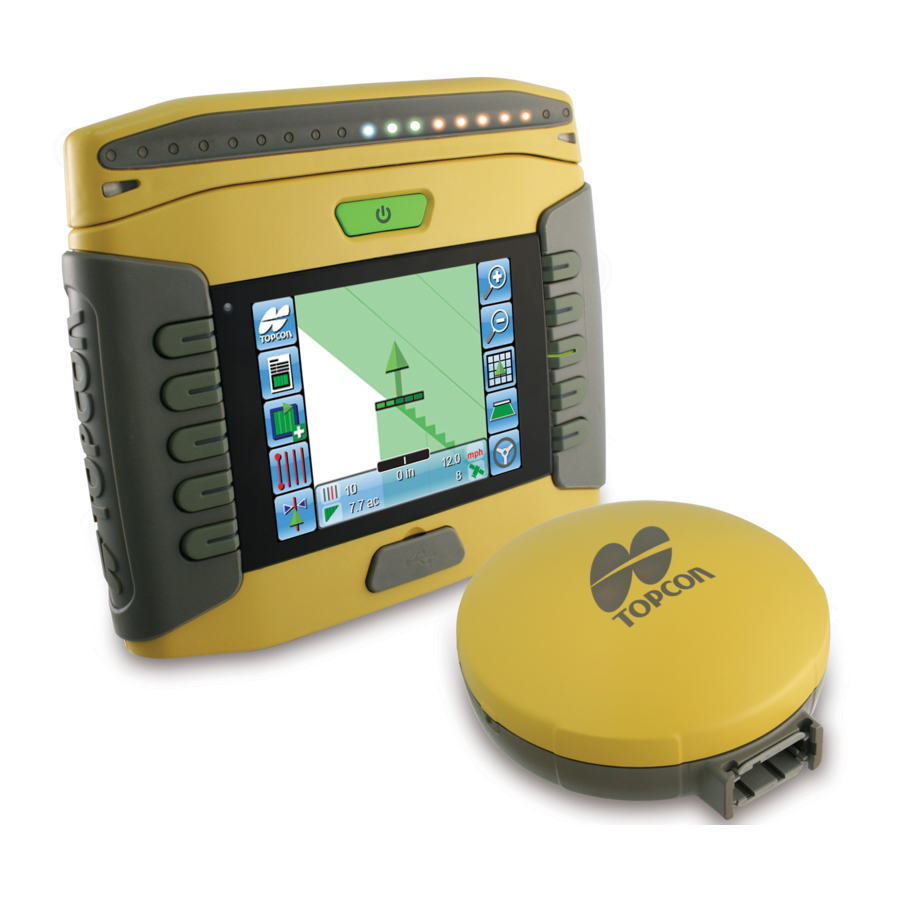

Topcon GX-45, SGR-1 - Console Quick Setup Manual

This quick setup guide is to be used in conjunction with the System 110/150 Operator's Manual P/N AGA3663

SGR-1 to GX-45 Installation Procedure

1. Mount the SGR-1 antenna along the center line on the roof of your tractor.
   The SGR-1 antenna has 3 magnets on its base to secure its position. A metal mounting plate is supplied to secure the antenna to cabin tops that are non-magnetic.
2. Connect the AGH1368 harness to the SGR-1 antenna.
3. Route the AGH1368 harness into the cabin through the rear window of your tractor.
4. Connect the AGH1368 harness to your GX-45 console.

Select the GPS Receiver

1. Select to access GPS Settings.

2. Select to access GPS Receiver selection.

3. Select SGR-1 using the up and down arrows.

4. Select to confirm your selection and the system will restart.

Select the GPS Correction

1. Select to access the GPS Settings screen.

2. Select to access GPS Correction selection.

3. Use the up and down arrows to select the correction system.

4. Select to confirm your selection.
   Refer to the AGA3663 System 110/150 Operator's manual for more information on setting up the different correction systems.
