smart-me 202063 Quick Start Manual

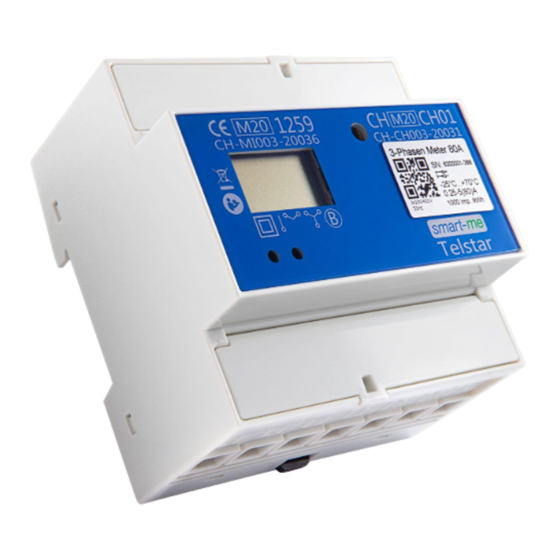

3-Phase Meter 80A
Art. 202063
Riedstrasse 18 | 6343 Rotkreuz | Switzerland
support@smart-me.com | +41 (0) 41 511 09 70
www.smart-me.com
smart-me wiki: dok.smart-me.com
This document was last edited on: 2023-06-22
Installation & Configuration Guide
EN- Scan the QR Code to find the Installation and Configuration guide as well
as additional information
DE- Scanne den QR-Code, um die Installations- und Konfigurationsanleitung
sowie weitere Informationen zu erhalten.
https://web.smart-me.com/202063-qr

Declaration of Conformity

smart-me AG, Riedstrasse 18, CH-6343 Rotkreuz hereby declares that the
smart-me Telstar 80A complies with the following guidelines:
Measuring lnstruments Directive (MID) 2014/32/EU
●
Swiss Ordinances: MessMV 941.210 and EMmV 941.251
●
Radio Equipment Directive (RED) 2014/53/EU
●
EN50470-1 (2006), EN50470-3 (2006), CLC/TR 50579
●
Electrical safety
●
EMF exposure / EMC Electromagnetic Compatibility / Radio spectrum use
●
The CE-symbol confirms that this product conforms
with the above mentioned norms and regulations
Number of quality system approval certificate. Notified Body.
CH-MI003-20036 (MID) METAS-CERT, Lindenweg 50, CH-3003, Bern-Wabern
Find the full-length version by scanning the QR Code on this page.

Safety instructions

The safety instructions must be observed under all circumstances:
The device is intended for use in buildings.
●
The device is intended for operation in a dry, dust-free location without
●
direct sun exposure.
The device is intended exclusively for measuring electrical energy and must
●
not be operated outside of the specified technical data.
Frequent switching on and off can shorten the lifespan of electronic
●
devices. Only set up automatic switching with frequent switching on and
off if the connected devices are designed for this. We are not liable for any
damage to connected devices.
When installing or changing the device, the conductors that are connected
●
to the device must be free of voltage. With CT meters, the secondary side
of the transformer must be short-circuited or the primary side opened,
otherwise high and life-threatening voltages can arise. This may destroy
the transformer and cause life-threatening injuries to people.
Touching live parts is life-threatening! For this reason, the corresponding
●
pre-fuses must be removed and stored in such a way that other people
cannot reinsert them unnoticed.
The device may only be installed by competent and appropriately trained
●
personnel.
The local safety and factory regulations must be observed.
●
For currents greater than 65A, the following cable requirements must be
●
met: T installation cable, blank Cu cable, cross-section: 35mm2
The screws of the cable connections should be tightened with a torque of 3
●
Nm.
smart-me hardware must not be modified or improperly repaired. No liability
●
is accepted for any resulting damage.
The energy meter must be installed in a cabinet with protection class IP51
●
or better
Isolation of the mains connection terminals: Reinforced
●
Isolation of S1, S0-0 and E1 terminal connections: If a terminal with
●
voltages above SELV is used, reinforced insulation is required for all
terminals.
