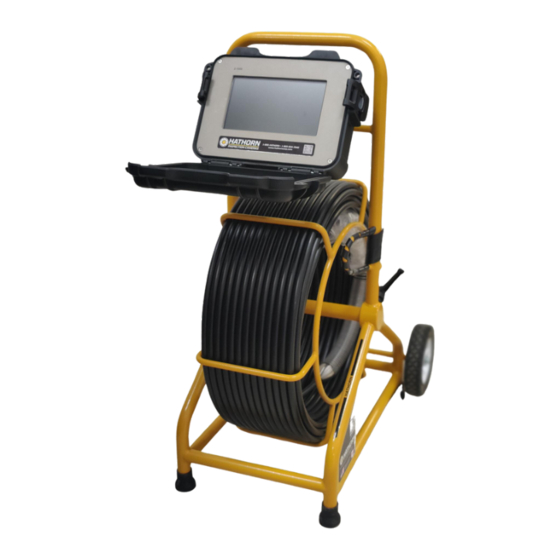

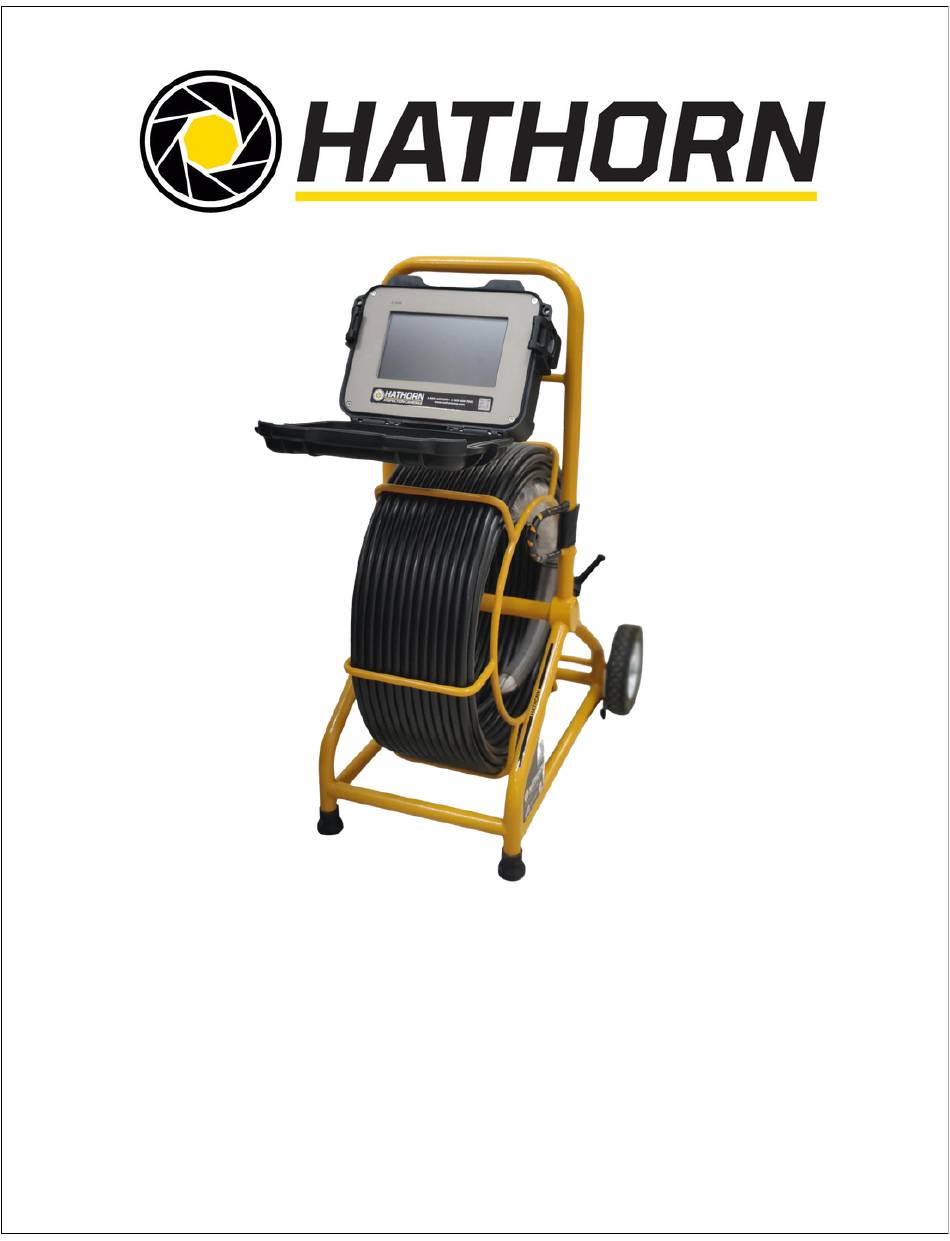

- Page 1 OPERATOR’S MANUAL FOR H2 CONTROLLER For Safe and Effective Operation: Before operation of your system, it is advised that this manual be read carefully.
-
Page 3: Table Of Contents
CONTENTS PAGE 4 LIMITED WARRANTY LIMITATION OF WARRANTY/ SERVICE/ PAGE 5 FREIGHT PRODUCT SPECIFICATIONS PAGE 6 FEATURE IDENTIFICATION PAGE 7-8 USER INSTRUCTIONS PAGE 9 INSPECTION PROCEDURE PAGE 10 LOCATING THE SONDE PAGE 11 MAINTENANCE PAGE 12 REPAIR FACILITIES IN USA & CANADA PAGE 13-14... -
Page 4: Limited Warranty
Hathorn® products. Hathorn® assumes no responsibility for other’s use or misuse of its products. Hathorn® Corporation assumes no... - Page 5 By purchasing a Hathorn® Corporation product, you accept the terms of this limited warranty. You also agree that Hathorn® Corporation shall have no liability to you or any end user for any damages resulting from delay or loss of use of the product due to failure of the product within the warranty period, or otherwise, or in service or repair.
- Page 6 PRODUCT SPECIFICATIONS Weight 45lbs Length x Width x Depth 33" X 19" X 16" Power AC/DC Adapter 12V - 4.1A Battery Only Milwaukee® M18 18V or equivalent Battery Life ~5hrs using 3.0Ah (not recording & sonde off) Battery Extender Yes with on-screen battery display Display Type Impact-resistant LCD...
-
Page 7: Feature Identification
FEATURE IDENTIFICATION Battery Mount on Back 18V Battery Cradle and AC/ DC Adapter Power Input... - Page 8 FEATURE IDENTIFICATION Multi-Function button on the side: resets footage 7” LCD counter Screen turns Sonde on/off LED Lights Sapphire Camera Window Plastic Skid/Sleeve...
-
Page 9: User Instructions
USER INSTRUCTIONS Turning Your Monitor On Insert the battery to turn on the controller and initiate the display. System will turn on automatically. Note: It is good practice to remove batteries from electronic equipment after use. Failure to do so may result in the batteries being drained over extended periods. -
Page 10: Inspection Procedure
INSPECTION PROCEDURE Skids or sleeves should ALWAYS be used to protect the camera head. Depending on the size of the pipe you are inspecting, you may need to use a skid, so the camera is centered or off the floor of the line. Care should be taken so the skids do not snag in the line. -
Page 11: Locating The Sonde
LOCATING THE SONDE SIGNAL (512HZ) Insert the sonde into the drain and locate it while it is still just in view at the drain or duct entrance. Hold the locator vertically - directly over the sonde with the antenna in line with the sonde. Adjust the locator sensitivity so the bar graph reads between 60% and 80%. -
Page 12: Maintenance
MAINTENANCE Inspection Camera - After every use, the camera should be cleaned and checked for possible damage. External scuffing of the camera case is normal and should be of no concern. The camera view port is made of sapphire and should be cleaned with a soft, damp cloth. Grease, dirt or scratches will affect the quality of the video and if the lens is badly scratched it should be replaced. - Page 13 REPAIR FACILITIES - USA Repairs, warranty or otherwise, returned to must be submitted with a “Return Maintenance Authorization.” For “RMAs” please contact: Hathorn USA Address: 739 North Wilson Road, Columbus, OH, 43204 Phone: 1-855-863-9226 FAX: 1-905-604-3400 Email: usaservice@hathorncorp.com Website: www.hathorncorp.com Kaiser Premier USA –...
- Page 14 Repairs, warranty or otherwise, returned to must be submitted with a “Return Maintenance Authorization.” For “RMAs” please contact: Hathorn Canada - Ontario, Manitoba & Eastern Canada Address: 255 Shields Court, Unit C, Markham, ON L3R 8V2 Phone: 1-905-604-7040 FAX: 1-905-604-3400 Email: service@hathorncorp.com...
- Page 16 Hathorn Canada 255 Shields Court, Unit C Markham, Ontario, Canada L3R 8V2 +1 (866) HATHORN Hathorn USA 739 North Wilson Road Columbus, Ohio, USA...
