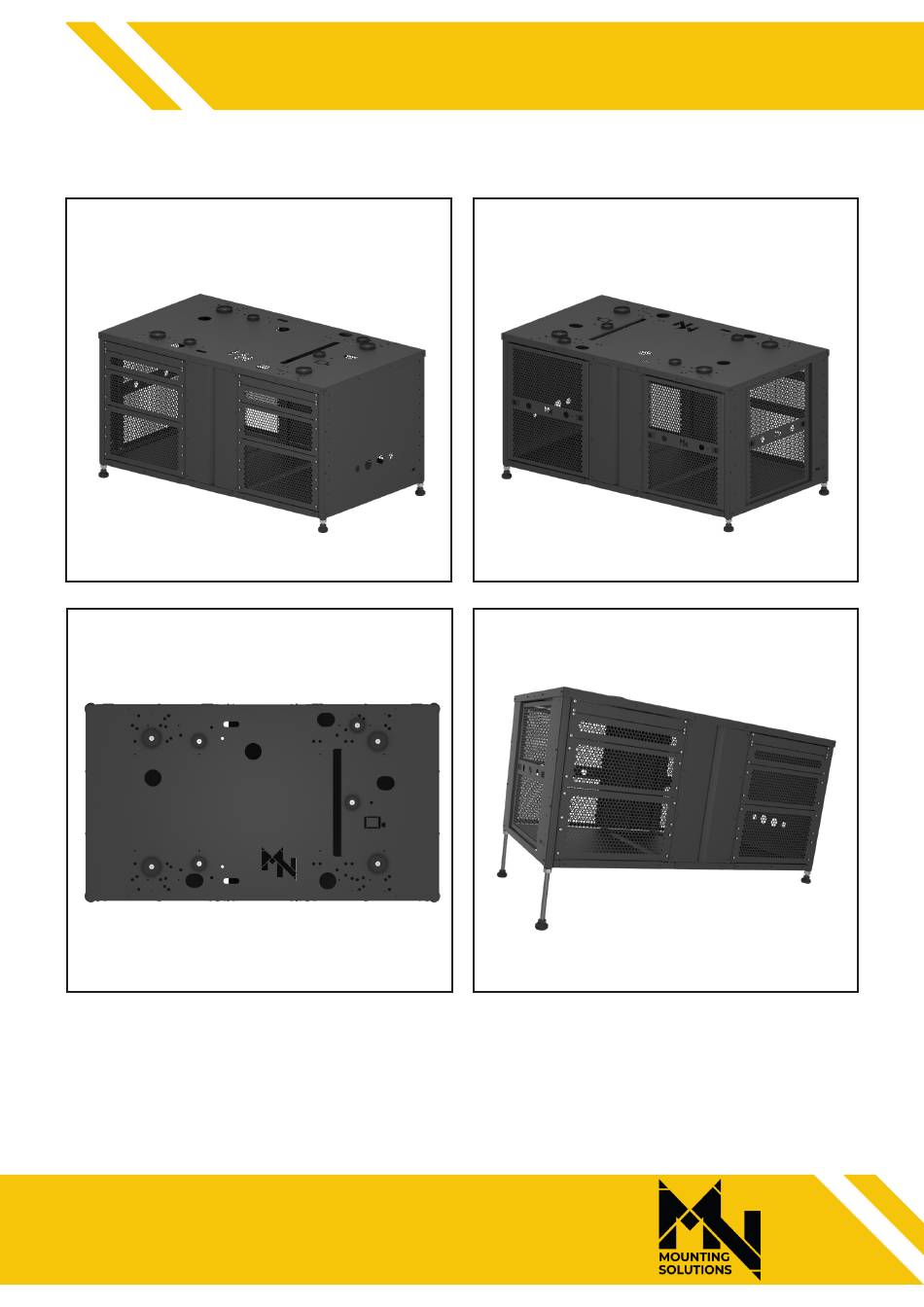

Assembly Guide for Projector Pedestals Long
SAFETY INSTRUCTIONS
1. Entrust mounting equipment only to experienced professionals and strictly follow the providedv safety
instructions. Improperly installed equipment may result in property damage, personal injury and/or liability for the
installing contractor.
2. Only use appropriate fastening hardware.
3. Always make sure to securely use and lock all mounting bolts. Loose bolts may become unscrewed over time due
to vibration which will then create a safety hazard.
www.mnmounting.com
info@mnmounting.com
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine
Assembly Guide
PAP Long
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mounting Solutions PAP Long Series
Summary of Contents for Mounting Solutions PAP Long Series
- Page 1 Assembly Guide PAP Long Assembly Guide for Projector Pedestals Long SAFETY INSTRUCTIONS 1. Entrust mounting equipment only to experienced professionals and strictly follow the providedv safety instructions. Improperly installed equipment may result in property damage, personal injury and/or liability for the installing contractor.
- Page 2 Assembly Guide PAP Long Assembly components: Frame - 2 pcs Adjustable Leg - 4 pcs M4x10 thread cutting screws Bottom Shelf - 2 pcs Rack Rail (RR-1U) - 2 pcs Bottom Center Shelf - 1 pcs M6 rack screw pack Top Plate - 1 pcs Steel Cup, (SG-50) - 4 pcs Back Cover - 1 pcs...
- Page 3 Assembly Guide PAP Long Assembly Instructions: 2. Install Shelves ( ) in 1. Start the assembly by installing Frames ( ), without fixing them with Legs ( ) into both Frames ( screws. Attention!!! FRONT REAR 3. Install the Top Plate ( ) onto Pay attention to the orientation Top Frames (...
- Page 4 Assembly Guide PAP Long 4. Install the Side ( 5. Install the Back ( ) covers without ) and the Front fixing them with screws. ) covers. Pay attention that the Covers must Pay attention that the Covers must go under the edge of the Top Plate. go under the edge of the Top Plate.
- Page 5 Assembly Guide PAP Long 9. Before setting up the projector, install Steel Cups ( ), according to the hole pattern shown below, by 8. Determine the location for the fixing them on Top Plate ( ) with media server, and install there Rack Mounting kit М10 ( Rails ( ) by fixing them to the side...
- Page 6 Assembly Guide PAP Long Hole pattern Barco projectors Hole pattern Christie projectors Christie CP 2220/2230; CP 4220/4230, CP2420-XE, CP4420-XE (position 1, 2, 3) Barco E - series Christie SolariaONE; CP2306/2308/2310, CP2415-XE Barco S, C, SLP, CLP - series SP2K - series, SP4K- series (position 1, 2) Christie CP 2309/2315/2320, CP2420-RGB, CP2415-RGB Barco B, BLP, L - series SP4K-27/35/40/55 - series (position 1, 2)
- Page 7 Assembly Guide PAP Long ACCESSORIES RC-1U RCV-2U RCV-4U Rack Blank, 1U height Vented Rack Blank, 2U height Vented Rack Blank, 4U height (2 pcs included) (2 pcs included) (2 pcs included) RCHV-13U RR-1U RCV-6U Hinged Rack Mount Vented Cover, Rack rail for media server, UPS or other Vented Rack Blank, 6U height 13U height heavy devices, 1U height...
