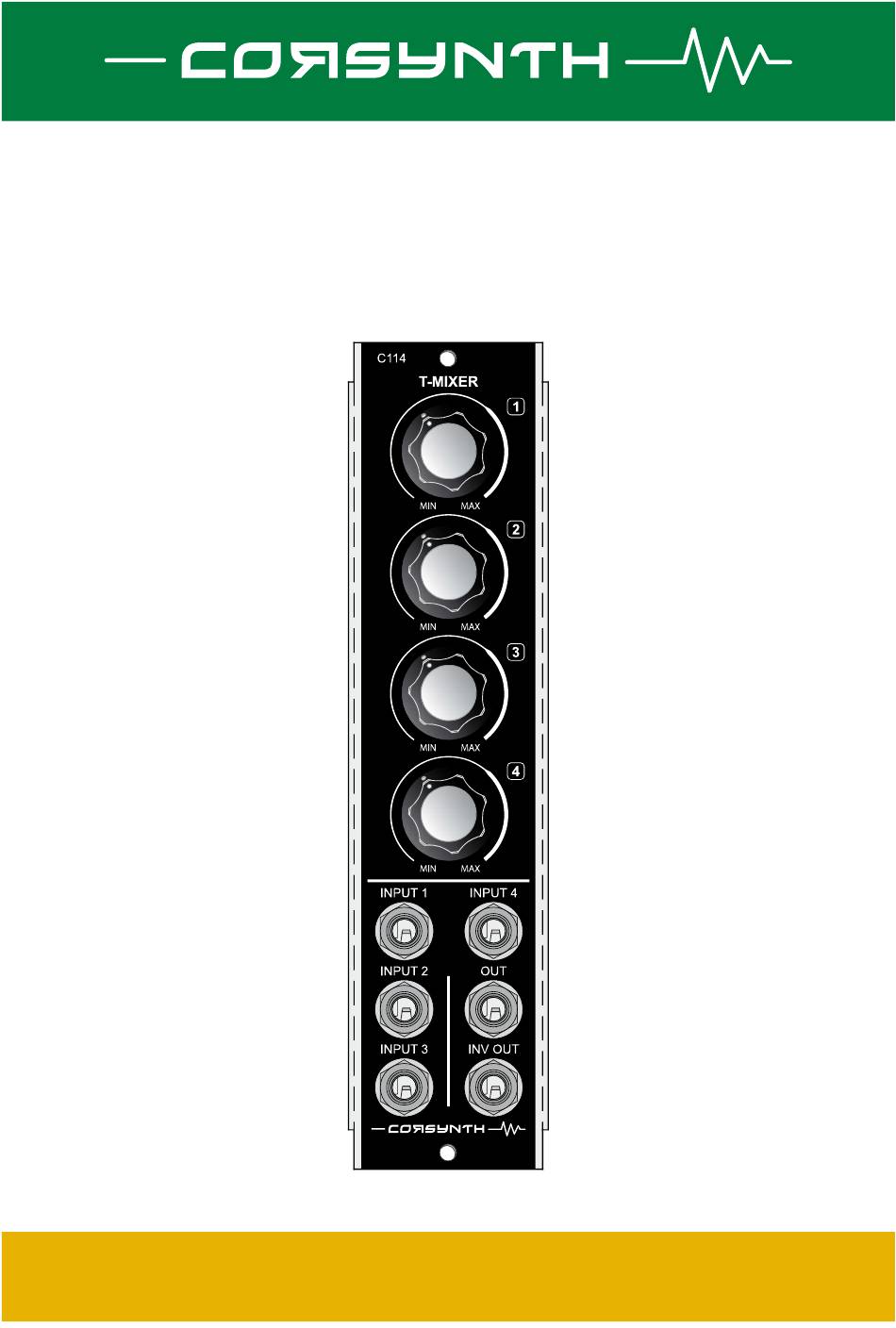

- Page 1 C114 T-Mixer USER MANUAL...
- Page 2 The mixer has two outputs , one normal and the other one inverted and each output has different distortion characteristics. The C114 can be used with audio and CV signals. C114 T-Mixer main characteristics : - transistor based mixer - 4 channels - 2 mixer outputs (one inverted) HTTP://WWW.CORSYNTH.COM...

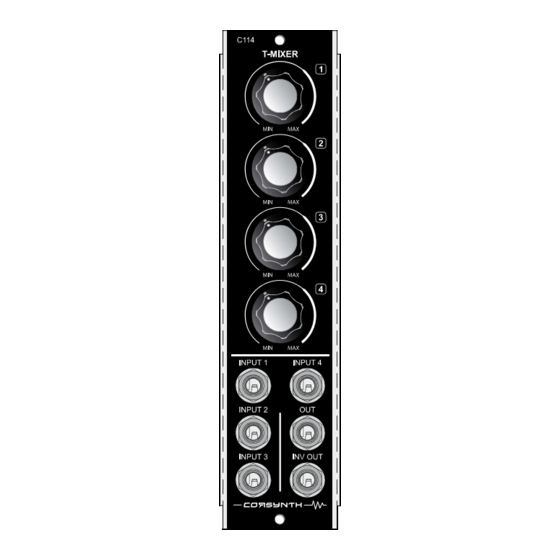

- Page 3 T-MIXER C114 T-MIXER Front Panel Channel 1 level Channel 2 level Channel 3 level Channel 4 level Mixer input 1 Mixer input 4 Mixer input 2 Mixer output Mixer input 3 Inverted mixer output HTTP://WWW.CORSYNTH.COM...
- Page 4 This knob sets the level for the mixer channel 4 . A signal of +/-5V will be at unity gain ( input equal to the output) where the dial line gets thicker. From that point the mixer will add distor- tion to the incoming signal. HTTP://WWW.CORSYNTH.COM...
- Page 5 Mixer input 4. It accepts audio and CV signals. Mixer output. The mixer will start to distort if the sum of the input signals exceeds 10Vpp. (+/-5V) INV OUT INV OUT Inverted mixer output. This output inverts de polarity of the inco- ming singal. HTTP://WWW.CORSYNTH.COM...
- Page 6 Module Format : 5U, MU format ( Synthesizers.com, Moog ) Module Width : 1 MU ( Moog unit ) Module Depth : 52 mm ( 2,05 inches ) Power : +15V35@mA , -15V34@mA Power connectors : MU, MOTM ( 4 pin ) HTTP://WWW.CORSYNTH.COM...
- Page 7 MODULAR LEVEL MODULAR SYNTHS HTTP://WWW.CORSYNTH.COM...
