C107 QUAD LINEAR VCA
USER MANUAL
VC MIXER
C107
QUAD LINEAR VCA / VC MIXER
CV LEVEL
CV IN
VCA IN
MIN
CV LEVEL
CV IN
VCA IN
MIN
CV LEVEL
CV IN
VCA IN
MIN
CV LEVEL
CV IN
VCA IN
MIN
1+2
3+4
VCA 1 OUT
VCA 2 OUT
VCA 3 OUT
GAIN
VCA 1
0
1
MAX
GAIN
VCA 2
0
1
MAX
GAIN
VCA 3
0
1
MAX
GAIN
VCA 4
0
1
MAX
1+2+3
MIX OUT
VCA 4 OUT
Advertisement
Table of Contents
Related Manuals for Corsynth C107
Summary of Contents for Corsynth C107

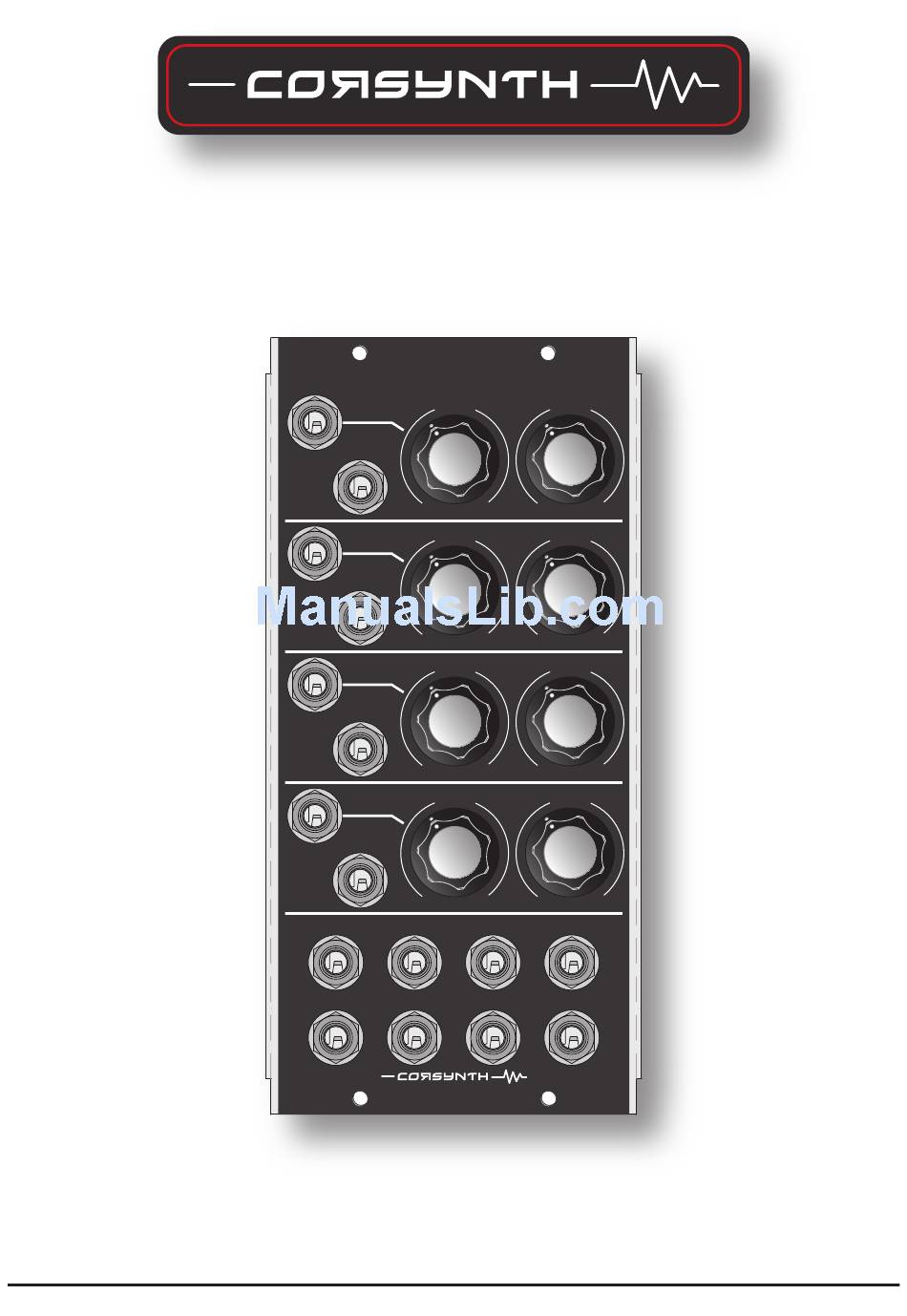

- Page 1 C107 QUAD LINEAR VCA VC MIXER C107 QUAD LINEAR VCA / VC MIXER CV LEVEL GAIN VCA 1 CV IN VCA IN CV LEVEL GAIN VCA 2 CV IN VCA IN CV LEVEL GAIN VCA 3 CV IN VCA IN...
- Page 2 C107 Quad Linear VCA / VC MIxer C107 Quad linear VCA / VC MIxer The C107 Quad Linear VCA / VC Mixer is a combination of four voltage controlled ampli ers and four mixers. This module is really useful either in big modular synthesizers or small / medium size systems.
-
Page 3: Front Panel
C107 Quad Linear VCA / VC MIxer C107 Quad Linear VCA / VC Mixer Front Panel C107 Control voltage QUAD LINEAR VCA / VC MIXER level (VCA 1) CV LEVEL GAIN VCA 1 CV IN Control voltage input (VCA1) Initial gain... -
Page 4: Control Description
C107 Quad Linear VCA / VC MIxer CONTROL DESCRIPTION THESE CONTROLS ARE THE SAME FOR ALL VCAs GAIN GAIN This potentiometer sets the initial gain of the VCA. If there is not CV signal connected to the VCA : 0 = The VCA is closed and there is no signal at the output. - Page 5 C107 Quad Linear VCA / VC MIxer VCA 3 + VCA 4 mix output 1+2+3 1+2+3 VCA1 + VCA 2 + VCA 3 mix output MIX OUT MIX OUT VCA1 + VCA 2 + VCA 3 + VCA 4 mix output...
-
Page 6: Block Diagram
C107 Quad Linear VCA / VC MIxer BLOCK DIAGRAM VCA 1 VCA 2 VCA 3 VCA 4 HTTP://WWW.CORSYNTH.COM... -
Page 7: Technical Data
C107 Quad Linear VCA / VC MIxer Trimmers and power connectors CV Reject (VCA 2) IMPORTANT !!!! CV Reject (VCA 1) This module has two power connec- tors (Synthesizers.com and MOTM). Only one is needed to power the Initial Gain (VCA 1) module. - Page 8 C107 Quad Linear VCA / VC MIxer MODULAR LEVEL MODULAR SYNTHS HTTP://WWW.CORSYNTH.COM...
