XPOtool 64076 Operation Manual

Ground drill
Hide thumbs

Advertisement

Quick Links

Download this manual
Operation Manual
Ground Drill
64076
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 64076 and is the answer not in the manual?

Questions and answers

Related Manuals for XPOtool 64076

Summary of Contents for XPOtool 64076

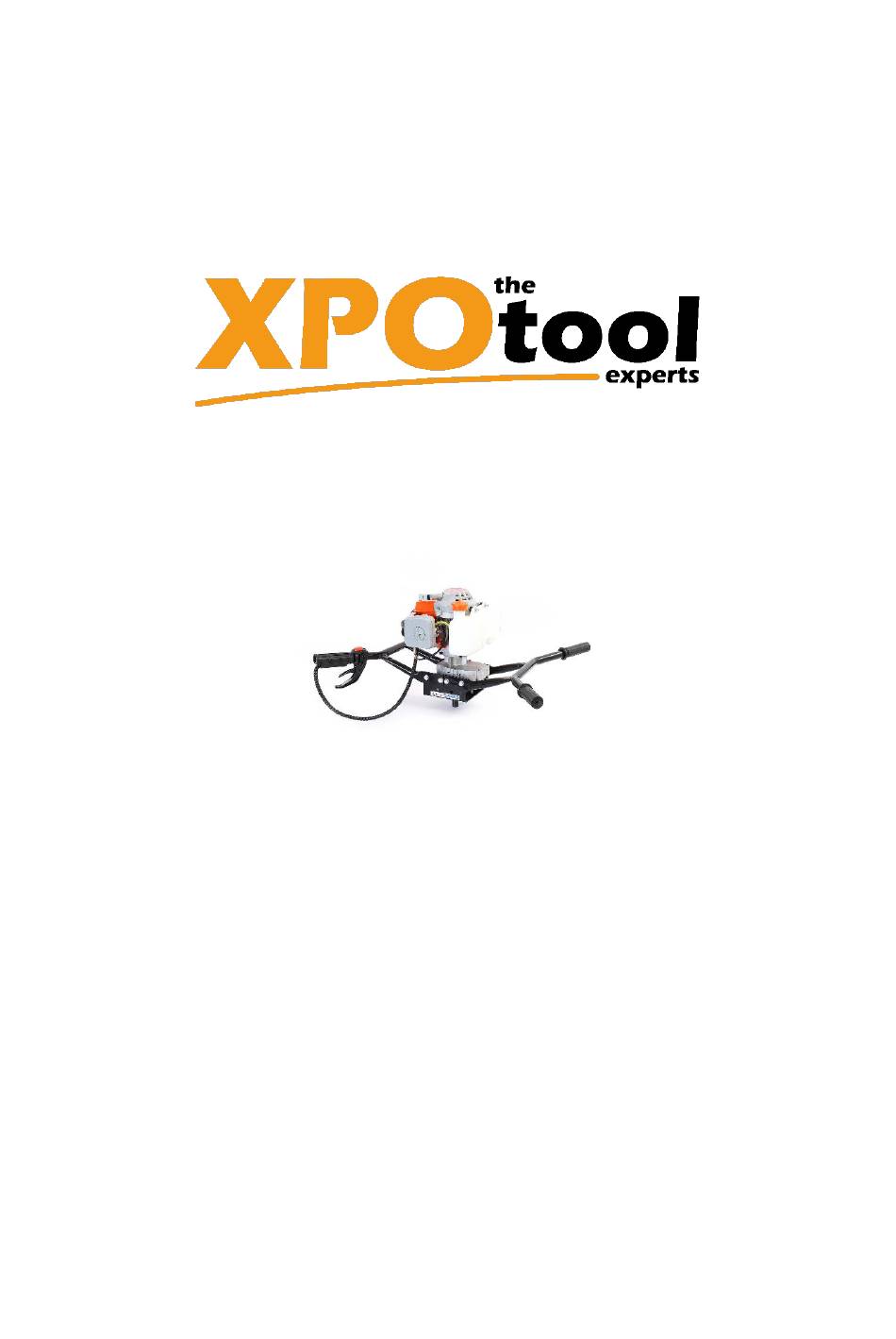

  • Page 1 Operation Manual Ground Drill 64076 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
  • Page 2 To allow for a smooth execution of your complaint or return, it is important to contact our customer service team before returning the goods. Returns Department WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler E-mail: service@wiltec.info Tel: +49 2403 55592–0 Fax: +49 2403 55592–15 https://www.XPOtool.com Item 64076 Page 2 The Tool Experts 2023-1...
  • Page 3 Do not wear loose clothing or accessories, which could be gripped by the moving parts of the drill. Long hair must be tied up or covered with a snood-type cap, and protective clothes should be worn. https://www.XPOtool.com Item 64076 Page 3 The Tool Experts 2023-1...
  • Page 4 The device can only be disposed of at an official dumpsite or collection station. The device must not be put into the domestic refuse. • Clean and maintain the device on a regular basis and only use suitable spare parts of equal quality. https://www.XPOtool.com Item 64076 Page 4 The Tool Experts 2023-1...
  • Page 5 3. Bring the handle bars into their operating positions by unfolding them and lock them in place by screwing them to the connecting plate (Fig. 3) using the screws and nuts that were previously removed. https://www.XPOtool.com Item 64076 Page 5 The Tool Experts 2023-1...
  • Page 6 4. Connect the auger (Fig. 4, D) to the device by placing it onto the shaft (Fig. 4, E) and secure it with the help of the bolt (Fig. 4, F) and the cotter pin (Fig. 4, G). https://www.XPOtool.com Item 64076 Page 6 The Tool Experts...
  • Page 7 Name № Name № Name Motor Left handle bar Cotter pin Control handle Base plate Bolt Right handle bar Gasket Screw Auger Connecting plate Handle Fixture Screw Gearbox Base plate Screw https://www.XPOtool.com Item 64076 Page 7 The Tool Experts 2023-1...
  • Page 8 № Name № Name Starter Auger Fuel tank Control handle Left handle bar Right handle bar Gearbox Motor Handle https://www.XPOtool.com Item 64076 Page 8 The Tool Experts 2023-1...
  • Page 9 Never fill the fuel tank while the motor is operating and instead ensure that the motor has been turned off before placing the device on an even ground in order to prevent two-stroke mixture from spilling in the process. https://www.XPOtool.com Item 64076 Page 9 The Tool Experts 2023-1...
  • Page 10 Do not use the inductor if the engine is already warm. The inductor is only used to perform cold starts. Also, the auger must not rotate while the motor is operating in idle mode. https://www.XPOtool.com Item 64076 Page 10 The Tool Experts...
  • Page 11 Make sure to regularly check the petrol filter (Fig. 15, U) and replace it immediately, in case of it being heavily polluted. A polluted petrol filter may cause issues while starting the device as well as a loss of performance. https://www.XPOtool.com Item 64076 Page 11 The Tool Experts 2023-1...
  • Page 12 (Fig. 17). You can select different kinds of bits as required (Abb. 17, Abb. 19) and the length of the bit is within 1 m. https://www.XPOtool.com Item 64076 Page 12 The Tool Experts...
  • Page 13 If used normally, the valve cap (Fig. 20, W) must be checked and cleaned after every 50 hours of oper- ation. Every 100 hours of operation, the gear grease must be exchanged (Fig. 20, 1; 180 g). https://www.XPOtool.com Item 64076 Page 13 The Tool Experts...

  • Page 14: Troubleshooting

    Fasten or replace the gasket. Functional compression Fuel is watery Replace the fuel. with ignition spark Filter plate is clogged Clean the filter plate. Exhaust pipe / cylinder is polluted Clean. https://www.XPOtool.com Item 64076 Page 14 The Tool Experts 2023-1...
