Summary of Contents for FULGOR DWF8010

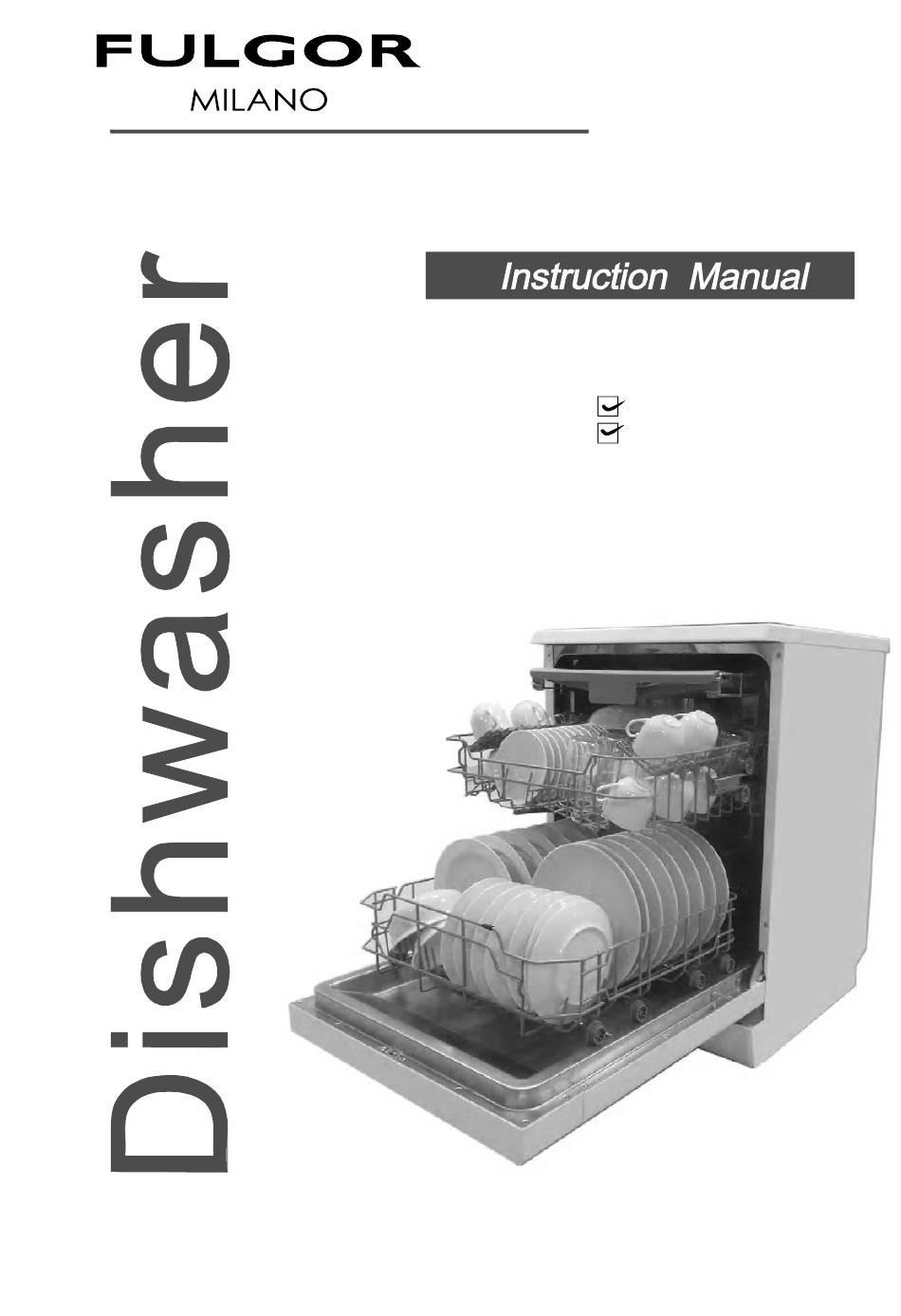

- Page 1 DWF8010 14 place settings Alt function www.fulgor.com.au...
- Page 2 For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Open the door, press the On/Off button to switch on the appliance. With each wash cycle. Compartment Fill the detergent dispenser For programmes with pre-wash only. (Follow the user instructions!) Check the rinse aid level Electric indicator on control panel (if provided).
- Page 3 Dear Customer, Control Panel...........2 This appliance is in tended to be used in household Dishwash er Features........2 and similar applications such as: -staff kitch en areas in shop s, offices and other working environme nts; -farm hous es; 、 -by clients in hotels, motels and othe r residential A F ill the Rinse Aid Dispenser.....
- Page 4 When using your dishwasher, follow the precautions listed below: This appliance must be grounded. In the event of a Improper connection of the equipment-grounding malfunction or breakdown, grounding will reduce conductor can result in the risk of an electric shock. the risk of an electric shock by providing a path of Check with a qualified electrician or service least resistance of electric current.
- Page 5 To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Program Button : To Press the button to select On/Off Button: To turn on/off the power supply. appropriate Program. Delay Button : To Press the button to delay. Alt Button: Dual zone wash function, press the Display screen : to sho w the remaining time button to select either upper basket or lower basket...
- Page 6 Before using your dishwas her for the first time: Fill th e rinse a id dispenser Fill in detergent Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks.
- Page 7 Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to repla ce the cap before you close dishwasher door. Adjusting Rinse Aid Dispenser The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4".
- Page 8 Amount of Detergent to Use Detergent powder Detergent tablet If th e lid is close d: press rele ase button. The lid will spring ope n. Always add the dete rgent just before starting each wash cycle. Only use branded detergent aid for d ishwash er. Dishwasher detergent is corrosive! Take care to keep it ou t of reach of c hildren.
- Page 9 Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take gla ss a nd c utlery out of the dishwasher immediately after the programme h as ended.
- Page 10 The u pper basket is designed to hold more delicate We suggest that you place large items and the most and lighter dishware such as glasses, coffee and difficult to clea n ite ms are to be placed into the lo wer tea cups and saucers, as well as plates, small bowls basket: such as pots, pans, lids, se rving dishes and and shallow pans (as long as they are not too dirty).
- Page 11 Cutlery basket has 5 positions: Mode 1 Position one: lift the left basket up, both left and right baskets are slanting. Mode 2 Position two: adjust the left basket to lower position, left basket is flat and right basket is slanting. Mode 3 Position three: lift the right basket up, both left and right baskets are flat.
- Page 12 Means: need to fill rinse into the Rinse-Aid Dispenser. ℃ Pre-wash(50 ) For the heaviest soiled ℃ Wash (65 loads, such as pots, pans, Rinse 5/27 .5g casserole dishes and dishes Intensive 16.5 Rinse (Or All that have been sitting with ℃...
- Page 13 Premis e: A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the d etergent may have already been relea sed, and the appliance may have already drain ed the wash water. If this is the case, th e detergent dispenser must be refilled (see the section entitled "...
- Page 14 The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter, a flat (Main filter) And a microfilter(Fine filter).
- Page 15 Remarks: - Inspect the filters for blo cking a fter e very time the dishwa sher has been used. - By unscrewing the coarse filter, you can remove the filter system. Re move any foo d remna nts and clean the filters under running water. The entire filter assembly should be cleaned once a week.
- Page 16 When not in Use for a LongTime After Every Wash It is recommend that you run a was h cy cle with the After every wash, turn off the water supply to the dishwasher empty an d the n remove the plug from the appliance and leave the door slightly open so that socket, turn off the wa ter supply and leave the door of moisture and odours are not trapped inside.
- Page 17 Improper connection of the equipment earthing conductor can result in the risk of an for personal safety: electric shock. DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE. Check with a qualified electrician or service representative if you are in doubt whether the DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING appliance is properly earthed.
- Page 18 Drain hose Connection Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm. PLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, B PLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, B Front...
- Page 19 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker tripped appliances sharing the same circuit with the dishwasher Make sure the dishwasher is turned on and the door is Power supply is not turned on closed securely.
- Page 20 The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table . " Not enough detergent Use more detergent, or change your detergent. was dispensed.
- Page 21 If overflow occurs, turn off the main water supply before calling a service. If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher. Height : 845mm Width : 598 mm (with the door closed)
