Advoli TA4E PERFORMANCE - Graphics Card Quick Start Guide

EQUIPMENTS LIST

• 1 x USB 9-Pin Cable
• 1 x USB 3.0 to 2.0 Adapter Card

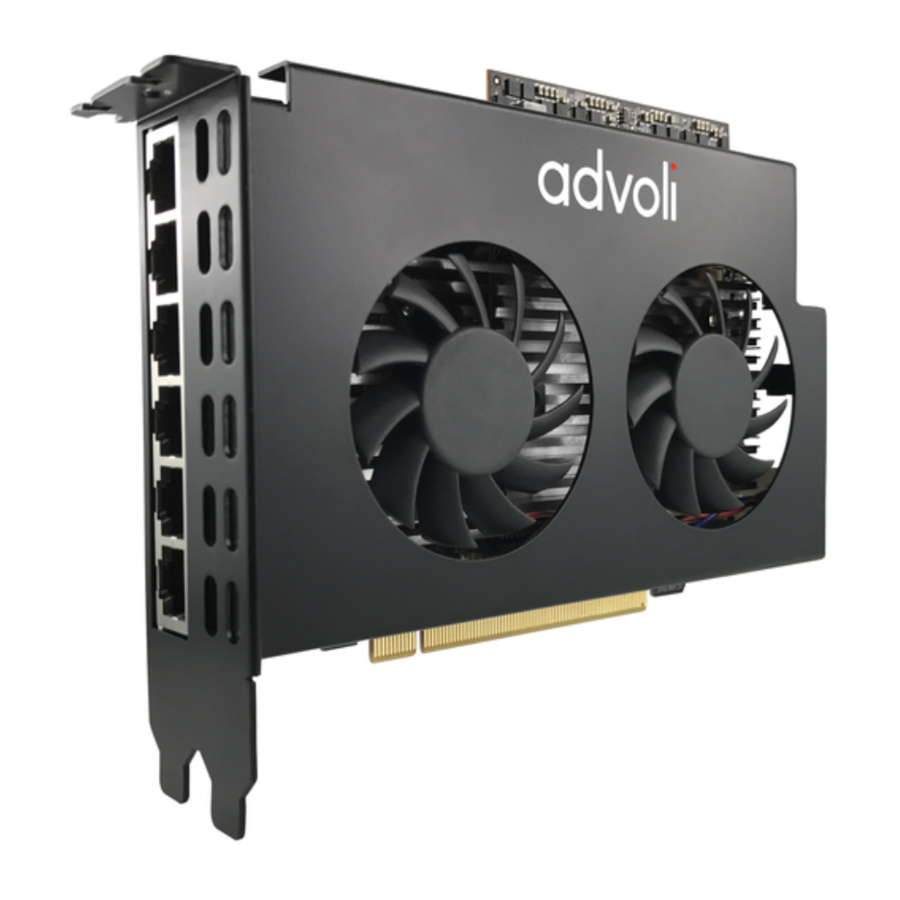

• 1 x advoli^TM TA4E Performance graphics card, with MXM module and Fan Sink + Casing

FEATURES

• Drive 4 x 4K2K Displays at one time at a distance of up to 100 meters / 328 feet using shielded CAT cables
• AMD Ultra-High Performance Embedded GPU E9550
• Emulated universal IR emitter and decoder for each HDBaseT port. Physical bidirectional IR ports for IR pass-through
• Emulated RS232 for all four HDBaseT ports
• Emulated CEC Analyser for all four HDBaseT ports
• Ethernet Switch on two ports and ethernet pass through on HDBaseT ports
• Environmental Diagnostics
• Passive and Active HDBaseT Tester for all four HDBaseT channels
• EDID emulation, cloning and lock functionality in serial console
• Power over HDBaseT / Ethernet (PoH / PoE) 48V 0.5A for each channel to power advoli HDBaseT receivers.

MUST ITEMS

• Read the full installation guide before beginning, it can be found at: http://www.advoli.com/ta4eperformance/
  Why? You will make mistakes and you need to read the warnings and safety related items!
• For troubleshooting & questions, please go to: http://www.advoli.com/support/
• For drivers, please go to: http://www.advoli.com/drivers/
• We highly recommend to start with a fresh installation of your operating system as drivers of other graphics cards are highly likely to interfere with driver of the TA4E Performance.

CONNECTION

HARDWARE INSTALLATION

READ ALL SAFETY DIRECTIONS & WARNINGS IN THE COMPLETE INSTALLATION GUIDE LOCATED ON THE PRODUCT WEBSITE, BEFORE INSTALLING. ENSURE YOUR COMPUTER IS SWITCHED OFF AND ALL POWER CABLES ARE REMOVED FROM THE SYSTEM BEFORE PROCEEDING WITH INSTALLATION


1. Remove any static electricity on your body before touching any electronic component.
2. Turn off and unplug the power cord to your computer and all of its peripherals. Wait for your system to cool down before proceeding.
3. Carefully insert the advoli^TM TA4E Performance graphics card in the primary PCI express x16 slot. Ensure graphics card is firmly secured.
4. Connect one 6-pin PCI Express auxiliary power connector to the top right edge of the advoli^TM TA4E Performance graphics card where there is a power connector.
5. Connect one 9-pin cable that comes with the advoli^TM TA4E Performance graphics card to the to the top right edge of the advoli^TM TA4E Performance graphics card and the other end of the cable to the motherboard USB 2.0 9-pin header. Use the converter board that comes along with the cable if your motherboard only has USB 3.0 header.
6. Close the computer casing/panel once you have completed the installation of the advoli^TM TA4E Performance graphics card. You may now power up your computer.
7. Install driver from advoli website: www.advoli.com/drivers/ It is advised to use an already existing HDMI/VGA connector on the motherboard with a paired monitor to setup the driver for the graphics cards.
8. You will need to have CAT 5e/6/7/+ cables in at least one of the four RJ45 sockets with a HDBaseT^TM certified display or HDBaseT^TM certified receiver connected to a display in order to use the HDBaseT^TM certified advoli^TM TA4E Performance graphics card. You may use all four RJ45 sockets paired with their own display respectively. It is advised to use HDBaseT^TM certified receivers to ensure compatibility. We highly recommend the advoli^TM HDBaseT RA1 Performance receiver for guaranteed performance, please note that the RA1 does not have ethernet.
9. For further information on installing and using the product please go to the product page on advoli website for the complete installation guide.
