Advoli TA6 PERFORMANCE Installation Manual

Hide thumbs Also See for TA6 PERFORMANCE:
Table of Contents

Advertisement

Quick Links

Download this manual
TM

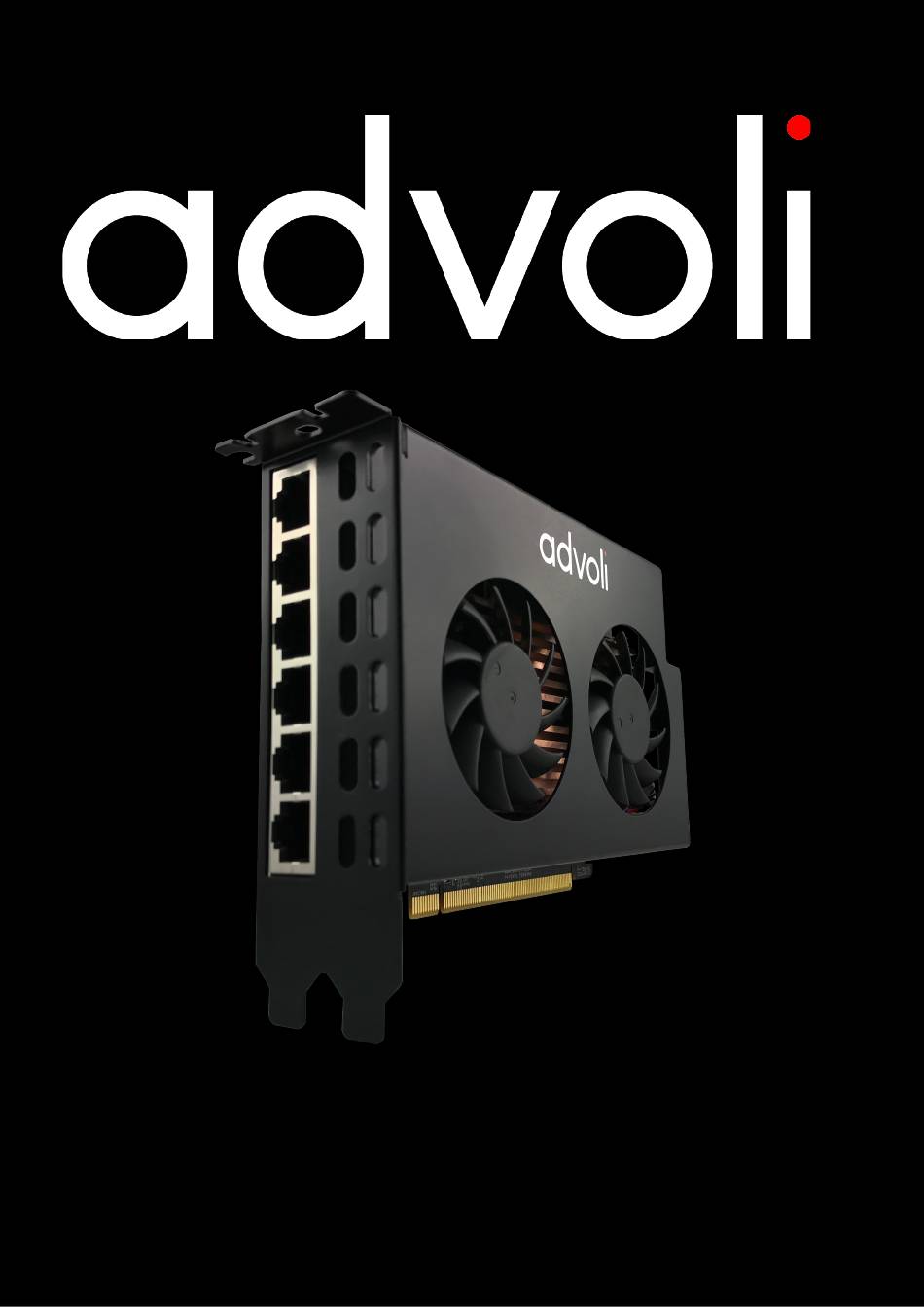

ADVOLI TA6 PERFORMANCE
TM
INSTALLATION GUIDE
Page
1
of
22
TA6P-V2-12-09-2018
HDBaseT Certified Product
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TA6 PERFORMANCE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advoli TA6 PERFORMANCE

Summary of Contents for Advoli TA6 PERFORMANCE

  • Page 1 ADVOLI TA6 PERFORMANCE INSTALLATION GUIDE Page TA6P-V2-12-09-2018 HDBaseT Certified Product...

  • Page 2: Table Of Contents

    System Requirements UNPACKING Equipment List HARDWARE INSTALLATIONS 7 - 10 Safety Instructions Before You Begin 7 - 10 Installing the advoli TA6 Performance Graphics Card DRIVER INSTALLATIONS CONFIGURING AUDIO Enabling Audio over CAT 14-17 CONSOLE USER GUIDE Configuring Console 14-17 18-19...

  • Page 3: Introduction

    _
 INTRODUCTION Thank you for your support in our quest to innovate. We are proud to present the advoli TA6 Performance graphics card, the world’s first HDBaseT certified graphics card delivering unparalleled functionality compared to any other video card. The advoli TA6 Performance graphics card was designed with optimal flexibility and functionality.

  • Page 4: About This Guide

    TA6 Performance graphics card. Please make sure that you register your product by scanning the QR code attached to the advoli Performance graphics card. The QR code will lead you directly to our website to fill out the registration form. By registering your product you will receive faster support services.

  • Page 5: System Requirements

    We recommend SSD hard drive with fast read speed, with minimum 6 Gb/s, read 560 MB/s, write 520 MB/s System Power Supply:
 Minimum 500 W with one unused 6-pin 12V PCI Express power connector per TA6 Performance graphics card. Software:
...

  • Page 6: Unpacking

    UNPACKING EQUIPMENT LIST USB Cable USB 3.0 to 2.0 Converter Card
 advoli TA6 Performance graphics card, with MXM module and Fan Sink + Casing Quick Start Guide
 Quick guide on installing advoli TA6 Performance graphics card
 Link to advoli website for drivers.
...

  • Page 7: Hardware Installations

    HARDWARE INSTALLATION Installing the advoli TA6 Performance graphics card is simple, however it is important that you follow all the safety instructions outlined in this document to ensure that you, your computer and the graphics card are not damaged. Improper use of electronic products may cause serious material and personal damage.
  • Page 8 Performance graphics card driver causing it from working effectively and degrade GPU performance. Carefully insert the advoli TA6 Performance graphics card in the primary PCI express x16 slot. If you have multiple PCI express x16 expansion slots ensure you are using the primary. Please consult the documentation for your motherboard to ensure you have selected the right slot.
  • Page 9 firmly screwed to the computer chassis.
 Connect one 6-pin PCI Express auxiliary power connector to the top right edge of the advoli Performance graphics card where there is a power connector. If the connector does not fit, please do not force the connector, but ensure that you are properly matching the connector with the socket on the graphics card.
...
  • Page 10 HDBaseT certified advoli TA6 Performance graphics card. You may use all six RJ45 sockets paired with their own display respectively. It is advised to use HDBaseT certified receivers to ensure compatibility. We highly recommend the advoli HDBaseT RA1 Performance receiver for guaranteed compatibility.

  • Page 11: Driver Installations

    _
 DRIVER INSTALLATION After the hardware installation, it is important to follow the process to install the correct drivers. advoli Performance graphics card is designed to work with a multitude of MXM modules from different manufacturers, this includes Type A and Type B MXM modules. It is important to understand that the below process is the driver installation instruction for AMD E9550 MXM module.

  • Page 12: Configuring Audio

    In the playback tab, select the display you want to be the default, after selecting the display to be the default audio display, select set default and click apply. You have now selected the display that will be the default audio channel and your advoli TA6 Performance graphics card is ready to be used.

  • Page 13: Console User Guide

    If your receiving unit does not have a serial capability, this option will not work. With the advoli RA1 Performance receivers, you will get access to a wealth of additional diagnostics, and ability for full serial communication through our serial dongle.

  • Page 14: Configuring Console

    The advoli TA6 Performance graphics card uses a Universal Serial COM port that also works under most other operating systems. The port is virtual, so any port setting and speed is supported.
 Open the console with the terminal program and a welcome message will show as seen in the below picture:
...
  • Page 15 For the Auto Channel configuration removing monitors will not cause any event on the operating system, and the advoli TA6 Performance graphics card will continue to present a removed monitor as if it is still connected. This is useful to avoid any accidentally disconnected, broken, or missing displays/projectors...
  • Page 16 Auto Detect EDID for all channels: Type “edid use a”

 If the operating system needs to discover new monitor types or its desirable for the advoli Performance graphics card to detect new types of displays/projectors revert the EDID back to auto-mode by typing the following command: “edid use a”.
...
  • Page 17
 The advoli TA6 Performance graphics card creates a fresh log-file on boot. Any event that happens gets logged in this file. To display this file type “dump” or ‘d’. For any support issues or diagnostics capture, please provide the result of this file and send it to the advoli support team.

  • Page 18: Power Over Cable

    TA6 Performance with other power over cable products or other HDBaseT products. The advoli TA6 Performance seizes to be a certified HDBaseT product, once you put in the jumper. You can only use the Power over Cable function directly with the advoli Performance or advoli RB1 Standard receivers.

  • Page 19: Enable Poc

    Enable PoC (Read above Warning before proceeding): If you would like to enable PoC for the advoli TA6 Performance graphics card, note that the product seizes to be a HDBaseT compliant and certified product and should not be used with such products other than those approved in this document.

  • Page 20: Regulatory Compliance

    For details of regulatory compliance for our products please visit our website www.advoli.com Warning: advoli TA6 Performance graphics card is only to be used with shielded CAT cables. Using any other type of cable will make the product non-compliant and will void any regulatory compliance listed above.

  • Page 21: Regulatory Compliance

    Note: advoli may have added other regulatory compliances after the publishing of this document. For a complete view on our regulatory approval compliances, processes, technical setup and results, please visit our website www.advoli.com/compliance Page TA6P-V2-12-09-2018...

  • Page 22: Legal

    _
 LEGAL This document and its content is provided as is and only in connection with Advoli Limited (referred to as “advoli ”) products. advoli do not take responsibilities with respect to the accuracy or completeness of the contents herein and reserves the right to change or discontinue products, technical specifications, descriptions and documentation at any time without notice.
