Summary of Contents for ENGINDOT PW003U

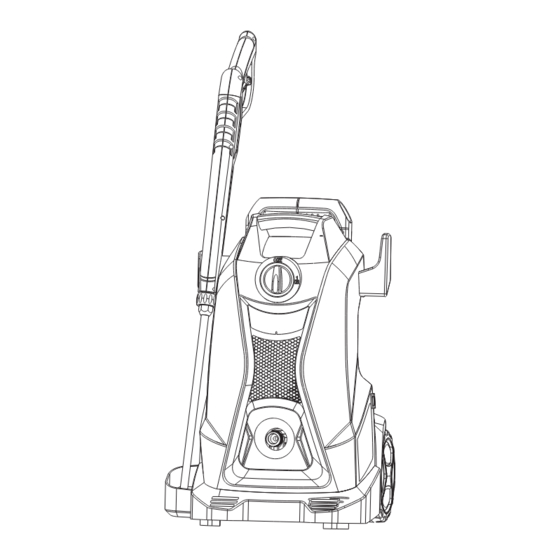

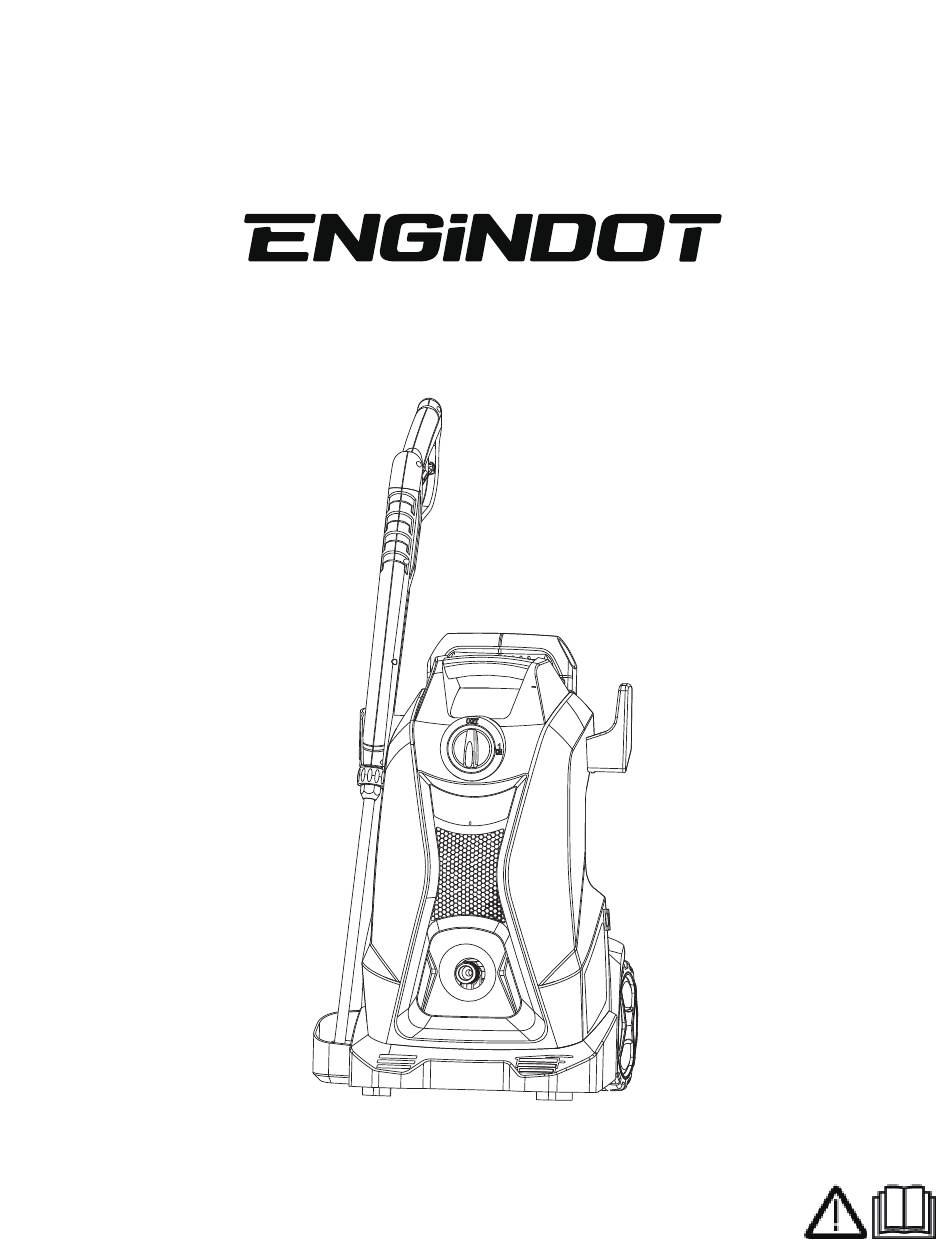

- Page 1 Electric Pressure Washer User Manual Model: PW003U...
-
Page 2: Table Of Contents
..........................Operation ..........................Maintenance & Storage ....................Troubleshooting Guide ..................... SPECIFICATIONS Model Number PW003U Motor 120V, 60Hz, 1800W Rated Pressure 1450 PSI Maximum Pressure 2100 PSI Water Temperature Range 40° F (4° C) - 104° F (40° C) Max Flow Rate 1.8 GPM... - Page 3 INTRODUCTION Thanks for purchasing the Pressure Washer. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this operator’s manual and all the labels affixed to the tool.
-
Page 4: General Safety Rules
GENERAL SAFETY RULES Safety is a combination of common sense, staying alert, and knowing how your item works. SAVE THESE SAFETY INSTRUCTIONS. WARNING: Read and understand all warnings, cautions and operating instructions before using this tool. Failure to follow all instructions listed below may result in personal injury and tool damage. WORK AREA SAFETY 1. - Page 5 GENERAL SAFETY RULES 4. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents. 5.
-
Page 6: Specific Rules For Pressure Washers
SPECIFIC RULES FOR PRESSURE WASHERS WARNING: To avoid mistakes and serious injury, do not plug in your tool until you have read and understood the following safety rules. Learn the tool’s applications, limitations, and possible hazards to maximize your safety and the lifetime of the tool. BEFORE OPERATION 1. - Page 7 SPECIFIC RULES FOR PRESSURE WASHERS OPERATING THE PRESSURE WASHER 1. STAY ALERT. Watch what you are doing and use common sense when operating your tool. Do not use the tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention during operation may result in serious bodily injury.
- Page 8 ELECTRICAL SAFETY RULES OPERATING THE PRESSURE WASHER 1. STAY ALERT. Watch what you are doing and use common sense when operating your tool. Do not use the tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention during operation may result in serious bodily injury.
-
Page 9: Know Your Pressure Washer
KNOW YOUR PRESSURE WASHER PULL ROD PRESSURE HOSE HANDLE GUN HOLDER ON/OFF SWITCH LANCE INLET WATER CONNECTOR POWER CORD DETERGENT BOTTLE HOLDER NOZZLES POWER CORD OUTLET WATER CONNECTOR... - Page 10 KNOW YOUR PRESSURE WASHER PACKING LIST Check your packing list against the diagram below. Spray Gun & Lance Gun Holder-A Pressure Washer Assembly Screw(St3.9*16)*1 POWER CORD HOLDER Tip Cleaner Gun Holder-B Pressure Hose Water Inlet Connector WARNING: Do not attempt to assemble or operate this pressure washer until you have read and understood this entire manual.
-
Page 11: Assembly
ASSEMBLY 1. ASSEMBLING GUN HOLDER(Fig.1) Use the screwdriver to assemble the gun holder-A on the washer body with 1 bolt Screw-ST3.9*16 . 2. ASSMEBLING THE GUN HOLDER-B AND POWER CORD HOLDER (Fig.2) 3. ASSMEBLING THE SPRAY GUN (Fig3) Insert the spray lance into the spray gun. 4. -
Page 12: Operation
OPERATION PREPARING THE PRESSURE WASHER 1. Place the pressure washer on a secure, stable surface to prevent it from tipping during operation. 2. Check that all connections have been properly installed and secured. • The high pressure hose is properly fastened to the gun hose connector. •... - Page 13 ERATIO 2. Make sure the ON / OFF switch is in the OFF position. Plug the Ground Fault Circuit Interrupter (GFCI) into a matching receptacle (see page 8 for important electrical information). We recommend that you test the GFCI as part of your startup procedure each time you use your pressure washer as instructed below.
-
Page 14: Maintenance & Storage
OPERATION SHUTTING DOWN THE UNIT 1. Turn off the ON / OFF switch (Fig. 9) and unplug the power plug from the outlet. 2. Turn off the water supply. 3. Pull the high pressure gun trigger to relieve all the built-up pressure in the machine. - Page 15 STORING THE PRESSURE WASHER FOR EXTENDED PERIODS 1. Clean the spray nozzle and water inlet filter before storing the unit. 2. To protect and extend the life of your pressure washer, we recommended running the unit with a pump antifreeze, pump conditioner, or other pump protector before storing the unit for long periods of time. Follow the directions on your preferred pump protector for proper use.
- Page 16 Not enough inlet water Turn water on full force. Check garden hose supply. for kinks, leaks or blockage. Check that hoses and fittings are air tight. Turn off machine and purge pump by Pump is sucking air. Output pressure varies squeezing trigger gun until a steady flow of high and low.
- Page 17 Within 24 months of purchase, we will provide timely and effective online after-sales service.We will repair or replace any defective product (due to manufacturing fault) within the service period. How to Return Your ENGINDOT Product Contact support@engindotools.com with your order number.
- Page 18 516-896-6611 Mon-Fri 9AM-5PM(ET) support@engindotools.com Shenzhen Houqianding Trading Co., Ltd. Room 504D, Block B, Sunshine Hotel, No.2003, Jiabin Road, Jianan Community, Nanhu Street, Luohu District, Shenzhen MADE IN CHINA...
