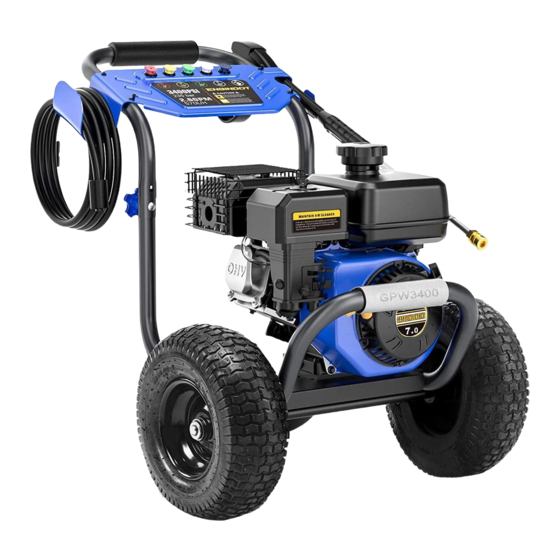

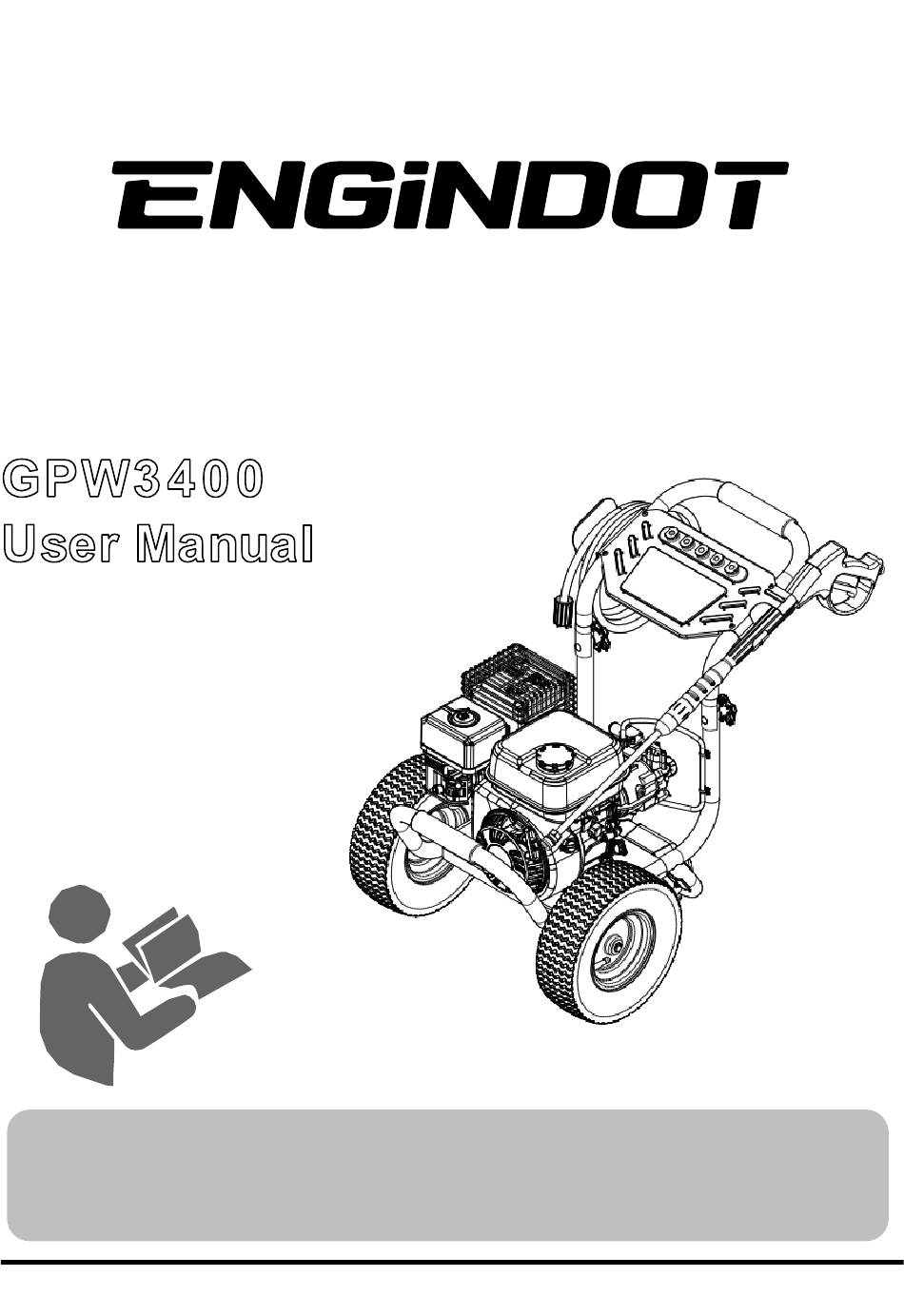

- Page 1 HIGH PRESSURE WASHER GPW3 4 0 0 User Manual Congratulations on the purchase of your new pressure washer. In order to ensure you have the best possible experience please read through the following instructions.
-
Page 2: Table Of Contents
Table of Contents 1. Safety Advice......................2 2. Parts List........................7 3. Assembled Model Diagram..................9 4. Assembly Instructions....................11 5. Operating Instructions....................14 6. Engine Operation......................16 7. Cleaning and Maintenance..................18 8. Technical Specifications....................21 9. Troubleshooting......................22 10. Limited Warranty......................24... -
Page 3: Safety Advice
TOXIC GASES 1. S AFETY DVICE Alerts against possible toxic gases which can be harmful to your health or deadly if IMPORTANT, RETAIN FOR FUTURE you are exposed to them. REFERENCE AND READ CAREFULLY! FLAMMABLE AND COMBUSTIBLE MATERIALS Do not attempt to install or operate this product Alerts against the presence of materials until you have read the safety instructions in /gases which can be extremely... - Page 4 1.2 Safety Warnings CAUTION–HOT ENGINE AND MUFFLER DANGER–WORK AREA THE ENGINE AND MUFFLER BECOME VERY SAFETY AND EXHAUST FUMES HOT DURING AND AFTER USE. AVOID • Keep work area clean and well lit. Cluttered TOUCHING THE ENGINE OR THE MUFFLER and dark areas incite accidents.
- Page 5 1.2 Safety Warnings CAUTION–ENGINE SAFETY • Certain components in this product and its related FLAMMABLE AND accessories contain chemicals which are known to POISONOUS MATERIALS cause cancer, birth defects, or other reproductive harm. Wash hands after handling. • Gasoline is highly flammable and its vapors can •...
- Page 6 1.2 Safety Warnings CAUTION–SPECIFIC SAFETY ADVICE CAUTION–SPECIFIC SAFETY •This product is capable of producing high pressure as ADVICE rated in the Technical Specifications. To avoid rupture • Avoid dangerous conditions. Always operate this and injury, do not operate this product with components rated less than the unit itself (including but not limited to product on dry, solid and level ground.
- Page 7 1.2 Safety Warnings IMPORTANT–STORAGE CAUTION–SERVICE •Store the product in a well-ventilated area, with an •Before cleaning, repairing, inspecting, or adjusting, empty fuel tank. Fuel should never be stored or shut off the engine and make sure that all moving placed near the product. parts have stopped.
-
Page 8: Parts List
2. P Ref. Description Qty. Visual Main frame Wheel with axle Handle and panel with five nozzles Spray gun with metal wand High-pressure hose 20’ (6 m) - Page 9 Knob with bolts Nozzles(0°，15°， 25°，40°，Detergent) Water inlet filter Spray tip cleaner Spark plug wrench Spare O-rings (two for high-pressure hose, one for quick-connector)
-
Page 10: Assembled Model Diagram
3. A SSEMBLED ODEL IAGRAM... - Page 11 3. A SSEMBLED ODEL IAGRAM Ref. Description Ref. Description Gun with Trigger safety lock Water Inlet Connector Spray nozzles(x5) Thermal Relief Valve Pressure Hose Detergent Bottle Cap Knob Switch Detergent Bottle Pump Rubber Foot Wheel Note: Engine oil is not included. Always use oil type SAE 10W-30.
-
Page 12: Assembly Instructions
4. A SSEMBLY NSTRUCTION Wheel Assembly NOTE: Make sure that there is enough air in wheel before assembly. Install the wheels to the frame by first pressing its spring loaded pin on wheel axle, then insert wheel shaft into frame and align spring loaded pin with hole in frame until the pin snaps. - Page 13 Pump Inlet Connector Gun & Wand Assembly Hose Connection Assemble the spray gun with the Insert the water filter into the pump metal wand. Pull back the rubber inlet. Attach one end of garden piece to expose the threaded fitting. hose to pump inlet, and fasten the Then, screw the two pieces plastic nut counter-clockwise.
- Page 14 Gun/Hose Assembly Remove the air shield on pump outlet, then connect one end of pressure hose to pump outlet, and secure the plastic nut. Connect the other end to pressure gun, and fasten the plastic nut.
-
Page 15: Operating Instructions
5. O PERATING NSTRUCTIONS 5.3 Starting Pressure Washer 5.1 Using Spray Nozzle • Attach one end of garden hose to pump inlet, and This pressure washer comes with five different fasten the plastic nut counter-clockwise. Then attach nozzles that can be installed on the metal wand. the other end to water source.. - Page 16 5.4 Cleaning with Detergents 5.5 Shutting Down and Cleaning IMPORTANT This pressure washer is intended for use with 1. Skip step 2 if you are not using detergent. special pressure washer detergents only. Do not use powdered soaps, which clog the injection 2.
-
Page 17: Engine Operation
6.2 Adding Fuel 6. E NGINE PERATION WARNING 6.1 Adding/Checking Oil •Make sure there is enough fuel in the fuel tank before operating the pressure washer. IMPORTANT • Use only clean, fresh, unleaded fuel. Use a Oil has been drained for shipping. Failure to fill minimum of 87octane/87 AKI (91 RON). - Page 18 6.3 Starting Engine IMPORTANT, Before each use: • Check the oil and fuel level and fill if necessary. • Make sure that spark plug, muffler, fuel cap, and air filter are in place and secured. • Do not crank engine with spark plug removed. See Section 5.3 Starting Pressure Washer to start the pressure washer.
-
Page 19: Cleaning And Maintenance
7. C LEANNING AND AINTENANCE 7.1 Cleaning Water Inlet Filter Recommended Engine Oil Add oil as described in chapter → Adding/Checking Oil. •This pressure washer is equipped with a water inlet filter. IMPORTANT • The water inlet filter must be kept clean at all times, Used oil is a hazardous waste product and must be otherwise it can restrict the water flow to the pump disposed of properly. - Page 20 NOTE: In some areas, local law requires using a Inspecting, Replacing or Cleaning the resistor spark plug to suppress ignition signals. If this Spark Plug engine was originally equipped with a resistor spark plug, use the same type for replacement The spark plug should be checked after every 100 hours of operation or every six months.
- Page 21 7.5 Storing Store idle product out of the reach of children and do 7.6 Winterizing Procedure not allow anyone unfamiliar with the product or these instructions to operate it. This product is dangerous in • Pressure washer might be damaged if subjected the hands of untrained users.
-
Page 22: Technical Specifications
8. T ECHNICAL PECIFICATIONS Maximum Pressure 3400 PSI Rated Water Pressure 3000 PSI Maximum Water Flow 2.6PM Minimum Inlet Pressure 30 PSI Maximum Inlet Pressure 100 PSI Pump Type Heavy-duty, maintenance-free axial Thermal Relief Valve Included Detergent Tank (Volume) 3.6 L Maximum Temperature of Pumped Water 40°... -
Page 23: Troubleshooting
9. T ROUBLE HOOTING PROBLEM POSSIBLE CAUSE SOLUTION The engine power switch is in Ensure the switch is in ON (I) position OFF (o) position No fuel Fill the fuel tank with regular gasoline Low oil shut down sensor Add oil until it reaches minimum level on tripped to protect engine dip stick Excess water pressure in... - Page 24 PROBLEM POSSIBLE CAUSE SOLUTION Nozzle tip not attached Attach required nozzle tip Turn on faucet. Ensure there are no Water supply faucet closed kinks or blockage in hose Ensure faucet is fully opened. Check Water supply pressure is to make sure water supply is a minimum 30 psi, 4 GPM No pressure, low pressure...
-
Page 25: Limited Warranty
High Pressure Washers Limited 24 month warranty Cold water gas pressure washers This product is warranted by to be free of defects in workmanship and materials under normal use. Specific warranty applies to: Rato 209cc engines are warranted for two (2) years on parts and labor. •... - Page 26 Within 24 months of purchase, we will provide timely and effective online after-sales service.We will repair or replace any defective product (due to manufacturing fault) within the service period. How to Return Your ENGINDOT Product Contact support@engindotools.com with your order number.
- Page 27 516-896-6611 Mon-Fri 9AM-5PM(ET) support@engindotools.com Shenzhen Houqianding Trading Co., Ltd. Room 504D, Block B, Sunshine Hotel, No.2003, Jiabin Road, Jianan Community, Nanhu Street, Luohu District, Shenzhen...
