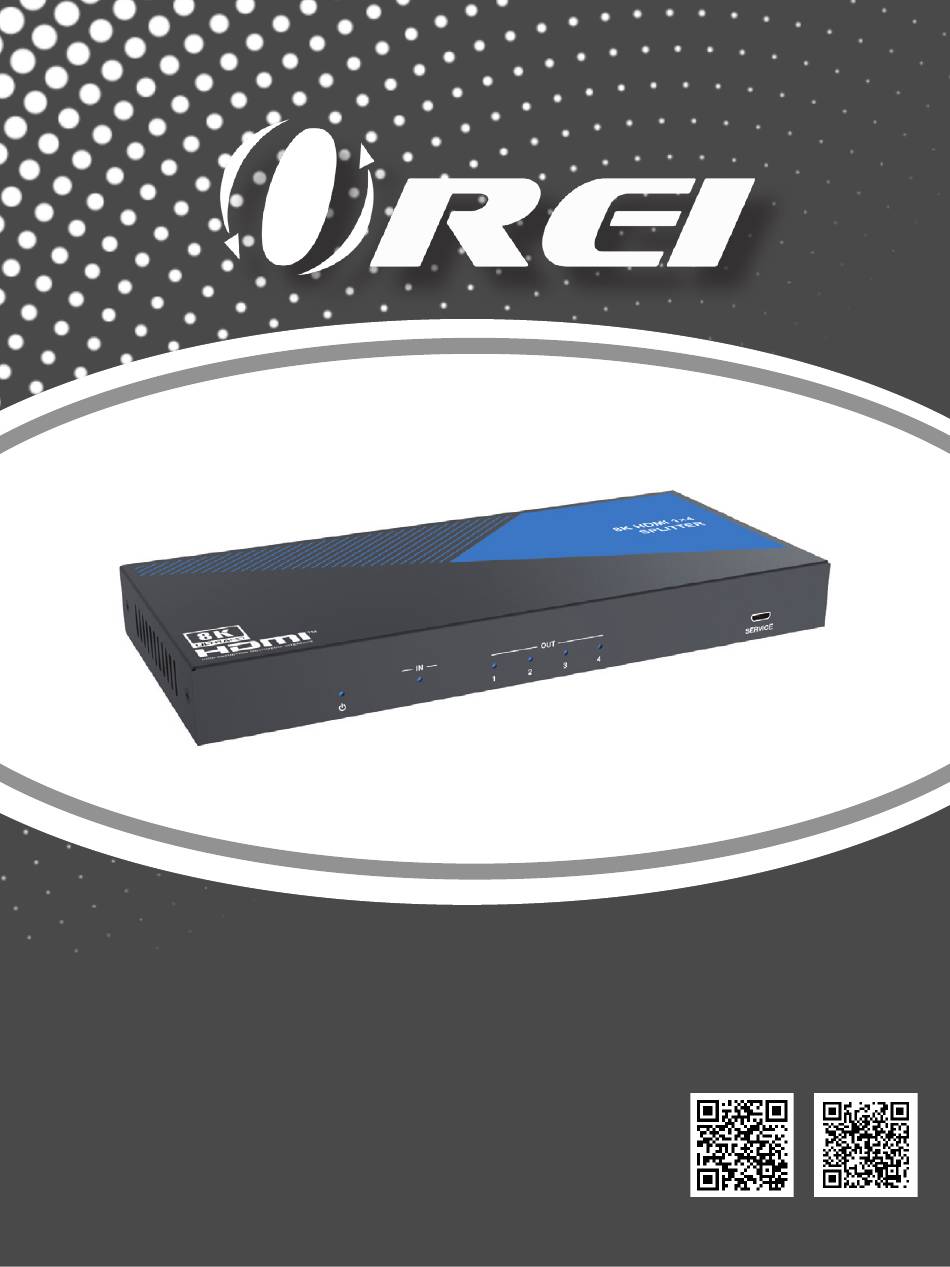

- Page 1 BK-104A 8K HDMI Follow us on Youtube and Facebook 1x4 Splitter U S E R M A N U A L www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions Application Example Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this prod- uct. - Page 3 Registration Page Please Activate your warranty by registering our product through the link below - www.orei.com/register Technical Support Need Help? Our experienced Technical Support Team is here for you to answer your questions, give technical advice or help troubleshoot your project to get you installed on time and on budget.
-
Page 4: Introduction
Introduction This 8K HDMI 1x4 Splitter can distribute one HDMI source signal to any four dis- play devices. It supports video resolution up to 8K@60Hz 4:2:0. It supports ad- vanced EDID management and audio de-embedding function (output through the optical and analog port). This multi-functional product can be widely applied in scenarios of demon-stration, video conference, multi-media teaching and other occassions requiring for big-screen demonstration. -
Page 5: Features
Features HDMI 2.1 and HDCP 2.3 compliant Support 40Gbps video bandwidth Support video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit VRR, FVA, ALLM supported Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Built-in Equalizer, Retiming and Driver Advanced EDID management... -
Page 6: Specifications
Specifications Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth 40Gbps Video Resolution Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit Color Depth 8-bit, 10-bit, 12-bit Color Space RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 HDR, HDR10, HDR10+, Dolby Vision, HLG pass through HDMI input/output: Audio Formats... - Page 7 Specifications Mechanical Housing Metal Enclosure Silkscreen Color Black Dimensions 212mm (W) × 94mm (D) × 23mm (H) Weight 539 g Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (Non-condensing) Power Consumption (Max) 9W (Max)
-
Page 8: Operation Controls And Functions
Operation Controls and Functions Front Panel SERVICE Rear Panel OUT 1 OUT 2 OUT 3 OUT 4 OPTICALL EDID 2.5A Name Function Description POWER LED When the device is powered on, the blue LED will be on. When the HDMI IN port connects an active source device, IN LED the blue LED will be on. - Page 9 Operation Controls and Functions Name Function Description OUT port HDMI signal output port, connecting to HDMI display device such as TV or Monitor with an HDMI cable. (1~4) OPTICAL Optical fiber audio output port. Analog audio output port. Use the DIP switch to set EDID. 111 - Copy OUT1 port sink EDID (as factory default) 110 - HDMI 1080p@60Hz, Audio 2ch PCM 101 - HDMI 4K@60Hz 4:4:4, Audio 2ch PCM, HDR...
-
Page 10: Application Example
Application Example 8K TV 4 8K TV 1 DVD or Blu-ray Player Power Supply OUT 1 OUT 2 OUT 3 OUT 4 OPTICAL EDID 2.5A Audio Amplifier 2.0 Speakers page 10... - Page 11 8K HDMI 1x4 Splitter www.orei.com © 2022...
