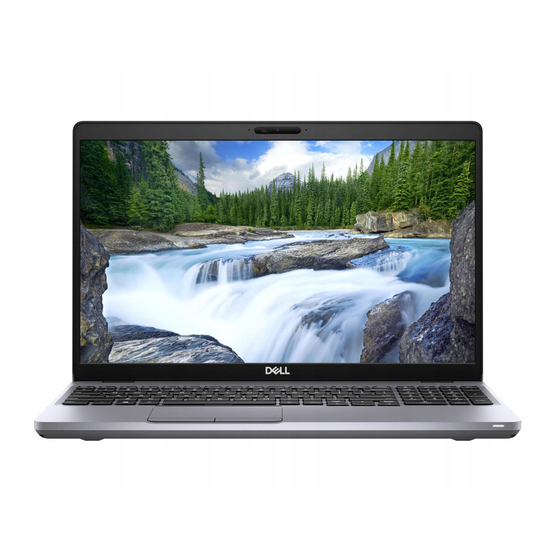

- Page 1 Dell Latitude 5511 Setup and specifications guide Regulatory Model: P80F Regulatory Type: P80F004 May 2023 Rev. A02...
- Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2020-2023 Dell Inc. or its subsidiaries. All rights reserved. Dell Technologies, Dell, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
-
Page 3: Table Of Contents
Contents Chapter 1: Set up your Latitude 5511..................... 5 Chapter 2: Create a USB recovery drive for Windows..............7 Chapter 3: Chassis overview......................8 Display view...................................8 Left view....................................9 Right....................................... 9 Bottom....................................10 Palmrest view..................................11 Chapter 4: Technical specifications..................... 12 Processors................................... 12 Chipset....................................13... - Page 4 Updating BIOS on systems with BitLocker enabled................... 40 Updating your system BIOS using a USB flash drive..................40 System and setup password............................41 Assigning a system setup password........................42 Deleting or changing an existing system setup password.................42 Chapter 8: Getting help....................... 43 Contacting Dell...................................43 Contents...
-
Page 5: Chapter 1: Set Up Your Latitude 5511
To conserve battery power, the battery might enter power saving mode. Connect the power adapter and press the power button to turn on the computer. 2. Finish Windows setup. Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you: ● Connect to a network for Windows updates. NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted. - Page 6 For more information about using Dell Update, see the knowledge base article SLN305843 www.dell.com/support. Dell Digital Delivery Download software applications, which are purchased but not pre-installed on your computer. For more information about using Dell Digital Delivery, see the knowledge base article 153764 www.dell.com/support. 4. Create recovery drive for Windows. NOTE: It is recommended to create a recovery drive to troubleshoot and fix problems that may occur with Windows.
-
Page 7: Chapter 2: Create A Usb Recovery Drive For Windows
A message appears, indicating that all data in the USB flash drive will be deleted. 7. Click Create. 8. Click Finish. For more information about reinstalling Windows using the USB recovery drive, see the Troubleshooting section of your product's Service Manual at www.dell.com/support/manuals. Create a USB recovery drive for Windows... -
Page 8: Chapter 3: Chassis Overview
Chassis overview Topics: • Display view • Left view • Right • Bottom • Palmrest view Display view 1. Microphone 2. Camera shutter 3. IR camera (optional) 4. Camera 5. Camera status light 6. Microphone 7. LCD panel 8. LED activity light Chassis overview... -
Page 9: Left View
Left view 1. Power connector port 2. USB Type-C 3.2 Gen 2 port with DisplayPort 1.4 port/Power Delivery/Thunderbolt 3. USB 3.2 Gen 1 port 4. Fan vents 5. Smart card reader (optional) Right 1. microSD card reader 2. micro-SIM card slot 3. -
Page 10: Bottom
Bottom 1. Fan vents 2. Service tag label 3. Speakers Chassis overview... -
Page 11: Palmrest View
Palmrest view 1. Power button with optional fingerprint reader (FPR) 2. Keyboard 3. NFC/Contactless smart card reader (optional) 4. Touchpad 5. Pointstick Chassis overview... -
Page 12: Chapter 4: Technical Specifications
Technical specifications NOTE: Offerings may vary by region. The following specifications are only those required by law to ship with your computer. For more information about the configuration of your computer, go to Help and Support in your Windows operating system and select the option to view information about your computer. Topics: •... -
Page 13: Chipset
Flash EPROM 32 MB PCIe bus Up to Gen 3.0 Operating system Your Latitude 5511 supports the following operating systems: ● Windows 10 Home (64-bit) ● Windows 10 Professional (64-bit) ● Ubuntu 18.04 LTS (64-bit) Memory Table 4. Memory specifications... -
Page 14: System Board Connectors
System board connectors Table 5. System board connectors Feature Specifications ● One M.2 2230 Key-E connector M.2 Connectors ● One M.2 2280 Key-M connector ● One M.2 3042 Key-B connector Storage Your computer supports one of the following configurations: ● One 2.5-inch hard drive ●... -
Page 15: Video
Table 8. Audio specifications (continued) Description Values Speakers Speaker Output Average Speaker Output Peak 2.5 W Video Table 9. Discrete graphics specifications Discrete graphics Controller External display support Memory size Memory type NVIDIA GeForce MX250 2 GB GDDR5 Table 10. Integrated graphics specifications Integrated graphics Controller External display support... -
Page 16: Communications
Communications Ethernet Table 12. Ethernet specifications Description Values Model number Intel 1219-V/Intel 1219-LM Gigabit Ethernet controller Transfer rate 10/100/1000 Mbps Wireless module Table 13. Wireless module specifications Description Values Model number Qualcomm QCA61x4A Intel AX201 Intel AX201 (DW1820) Transfer rate Up to 867 Mbps Up to 2400 Mbps Up to 2400 Mbps... -
Page 17: Power Adapter
Power adapter Table 15. Power adapter specifications Description Values Type 90 W 7.4 mm 90 W Type-C 130 W Type-C Dimensions 22 x 66 x 130 mm 22 x 66 x 130 mm 22 x 66 x 143 mm Weight 0.32 kg (0.70 lb) 0.291 kg (0.641 lb) 0.35 kg (0.77 lb) - Page 18 Dell Power using the Dell Power using the Dell Power duration, Manager application. Manager application. Manager application.
-
Page 19: Dimensions And Weight
Table 16. Battery specifications (continued) Description Values Manager, see Me and My Dell on www.dell.co Life span (approximate) 300 discharge/charge 300 discharge/charge 1000 discharge/charge 300 discharge/ cycles cycles cycles charge cycles Coin-cell battery CR2032 CR2032 CR2032 CR2032 Operating time Varies depending on... -
Page 20: Touchpad
● One M.2 2280 slot for Self-Encrypting solid-state drive 256 GB/512 GB NOTE: To learn more about the features of different types of M.2 cards, search in the Knowledge Base Resource at www.dell.com/support. Touchpad Table 20. Touchpad specifications Feature Specifications... -
Page 21: Display
Table 21. Supported gestures (continued) Supported gestures Windows 10 3-finger tap (Invoke Cortana) Supported 3-finger swipe up (See all open windows) Supported 3-finger swipe down (Show the desktop) Supported 3-finger swipe right or left (Switch between open windows) Supported 4-finger tap (Invoke Action Center) Supported 4-finger swipe right or left (Switch virtual desktops) Supported... -
Page 22: Keyboard
Table 22. Display specifications (continued) Description Values Anti-glare vs glossy Anti-glare Anti-glare Anti-glare Anti-glare finish Touch options Keyboard Table 23. Keyboard specifications Feature Specifications Number of keys ● 102 (U.S. and Canada) ● 103 (UK) ● 106 (Japan) Size Full sized ●... -
Page 23: Sensor And Control Specifications
2. Hall Effect Sensor (Detects when the lid is closed) Security options—Contacted smartcard reader Table 27. Contacted smartcard reader Title Description Dell ControlVault 3 Smartcard reader ISO 7816 -3 Class A Card Support Reader capable of reading 5V powered smartcard ISO 7816 -3 Class B Card Support... -
Page 24: Security Options-Contactless Smartcard Reader
Common driver support for Integrated Circuit Card Interface Device for OS level drivers Windows Certified Device certified by Microsoft WHCK Dell ControlVault support Device connects to Dell ControlVault for usage and processing NOTE: 125 Khz proximity cards are not supported. Technical specifications... -
Page 25: Security
Optional Dell Data Security and Management Software ● Dell Client Command Suite ● Dell BIOS Verification ● Optional Dell Endpoint Security and Management Software ● VMware Carbon Black Endpoint Standard ● VMware Carbon Black Endpoint Standard + Secureworks Threat Detection and Response ●... -
Page 26: Computer Environment
Table 31. Security Software specifications (continued) Specifications ● Absolute Endpoint Visibility and Control ● Netskope ● Dell Supply Chain Defense Computer environment Airborne contaminant level: G1 as defined by ISA-S71.04-1985 Table 32. Computer environment Description Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) -40°C to 65°C (-40°F to 149°F) -
Page 27: Chapter 5: Keyboard Shortcuts
Keyboard shortcuts NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations. Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. - Page 28 Table 34. List of keyboard shortcuts Function key Behavior Turn off/on wireless Pause/Break Sleep Toggle scroll lock Toggle between power and battery-status light/hard-drive activity light System request Open application menu Toggle Fn-key lock Page up Page down Home Keyboard shortcuts...
-
Page 29: Chapter 6: Software
Downloading Windows drivers Steps 1. Turn on the notebook. 2. Go to Dell.com/support. 3. Click Product Support, enter the Service Tag of your notebook, and then click Submit. NOTE: If you do not have the Service Tag, use the auto detect feature or manually browse for your notebook model. -
Page 30: Chapter 7: System Setup
Boot menu Press <F12> when the Dell logo appears to initiate a one-time boot menu with a list of the valid boot devices for the system. Diagnostics and BIOS Setup options are also included in this menu. The devices listed on the boot menu depend on the bootable devices in the system. -
Page 31: Boot Sequence
Boot sequence enables you to bypass the System Setup–defined boot device order and boot directly to a specific device (for example: optical drive or hard drive). During the Power-on Self-Test (POST), when the Dell logo appears, you can: ● Access System Setup by pressing F2 key ●... -
Page 32: System Information
Table 35. General (continued) Option Description ● Always ● Never Date/Time Allows you to set the date and time settings. Changes to the system date and time take effect immediately. System information Table 36. System Configuration Option Description Integrated NIC Allows you to configure the on-board LAN controller. - Page 33 Table 36. System Configuration (continued) Option Description Keyboard Illumination This field lets you choose the operating mode of the keyboard illumination feature. The keyboard brightness level can be set from 0% to 100%. The options are: ● Disabled ● Dim ●...
-
Page 34: Video
Video Option Description LCD Brightness Allows you to set the display brightness depending up on the power source—On Battery and On AC. The LCD brightness is independent for battery and AC adapter. It can be set using the slider. NOTE: The video setting is visible only when a video card is installed into the system. -
Page 35: Secure Boot
Table 37. Security (continued) Option Description Absolute This field lets you Enable, Disable or Permanently Disable the BIOS module interface of the optional Absolute Persistence Module service from Absolute Software. ● Enabled - This option is selected by default. ● Disabled ●... -
Page 36: Intel Software Guard Extensions
Intel Software Guard Extensions Table 39. Intel Software Guard Extensions Option Description Intel SGX Enable This field specifies you to provide a secured environment for running code/storing sensitive information in the context of the main OS. Click one of the following options: ●... -
Page 37: Power Management
● Adaptive—enabled by default Configuration ● Standard—Fully charges your battery at a standard rate. ● ExpressCharge—The battery charges over a shorter time using Dell’s fast charging technology. ● Primarily AC use ● Custom If Custom Charge is selected, you can also configure Custom Charge Start and Custom Charge Stop. -
Page 38: Post Behavior
POST behavior Option Description Adapter Allows you to enable or disable the system setup (BIOS) warning messages when you use certain power Warnings adapters. Default setting: Enable Adapter Warnings Numlock Enable Allows you to enable the Numlock option when the computer boots. Enable Network. -
Page 39: Wireless
Option Description Enable VT for Direct I/O - enabled by default. Trusted This option specifies whether a Measured Virtual Machine Monitor (MVMM) can utilize the additional Execution hardware capabilities provided by Intel Trusted Execution Technology. The TPM Virtualization Technology, and the Virtualization technology for direct I/O must be enabled to use this feature. Trusted Execution - disabled by default. -
Page 40: Updating The Bios In Windows
If the recovery key is not known, this can result in data loss or an unnecessary operating system reinstall. For more information about this subject, see Knowledge Article: Updating the BIOS on Dell Systems With BitLocker Enabled Updating your system BIOS using a USB flash drive... -
Page 41: System And Setup Password
3. Insert the USB flash drive into the system that requires the BIOS update. 4. Restart the system and press F12 when the Dell splash logo appears to display the One Time Boot Menu. 5. Using arrow keys, select USB Storage Device and click Enter. -
Page 42: Assigning A System Setup Password
Assigning a system setup password Prerequisites You can assign a new System or Admin Password only when the status is in Not Set. About this task To enter the system setup, press F2 immediately after a power-on or reboot. Steps 1. -
Page 43: Chapter 8: Getting Help
About this task Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues: Steps 1.
