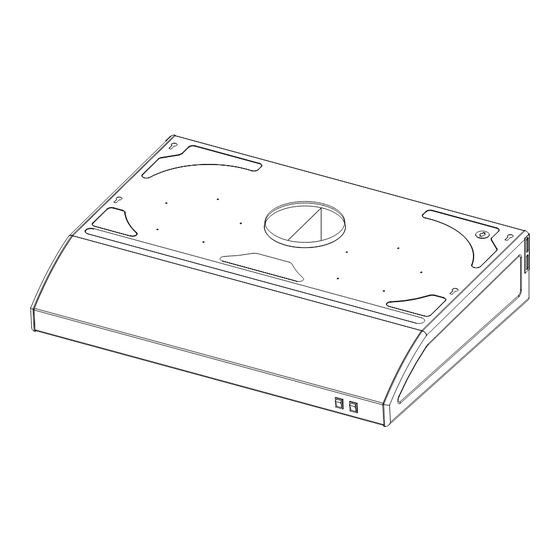

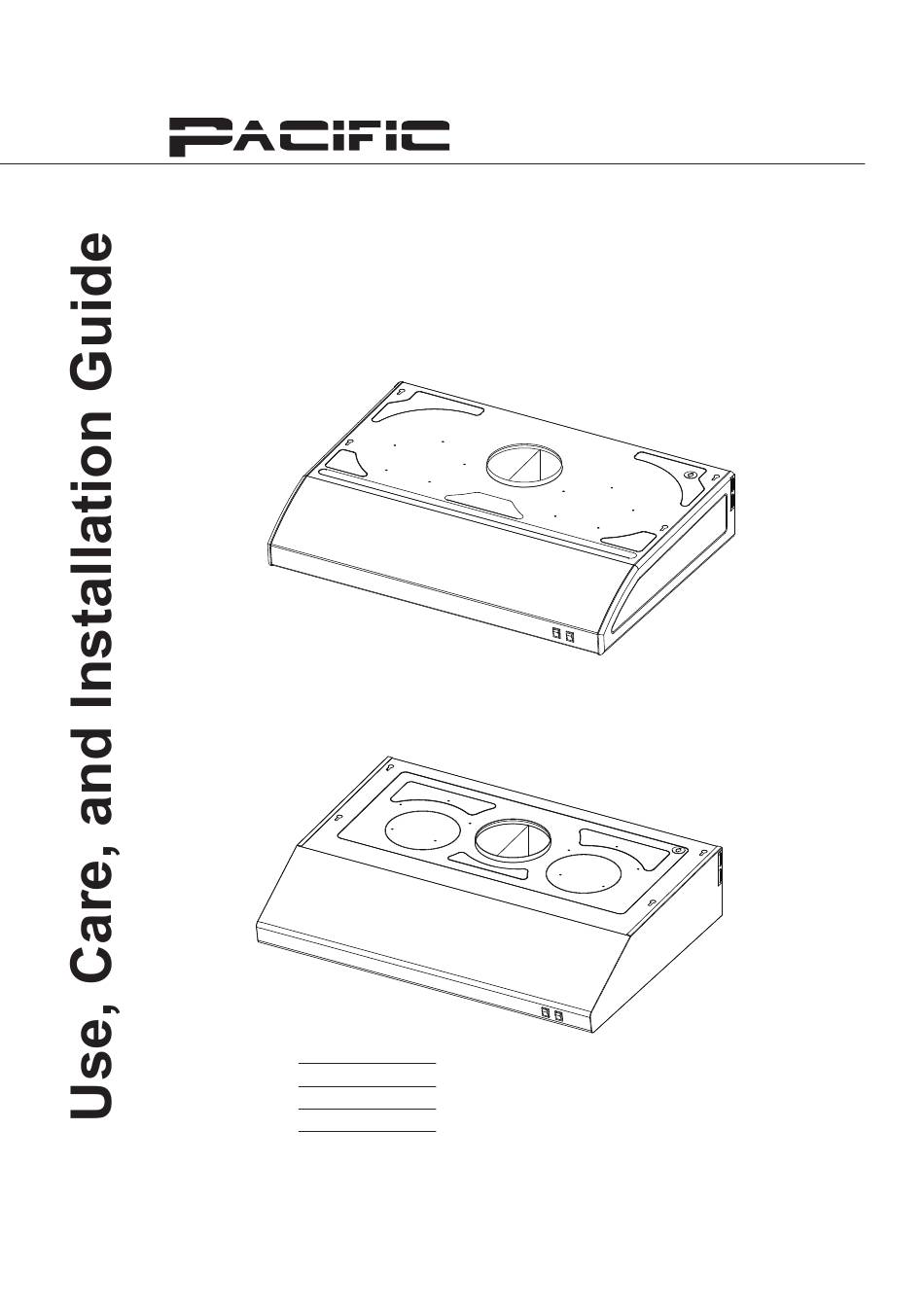

- Page 1 PR-2011S PR-2011W PR-2011-36 PR-2011-36 PR-1230S PR-1230W PR-1236S PR-1236W Model number: Serial Number: Date of Purchase: Sales Dealer: XP022309(1)
- Page 2 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ductwork Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ............PR-2011 Hood Specifications ......... PR-1230 Hood Specifications ........Preparing Electrical ............ Mounting the Range Hood 10-11 ........CONTROLS Touch Controls .............
- Page 3 READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a.
-
Page 4: Operation
WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. NOT FOR USE IN OUTDOOR COOKING ENVIRONMENTS. CAUTION To reduce risk of fire and to properly exhaust air outside - Do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces or garages. -
Page 5: Parts Not Supplied
MODELS: PR-1230S/PR-1230W/PR-1236S/PR-1236W PR-2011S/PR-2011W/PR-2011-36 /PR-2011-36 PARTS SUPPLIED 1 - Hood body 2 - Safety grilles 2 - 40W light bulb (pre-installed) 1 - Hardware package M4 x 1” (4) M4 x 1-1/2” (4) M4 x 2” (4) 3/16*1/2 (4) ø12 OD / ø5 ID Wire Caps (3) 6”Collar(1) - Page 6 Equivalentnumber Equivalentnumber Duct pieces Duct pieces lengthxused T otal lengthxused T otal 3-1/ 4” x 10” 1 Ft. 6” Round 30 Ft. Rect., wall cap straight with damper 6” Round, 1 Ft. 6” Round, 30 Ft. straight roof cap 7”-10” Round, 1 Ft.
-
Page 7: Damage - Shipment/Installation
Minimum mounting height between range top to hood bottom should be no less than 24”. Maximum mounting height should be no higher than 32”. It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard;... - Page 8 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside. Use metal ductwork only. Fasten all connections with sheet metal screws and tape all joints with certifi ed Silver Tape or Duct Tape.
- Page 9 MODELS: PR-2011S/PR-2011W PR-2011-36S/PR-2011-36W 29 3/4” (755) 35 3/4” (907) 27 7/8” (708) 33 7/8” (861) 3 5/16” (83.5) 4 5/16” (109.5) 22 1/4” (565) 15 3/8” (390) 4 5/16” (109.5) 10 1/16” (255) 3 5/16” (83.5) 3/8” (R10) 6” (152) 2”...
- Page 10 MODELS: PR-1230S/PR-1230W/PR-1236S/PR-1236W 29 3/4” (755) 35 3/4” (907) 27 7/8” (708) 33 7/8” (861) 3 5/16” (83.5) 4 5/16” (109.5) 22 1/4” (565) 15 3/8” (390) 4 5/16” (109.5) 9 1/2” (242.5) 3 5/16” (83.5) 3/8” (R10) 2,00 6 5/16” (160) 2”...
-
Page 11: Electrical Warning
ELECTRICAL WARNING All Electrical work must by performed by qualified electrician or person with similar technical knowledge and background. For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance. Follow national electrical codes or prevailing local codes and ordinances. - Page 12 MODELS: PR-1230S/PR-1230W/PR-1236S/PR-1236W Hood is designed for installation under a kitchen cabinet. See Fig. 1 for details. 1. Prepare duct location on hood (vertical). 2. Measure and cut out duct and electrical openings in cabinet or wall to match up with the hood.
- Page 13 MODELS: PR-2011S/PR-2011W/PR-2011-36S/PR-2011-36W Hood is designed for installation under a kitchen cabinet. See Fig. 1 for details. 1. Prepare duct location on hood (vertical). 2. Measure and cut out duct and electrical openings in cabinet or wall to match up with the hood.
- Page 14 Lights On/Off Blower On/Speed Selection Lights On/Off Swtich lights on and off by pressing: ▕ mean turn on light ▕ ▏mean turn off light. Blower On/Speed Selection Turn on blower at one of two seeds by pressing: mean turn on blower at speed 1 ▕...
-
Page 15: Cleaning Frequency
SELF CLEAING FEATURE PR-2011/PR-1230 hoods are filter-less with a self cleaning feature. The centrifugal blower system automatically liquifies cooking residue in its internal housing. All hoods are equipped with dish-washer safe residue cups to collect cooking residue during the self cleaning function. Cooking residues are often automatically liquified and can accumulate in the residue cups from everyday use. -
Page 16: Surface Maintenance
SURFACE MAINTENANCE Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent, or steel wool/scouring pads which will scratch and damage surface. Do not use products containing chlorine bleach or orange cleaners. For heavier soil use liquid degreaser. After cleaning, you may use non-abrasive stainless steel polish/ cleaners, to polish and buff out the stainless luster and grain. -
Page 17: Troubleshooting Procedures
TROUBLESHOOTING PROCEDURES 1. The power source is not turned ON 1. Make sure the circuit breaker and the After installation, unit’s power is ON. the unit doesn’t 2. The power line and the cable locking connector 2. Check the power connection with the unit is work.
