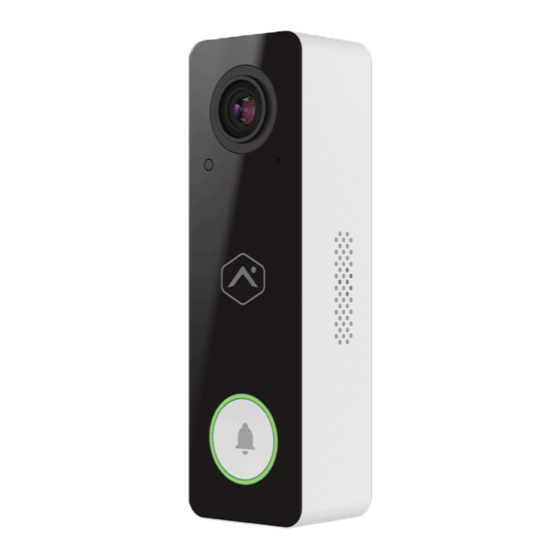

Alarm.com Video Doorbell (ADC-VDB750) - Installation Guide
Pre-installation checklist
• ADC-VDB750 with included accessories
• Wired doorbell transformer (recommended 16VAC 10VA) or power supply (minimum 15VDC 8W); specifications are
often written directly on the power source
• Wi-Fi (2.4 or 5 GHz) connection to broadband Internet (Cable, DSL, or Fiber Optic)
• A computer, tablet, or smartphone with Wi-Fi is required if the router does not have the Wi-Fi Protected Setup
(WPS) feature
• (Optional) Wired compatible mechanical or digital chime
• (Optional) ADC-VDB750 Power Module (sold separately as ADC-VDBA-PM-750; only required if wired to a digital
chime)
• (Optional) ADC-VDB750 Backplate Adapter (sold separately as ADC-VDBA-750-BPA; can be used if replacing a
Slim Line Doorbell Camera and it is preferred to not reconnect the wiring)
• (Optional) ADC-VDB750 Wedge Mount Kit (sold separately as ADC-VDBA-750-WMK; can be used to optimize the
captured field of view)
https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Video_Devices/Alarm.com_Video_Doorbell_(ADC-VDB7...
Updated: Thu, 08 Jun 2023 16:11:26 GMT
1
Advertisement
Summary of Contents for Knowledge ADC-VDB750
- Page 1 (WPS) feature • (Optional) Wired compatible mechanical or digital chime • (Optional) ADC-VDB750 Power Module (sold separately as ADC-VDBA-PM-750; only required if wired to a digital chime) • (Optional) ADC-VDB750 Backplate Adapter (sold separately as ADC-VDBA-750-BPA; can be used if replacing a Slim Line Doorbell Camera and it is preferred to not reconnect the wiring) •...
- Page 2 In the box • ADC-VDB750 video doorbell • ADC-VDB750 wallplate (with pre-assembled set screw and wire terminal screws) • Wall anchors (x2) & ST3.5 x 22mm screws (x2) • Installation card with scannable QR code https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Video_Devices/Alarm.com_Video_Doorbell_(ADC-VDB7… Updated: Thu, 08 Jun 2023 16:11:26 GMT...
- Page 3 3. Verify that the chime wire terminals are connected to one wire run from the transformer and one wire run from the doorbell. ◦ If the in-home chime is digital (rather than mechanical), connect the ADC-VDB750 Power Module (sold separately as ADC-VDBA-PM-750) to the chime by connecting one wire to each of the terminals (leaving the existing wires in place, polarity does not matter).
- Page 4 place. Polarity does not matter. 4. Remove the existing doorbell from the wall and disconnect the wires. Secure the wires so that they can be connected in a later step. 5. If using an optional wedge, thread the wires at the doorbell through the center of the wedge and mount the wedge to the surface with the provided screws/anchors.
- Page 5 Important: Minimize the length of excess wire leads protruding from the area surrounding the screw terminals. Excess wire can interfere with the assembly to the ADC-VDB750 and may result in the device not powering on.
- Page 6 7. Determine whether to secure the wallplate to the optional wedge or mount it directly to the surface. ◦ If using an optional wedge, secure the wallplate to the mounted wedge using the two machine screws provided with the Wedge Mount Kit. ◦...
- Page 7 8. Connect ADC-VDB750 device to wallplate by first securing/latching the top edge, then pushing the device into the wallplate, and lastly securing the bottom set screw with a screwdriver. 9. Restore power to the doorbell circuit (transformer). Physical installation (Slim Line I/II replacement)
- Page 8 Important: The Power Module should not be used with mechanical chimes. If a mechanical chime is humming or ringing unexpectedly after the ADC-VDB750 is installed, the included resistor should be used. To install, connect one wire lead of the resistor to each of the chime terminals, leaving the existing wires in place. Polarity does not matter.
- Page 9 5. Secure the ADC-VDB750 device to the ADC-VDB750 Backplate Adapter and secure at the bottom of the adapter https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Video_Devices/Alarm.com_Video_Doorbell_(ADC-VDB7…...
- Page 10 6. Connect the Mounting Adapter (with ADC-VDB750 device attached) to the existing Slim Line wallplate by latching the top edge, then pushing the device into the wallplate, and then securing the original bottom set screw.
- Page 11 2. On an Internet-enabled device, connect to the Wi-Fi network ADC-VDB750 (XX:XX:XX) where XX:XX:XX is the last six characters of the ADC-VDB750’s MAC address, which is located on the device or on the packaging. 3. On the same device, open a web browser and enter http://vdb750install.com...
- Page 12 Service provider technician - MobileTech app installation 1. Log into the MobileTech app. 2. Find the customer account. 3. Tap Quick Actions. 4. Tap Add Device. 5. Tap Video. 6. Follow the on-screen instructions. LED reference guide LED pattern Description Power off Blinking yellow Camera power cycling (press and hold button for 40-45...
- Page 13 LED pattern Description Solid green Connected to Alarm.com Blinking green Local network connection Blinking blue WPS mode (press and hold button for 30-35 seconds) Blinking white Wi-Fi Access Point mode (press and hold button for 35-40 seconds) Alternating blue and green Firmware update Notices Product installation height should be less than 2 m (6’...
- Page 14 émetteur. EU Declaration of Conformity statement Hereby, Alarm.com Incorporated declares that the radio equipment type ADC-VDB750 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.alarm.com/about/international/eu-red...
