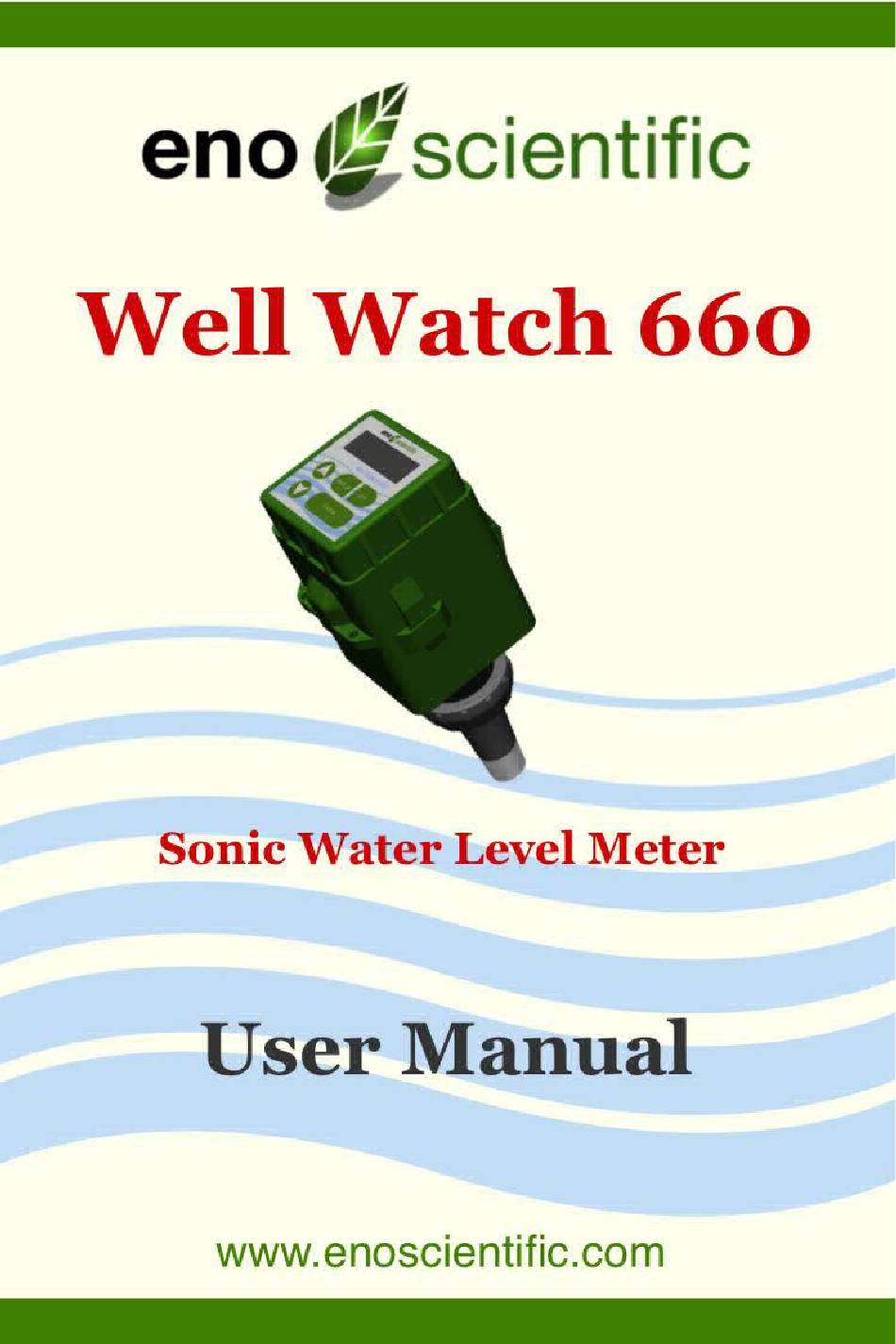

- Page 1 STATIC WATER LEVEL MEASUREMENT WELL WATCH 660 USER MANUAL www.enoscientific.com Eno Scientific Well Watch 660DL Page 1...
- Page 2 Eno Scientific PO Box 1586 Hillsborough, NC 27278 www.enoscientific.com 910-778-2660 Copyright Notice Copyright © 2013 Eno Scientific, Hillsborough, NC 27278, USA. All rights reserved. Part number: 661-901-6602 Eno Scientific Well Watch 660DL Page 2...
-
Page 3: Table Of Contents
REMOTE SERIAL OPERATION OVER RS232............22 INTERPRETATION OF DATA..................25 MODBUS COMMUNICATIONS..................25 MAINTENANCE......................28 FREQUENTLY ASKED QUESTIONS................29 TROUBLESHOOTING....................31 ERROR CODES......................33 SPECIFICATIONS......................34 ADDITIONAL NOTES....................35 WARRANTY AND SERVICE..................36 Eno Scientific Well Watch 660DL Page 3... -
Page 4: Product Overview
It can be used to measure any closed pipe, straight or crooked with a constant diameter. The Well Watch 660DL consists of a control unit and a probe which are connected by a latching hinge. The control unit contains the driver electronics, processor, display, and keypad, while the probe contains a speaker, a microphone and a threaded spout to connect to the test pipe. - Page 5 Several accessories are available for the Well Watch 610/660 which can be found on our website at www.enoscientific.com. Eno Scientific Well Watch 660DL Page 5...
-
Page 6: Quick Start Guide
DOWN buttons to read other information. We encourage you to read the frequently asked questions section. They really are frequently asked. Also, visit our website www.enoscientific.com for the latest manual and installation tips. Eno Scientific Well Watch 660DL Page 6... -
Page 7: Cautions
UNDESIRED OPERATION. NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Eno Scientific Well Watch 660DL Page 7... - Page 8 (p.i.r.e.) ne dépassepas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Eno Scientific Well Watch 660DL Page 8...
-
Page 9: Background - How It Works
Eno Scientific Well Watch 660DL Page 9... - Page 10 When set to 9ft, the depth would read 12. When set to 14ft, it would read 18 etc. In this case, it may be helpful to leave a small leak at the probe to help dissipate the pulse. Eno Scientific Well Watch 660DL Page 10...
-
Page 11: Setup
Assemble the fittings from the well to the spout remembering to place the plastic ring nut on the spout before screwing it in place. The spout should not be more than hand tight. Eno Scientific Well Watch 660DL Page 11... - Page 12 3 - Slide the microphone tubing into the spout and connect the Well Watch to the spout with the plastic ring nut. Eno Scientific Well Watch 660DL Page 12...
- Page 13 GND terminal. The included adapter cable provides a connector for the included AC power adapter. The adapter cable can be extended up to 500 ft using #24AWG wire. The adapter wire with the white stripe is positive. Eno Scientific Well Watch 660DL Page 13...
-
Page 14: Operation
While the unit adjusts to the well the display will read “DEPTH SEARCHING.” Note: If error conditions exist, line two of the display will be replaced by an alternating error message. See the ERROR CODES section for details. Eno Scientific Well Watch 660DL Page 14... - Page 15 While viewing a SET screen, press the UP or DOWN button to change the value. Rapid scrolling is activated by holding the up or down button for about a second. Scrolling gets faster and faster while the button is held down. When Eno Scientific Well Watch 660DL Page 15...
- Page 16 Software in the Well Watch identifies the anomaly and holds the last good data through a few bad data points while a good depth is obtained. An asterisk is Eno Scientific Well Watch 660DL Page 16...
- Page 17 45 feet or more. RANGE MAX– sets the maximum distance in feet (M) the Well Watch will listen for a returning pulse. A shorter range means more frequent pulses and faster updates. A Eno Scientific Well Watch 660DL Page 17...
- Page 18 Once logging is enabled, new data points will be added to the end of the list until the memory is full. When the memory is full the Well Watch will continue to function but Eno Scientific Well Watch 660DL Page 18...
- Page 19 MODBUS ADDRESS – This is the address which will identify the Well Watch on the Modbus bus. RF – Enables the wireless transmitter for communications with the Eno Scientific remote display unit. Select OFF to disable the transmitter, BROADCAST to continuously broadcast, or POLLED to allow unit to be controlled by the optional remote readout unit.
-
Page 20: Logging
Factory default values. LOGGING The Well Watch 660DL includes a built-in data logger which can record the measurement data automatically at preset intervals when automatic logging is enabled. Each data point includes the system time and date, well ID, depth, temperature, battery voltage, signal strength, and error codes. -
Page 21: Usb Communications
If the log period is set to zero minutes, then every reading is logged. USB COMMUNICATIONS The Well Watch 660DL contains an expanded memory which provides enough memory to record one data point per minute for over 50 years. This memory supports a windows compatible file system which can be accessed using the USB port. -
Page 22: Rs232 Communications
The TX terminal on the well watch goes to pin 2 on the D connector, RX goes to pin 3 and GND goes to pin 5. A simple serial to USB adapter is available from Eno Scientific or most computer stores to use with laptops without serial ports. The default serial configuration on the Well Watch is 19200 baud, 8 data bits, 1 stop bit, no parity, and no flow control. - Page 23 <ret> set baud rate (CAUTION – once the command is accepted, communications will cease until the terminal setting is changed to match) 0 –300 1 – 1200 2 – 2400 3 – 4800 Eno Scientific Well Watch 660DL Page 23...
- Page 24 <ret> set date u0<ret> set english units (ft) u1<ret> set english units (ft in) u2<ret> set metric units w[ddddd] <ret> set well temperature ?<return> send a list of the current settings Eno Scientific Well Watch 660DL Page 24...
-
Page 25: Interpretation Of Data
Modbus bus. When the RS485 Modbus port is enabled, the Well Watch becomes a Modbus slave device listening for data requests from a Modbus master device using either RTU or ASCII mode. Data requests with the address set in the Well Eno Scientific Well Watch 660DL Page 25... - Page 26 32 bit Float Depth last good 32 bit Float Battery Voltage 32 bit Float Probe Temp 32 bit Float Error Code 32 bit Integer Gain Pulse 32 bit Integer Gain Echo 32 bit Integer Eno Scientific Well Watch 660DL Page 26...
- Page 27 3014 Low Alarm 32 bit Float 3015 Analog 0v depth 32 bit Float 3016 Analog 5v depth 32 bit Float 4000 Battery Scale 32 bit Float 4001 T1 cal A 32 bit Float Eno Scientific Well Watch 660DL Page 27...
-
Page 28: Maintenance
Replace the battery and slide the electronic assembly back into the housing being careful to prevent the flat cable from being caught or pinched in the seal when the screws are replaced. Tighten the screws to snug being careful not to strip the threads. Eno Scientific Well Watch 660DL Page 28... -
Page 29: Frequently Asked Questions
Well Watch to detect. In this case, the Well Watch will track the descending water level until it gets to the perforations and then stick at the start of the exposed perforations as the water level continues to descend. Eno Scientific Well Watch 660DL Page 29... - Page 30 A: The pocket created at each joint is significant compared to the inside diameter of the PVC pipe, and therefore causes the pulse to reflect at each coupling. You will notice that if the min range is increased to 25ft, the depth will jump to 40ft. And when Eno Scientific Well Watch 660DL Page 30...
-
Page 31: Troubleshooting
45ft, the depth will jump to 60ft etc. In many cases, after the the pulse has passed the nearby stronger reflections, the stronger reflection from the water will dominate and the depth will jump up to the water level. TROUBLESHOOTING Eno Scientific Well Watch 660DL Page 31... - Page 32 Eno Scientific Well Watch 660DL Page 32...
-
Page 33: Error Codes
1 - Probe error 2 - Low Alarm 4 - High Alarm 8 - Low signal And the left digit: 1 - High Signal 2 - USB Connected 4 - R14 8 - R15 Eno Scientific Well Watch 660DL Page 33... -
Page 34: Specifications
RS485 Serial Modbus Port: baud 300 – 57600, 8 data bits, one stop bit. (19200 baud default). RF Wireless Port: Proprietary for communication with the Eno Scientific remote display. Analog Output: 0-5 volt @15ma max, and 4-20 ma @36v max. -
Page 35: Additional Notes
The maximum range is limited by the maximum time during which the echo is monitored, and the strength of the echo signal. Uncased wells drilled through porous material can attenuate the signal faster than the rated distance, making detection impossible. Eno Scientific Well Watch 660DL Page 35... -
Page 36: Warranty And Service
WARRANTY AND SERVICE Eno Scientific warrants to the user that all products manufactured by Eno Scientific, will be free from defects in workmanship and materials for 1 year from the date of shipment. Eno Scientific warrants to repair or replace any such defective equipment or part... - Page 37 Eno Scientific Well Watch 660DL Page 37...
- Page 38 Eno Scientific Well Watch 660DL Page 38...
- Page 39 Eno Scientific Well Watch 660DL Page 39...
- Page 40 Eno Scientific Well Watch 660DL Page 40...
