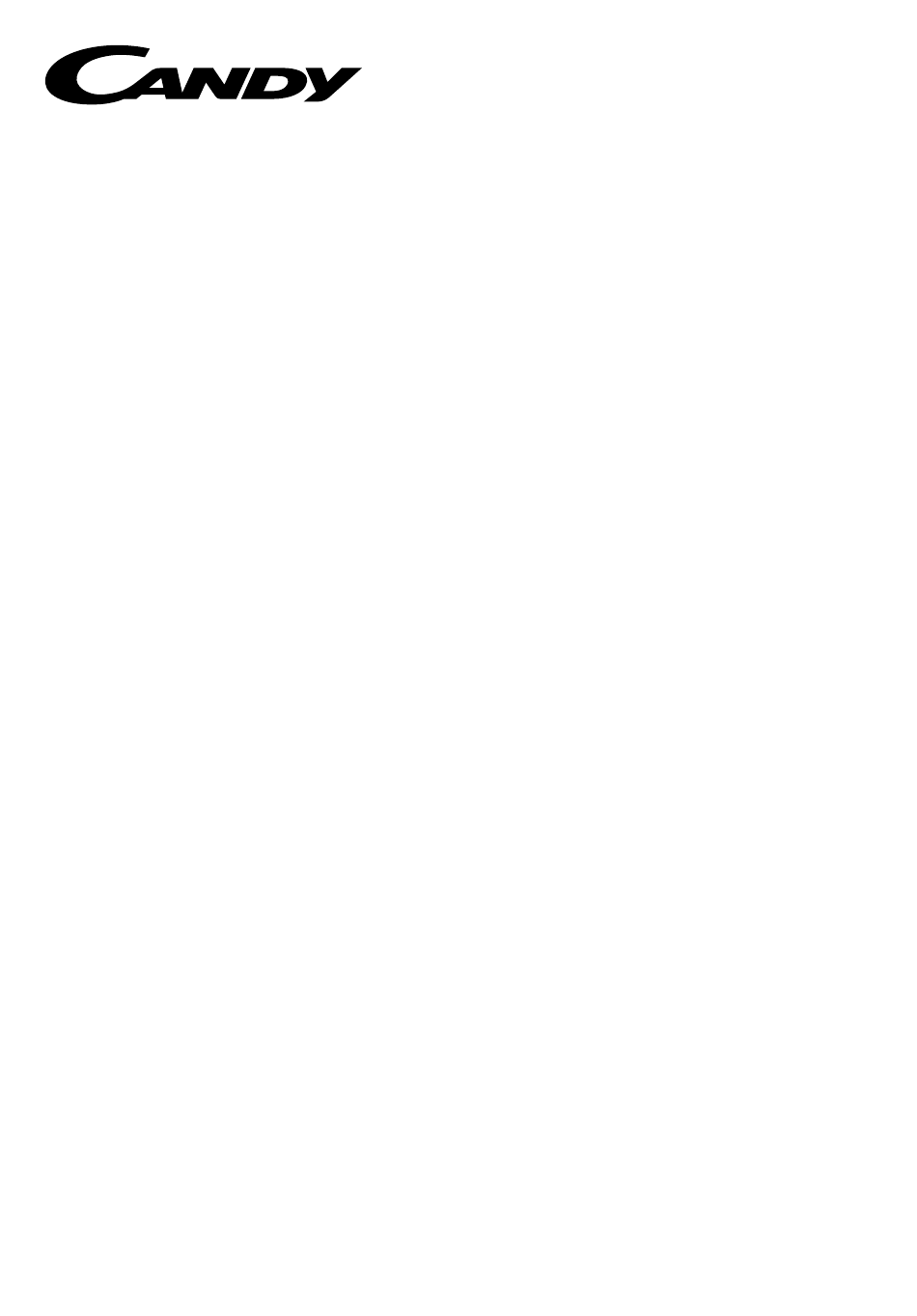

Candy CCVB 15 User Manual

Hide thumbs Also See for CCVB 15:
Table of Contents

Advertisement

Quick Links

Download this manual
NOTE: This User Instruction Manual contains important information, including
safety & installation points, which will enable you to get the most out of
your appliance. Please keep it in a safe place so that it is easily available
for future reference, for you or any person not familiar with the operation of
the appliance.
Wine Coolers
USER MANUAL
CCVB 15
CCVB 30
CCVB 60D
EN Ver.2/2016

Advertisement

Table of Contents
loading

Related Manuals for Candy CCVB 15

Summary of Contents for Candy CCVB 15

  • Page 1 Wine Coolers USER MANUAL CCVB 15 CCVB 30 CCVB 60D NOTE: This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference, for you or any person not familiar with the operation of the appliance.

  • Page 2: Table Of Contents

    --CONTENTS-- 01 SAFETY INFORMATION 03 SCRAPPING OLD APPLIANCES Conformity Energy Saving Service 04 DESCRIPTION OF APPLIANCE Product Features Control Panel Interior light 06 The Wine Cooler shelves 06 USING YOUR WINE COOLER Before Switching On During First Use 07 Turning The Appliance On And Off Unlocking The Control Panel 07 The Interior Light Setting The Temperature Range...

  • Page 3: Safety Information

    Thank you for purchasing this product. Before using your Wine Coolers, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as: --the kitchen area for personnel in shops, offices and other working environments --on farms, by clientele of hotels, motels and other environments of a...
  • Page 4 ● Do not damage the plug and/or the power cord; this could cause electrical shocks or fires. ● It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire. ● Do not use mechanical devices or other equipment to hasten the defrosting process.

  • Page 5: Scrapping Old Appliances

    SCRAPPING OLD APPLIANCES This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

  • Page 6: Service

    If you require a service call then please contact the Customer Care Department DESCRIPTION OF APPLIANCE Product Features CCVB 15: Single Zone--7 Bottles A. Control Panel B. Glass Door C. Handle D. Beech Shelves E.

  • Page 7: Control Panel

    D. Beech Shelves E. Front Vent F. Adjustable Foot Control Panel Single Zone ： CCVB 15, CCVB 30, CCVB 60D A. Power B. Lighting C. Display Window D. Temp. Plus E. Temp.Minus F. Lock / Unlock G. *Function Indicator H. ºC/ºF Switch...

  • Page 8: The Wine Cooler Shelves

    The Wine Cooler shelves o To prevent damaging the door gasket, make sure the door is fully open when pulling shelves out of the rail compartment. o For easy access to the bottles stored, pull the shelves out approximately 1/3 of the way. o For a model without telescopic rails, 2 plastic Stoppers of each shelf is on left and right side of the interior cabinet to prevent the shelf from falling out.

  • Page 9: Turning The Appliance On And Off

    If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting the appliance or reconnecting it to your mains supply. Turning The Appliance On And Off CCVB 15, CCVB 30, CCVB 60D o When the Wine Cooler is connected to the power outlet it will turn on automatically.

  • Page 10: Setting The Temperature Range

    The defualt temperature setting range is: 5-22 ºC (41-72 ºF) for Left Zone, 2 - 20 °C (36 ºF-68ºF) for Right Zone. Setting The Temperature CCVB 15, CCVB 30, CCVB 60D o Use the temperature plus button and minus button to select the temperature you want the Wine Coolers to operate at.

  • Page 11: Changing Between Fahrenheit And Celsius

    Changing Between Fahrenheit And Celsius o You can select whether the temperature display shows Celsius or Fahrenheit. CCVB 15, CCVB 30, CCVB 60D o To alter what the temperature display is showing, press the Celsius and Fahrenheit switch. This will change the temperature display for both cooling zones.

  • Page 12: Loading The Wine Cooler

    As many bottles may differ in size and dimensions, the actual number of bottles you are able to store may vary. The maximum storage number is based on standard 0.75 litre Bordeaux style wine bottles. CCVB 15 750ml Bordeau 305mm Φ76.20mm...

  • Page 13: Storing Your Wines

    CCVB 60D Bottom Shelf Upper Shelf 750ml Bordeau Φ76.20mm 305mm Storing Your Wines The chart below indicates the ideal storage temperatures for different types of wine: Temperature Temperature Type of wine (Celsius) (Fahrenheit) Red wine (*) 15.5 – 18.5°C 59.9 – 65.3°F White wine (**) 10 - 15°C 50 –...

  • Page 14: Wine Storage Problems

    corks from shrinking. o After a bottle of wine has been opened, the wine comes into contact with air. So it is best to store the remainder of the bottle upright, to minimize the surface area of the wine that is coming into contact with the air.
  • Page 15 you should be aware that if the wine cools down again, contraction can cause more air to be sucked into the bottle and result in further deterioration. Slight effervescence in still wine- this isn’t really a problem with the way the wine has been stored, but as a result of incomplete malolactic fermentation before the wine was bottled.

  • Page 16: Cleaning And Maintenance

    CLEANING AND MAINTENANCE WARNING: PLEASE ENSURE THAT YOUR APPLIANCE IS DISCONNECTED FROM Y O U R M A I N S S U P P L Y B E F O R E ATTEMPTING TO CLEAN IT. o Do not clean the appliance by pouring water onto it or spraying water over it.

  • Page 17: Removing The Shelves For Cleaning

    Before removing a Shelf from the appliance, it is necessary to remove all the bottles on the Shelf. CCVB 15, CCVB 30, CCVB 60D o Move the shelf to the position where the notch of the wooden shelf is directly under the plastic stopper and lift the wooden shelf.

  • Page 18: Moving Your Wine Cooler

    o You should be careful to make sure that wine bottles do not touch the rear wall of the appliance, as this can interrupt the automatic defrosting process and deflect water into the base of your Wine Cooler. Moving Your Wine Cooler If you need to move your Wine Cooler to another location you should follow the steps outlined below.

  • Page 19: Installation

    INSTALLATION MPORTANT: Before installation and usage read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found on the front left edge of the inside of the Wine Cooler.

  • Page 20: Built-In Installation

    Be sure to leave enough space for the opening of the door, to avoid damage to the appliance or personal injury. Built-In Installation CCVB 15 • Height Adjustable: 863-883mm CCVB 30 •...
  • Page 21 CCVB 60D • Height Adjustable: 813-833mm A. Removable Front Grille o Your Wine Coolers can be used as a freestanding or a built in unit. The clearances shown in the above drawing should be followed for both types of installation. o In particular, the depth dimension must be observed.
  • Page 22 ● Install Removable Front Grille CCVB 30, CCVB 60D The Front Grille is packed as accessary, pls.unpack and remove it from cabinet inside. Place the unit on a soft and flat floor, lay it down to a suitable angle; A. Removable Front Grille Install the Front Grille by screwing the 4 Tapping Screws (ST4.2x10) tightly with a phillips screwdriver;...
  • Page 23 A decorative plinth can be fitted to the front of the base vent as long as the cut out shown in the diagram below is made in the plinth. This cut out is required whether the vent is removed or not. CCVB 15 A. Cut-out Area 82mm...

  • Page 24: Adjusting The Height And Levelling Off Your Wine Cabinet

    Adjusting the height and levelling off your wine cabinet o The appliance is equipped with adjustable feet, so that the height may be adjusted to level the cabinet on uneven floor surfaces. o We recommend that two people carry out this procedure. o The height must be adjusted prior to building the appliance into the housing unit and it should be set at such a height that the top panel of the appliance fits exactly below the kitchen worktop.

  • Page 25: Reversing The Door Of Your Wine Cooler

    Any parts that you remove from the appliance whilst reversing the door, should be retained for later use. CCVB 15, CCVB 30 o Open the glass door and remove the two screws from Pivot Hinge under the right bottom corner of the glass door.
  • Page 26 o Remove the right top hinge and right lower hinge. Right Top Hinge Right Lower Hinge o Pull out the 6 Plastic Caps at the front left corner of the cabinet. And move them all to the right side. Plastic Caps .24.
  • Page 27 o Take the left top hinge and left lower hinge from the plastic bag that contained this manual then install them in the designated positions on the left side of the cabinet. Left Top Hinge Left Lower Hinge o Turn the glass door around 180° and reinstall it. o Insert the Pivot Hinge into the Left Lower Hinge hole of the door.
  • Page 28 o Install the door to the left hinge side by tightening the Support Rod with the 2 screws. Pivot Hinge Screws IMPORTANT: Check that the door opens and shuts correctly, without fouling, after you have completed the door reversal process. After the door has been reversed, you should check the door seal of the Wine Coolers.

  • Page 29: Troubleshooting

    TROUBLESHOOTING IMPORTANT: If your Wine Cooler appears not to be operating properly, before contacting the Customer Care Department, please refer to the checklist below. PROBLEM POSSIBLE CAUSE Not plugged in. The Wine Cooler does not operate The appliance is turned off. The circuit breaker tripped or a blown fuse.
  • Page 30 DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. Please note that if an engineer is asked to attend whilst the product is under guarantee and finds that the problem is not the result of an appliance fault, then you may be liable for the cost of the call out charge.

  • Page 31: Technical Data

    TECHNICAL DATA Candy Manufacturer 2 – Refrigeration-cellar, Cellar and Wine storage Product Category appliances CCVB 15 CCVB 30 Model Number CCVB 60D Energy Efficiency Class (1) Annual Energy 236kWh 190kWh 288kWh Consumption (2) Storage Volume of Fridge Compartment Storage Volume of...

This manual is also suitable for:

Ccvb 30Ccvb 60d
