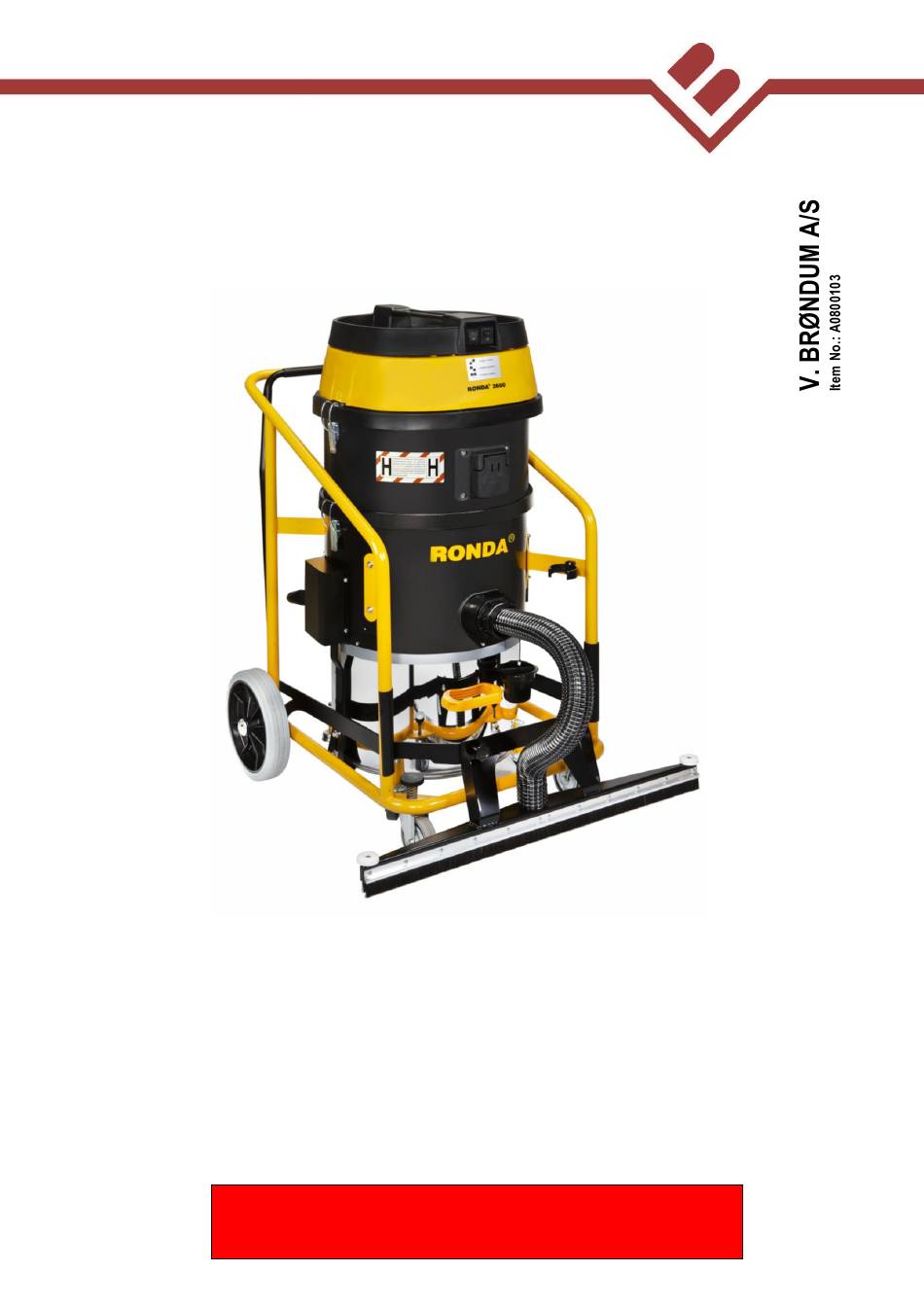

- Page 1 User Manual RONDA 2600H The Vacuum Cleaner for Factories and Warehouses with Detachable Container -2022 IMPORTANT! Please read the manual before you use the vacuum cleaner.
- Page 2 USER MANUAL Siden er tom RONDA 2600H V. BRØNDUM A/S...
- Page 3 USER MANUAL Table of Contents Description of RONDA 2600H ....................5 Technical data ........................5 Standard accessories ......................6 Machine design and description ..................7 Motor top ........................7 Adapter ring ......................... 7 Collection container...................... 8 Multi-tube filter......................8 Trolley frame ........................
- Page 4 USER MANUAL RONDA 2600H V. BRØNDUM A/S...
- Page 5 The Vacuum Cleaner for Factories and Warehouses RONDA 2600H is a Danish developed high efficiency vacuum cleaner for the collection of dry dust in large areas such as warehouses, factories, offices etc. with hard floors. RONDA 2600H is equipped with a very flexible and wide high-capacity front nozzle, which is suspended in such a way that there is close contact to the floor all the time.
- Page 6 Standard Accessories RONDA 2600H is supplied with a complete set of accessories including tubes, hose and all necessary nozzles. The accessories can be re-ordered when using the following article numbers: 40 mm professionals set (antistatic) ..........80.43.4025 1. Plastic hose, antistatic 4 m ............84.74.3806 2.
- Page 7 USER MANUAL Machine Design and Description RONDA 2600H consists of the following main parts: 1) Motor top 2) Adapter ring 3) Collection container 4) Intermediate ring with multi-tube filter 5) Trolley frame 6) Front nozzle Motor Top The two (or three) powerful suction motors of the motor top are individually switched on with the two switches of the motor top.
- Page 8 The wide front nozzle is suspended so that it can be adjusted. The precise distance above the surface of the floor is adjusted by means of the adjusting screws on top of the wheels of the front nozzle. ® RONDA 2600H V. BRØNDUM A/S...
- Page 9 RONDA 2600H may be used in dry environments only and must not be used or stored under moist or wet conditions outside or inside. The user manual is to ensure a secure operation of the vacuum cleaner, and to ensure that the user is in no way uncertain as to the use.
- Page 10 The upper part of the motor top is a non-dust proof compartment, and when cleaning, the covers of this compartment are removed by loosening the screws fixing the covers. ® RONDA 2600H V. BRØNDUM A/S...
- Page 11 Keep the vacuum cleaner in a dry place and inaccessible to children. Do not use force. Do not use force when operating the vacuum cleaner. Do not step on the hose, or the electrical cord. ® RONDA 2600H V. BRØNDUM A/S...
- Page 12 Check the vacuum cleaner for damage. Check that the shields etc. have been properly fastened. Check the electrical switches, and have an authorized service mechanic replace them, if they are damaged. Do not use the vacuum cleaner, if it cannot be started and/or stopped at the switch. ® RONDA 2600H V. BRØNDUM A/S...
- Page 13 RONDA 2600H is earthed through the earth connection of the cabling. Therefore, it is very important that the appliance is connected to a power supply with reliable connection to earth (Active protection against indirect touch).
- Page 14 Use and Mounting of the Front Nozzle Unpack the RONDA 2600H and check that all the parts ordered are present. Mount the front nozzle onto the lifting handle: The front nozzle is mounted with the two enclosed screws [1] ...
- Page 15 [4]. The front of the lifting handle, where the nozzle is to be mounted, must be placed at the top side of the trolley frame and the wheel assembly [2] [5]. ® RONDA 2600H V. BRØNDUM A/S...
- Page 16 IF NOT ALREADY MOUNTED Screw, socket, disc, and compression spring are mounted on the thread of the front wheel. This is used for adjusting the height of the brush above the floor. ® RONDA 2600H V. BRØNDUM A/S...
- Page 17 REMEMBER: Always get information about the disposal of waste and about the rules in force for the materials in question. RONDA 2600H is now ready for operation. The collection and the use are described in details on the following pages. ® RONDA 2600H V.
- Page 18 NOTICE: The vacuum indicator of the RONDA 2600H is calibrated for correct indication, when the appliance is used with its standard accessories (40 mm). Using hoses or other accessories with a smaller dimension, the vacuum indicator will indicate too high a value. If you want guarantee for sufficient air velocity in the tubes and hoses, it is recommended to clean the filter, and if necessary to empty the appliance, if the pointer of the vacuum indicator enters the red section.
- Page 19 The effect of the cleaning can be seen on the vacuum indicator – if not, the HEPA-filter may be blocked. Repeat the process if necessary. (2-3 times should remove even the most stubborn dirt.) ® RONDA 2600H V. BRØNDUM A/S...
- Page 20 RONDA 2600H comes with a fiberboard container insert which is used if you want to collect into a plastic bag. Item numbers for re-ordering: Container insert incl. 2 pcs. plastic bags 84.64.9987...
- Page 21 It is recommended to have an authorized service center inspect the brushes of the suction motor after approx. 800 working hours, and if necessary, replace them. In this way the life of the suction motor is prolonged. ® RONDA 2600H V. BRØNDUM A/S...
- Page 22 If the multi-tube filter is damaged, or if there are holes in surface of the filter, the multi-tube filter must be replaced. If the multi-tube filter is replaced, the HEPA-filter should be replaced at the same time. See the following page. ® RONDA 2600H V. BRØNDUM A/S...
- Page 23 If the appliance has been used for the collection of material demanding safety equipment, you must also use safety equipment when replacing the filters. It is recommended always to put on gloves and mask, when the appliance is emptied and maintained. ® RONDA 2600H V. BRØNDUM A/S...
- Page 24 The multi-tube filter may be blocked. Clean the multi-tube filter as described in the section: “Filter Cleaning during Operation”. The HEPA-filter may be blocked. Replace the filter as described in the section: “Replacing the Filters”. ® RONDA 2600H V. BRØNDUM A/S...
- Page 25 Electrically operated industrial vacuum cleaner, Model: RONDA 2600H (-S, og variants) has been designed and produced in accordance with the basic requirements and other relevant conditions of the following directives: Machinery Directive (Directive 2006/42/EF) Low Voltage Directive (Directive 2014/35/EU) EMC Directive (Directive 2014/30/EU).
- Page 26 The appliance must be delivered to the factory through a dealer of the V. BRØNDUM A/S organization, or sent carriage paid to: V. BRØNDUM A/S Sadolinsvej 14 DK - 8600 Silkeborg Tel. (+45) 8682 4366 Fax (+45) 8680 3363 E-mail: v@broendum.com www.broendum.com Subject to changes. ® RONDA 2600H V. BRØNDUM A/S...
