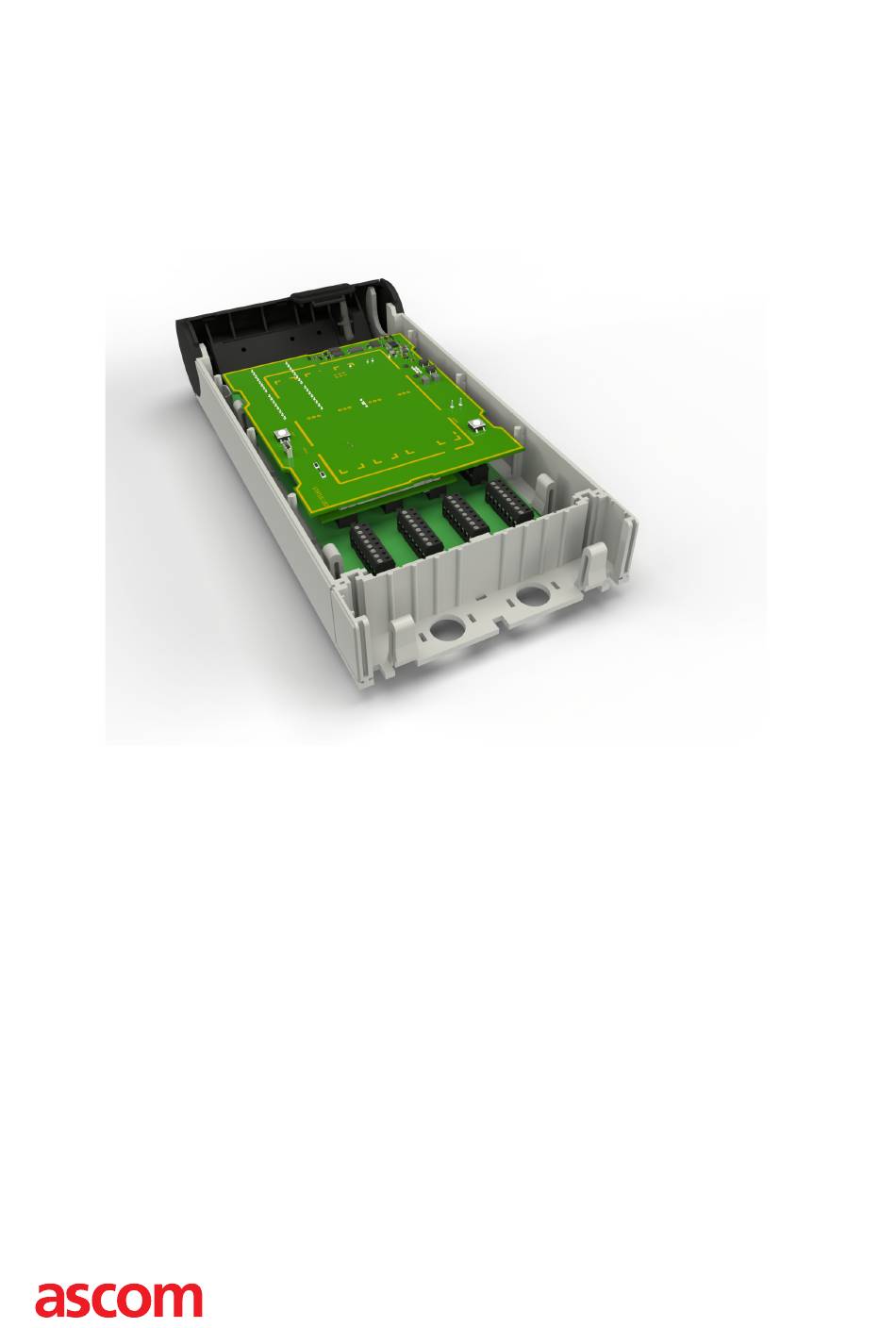

- Page 1 INSTALLATION GUIDE tCM - Migration Controller Installation Guide (NUMIPCE-H)
-
Page 2: Table Of Contents
INSTALLATION GUIDE tCM - Migration ControllerInstallation Guide (NUMIPCE-H) Contents 1 Symbols ............................1 2 Description ............................2 3 Installation.............................3 4 Important Safety Information ......................4 5 Connections ..........................5 6 Mounting............................6 Mount in an existing NIAM housing ..................6 7 Document History ......................... 11... -
Page 3: Symbols
INSTALLATION GUIDE tCM - Migration ControllerInstallation Guide (NUMIPCE-H) Symbols Symbols Read the manual for more information Caution: Use extreme caution and follow instructions carefully. TD 93526EN / 10 January 2022 / Ver. A... -
Page 4: Description
The controller board (NUMIPCE) is a board that replaces the NIAM (Intelligent Address Module) of a teleCARE M system. On top of this board a Room Controller NIRC4–H can be mounted. The NUMIPCE-H board offers 4 dual roombuses (8 in total) with a 24Vdc power supply to the rooms. At the room side, NUMIPPE-H modules are needed to convert the power supply down to 5.5Vdc. -
Page 5: Installation
The NUMIPCE–H is an printed circuit board with no specific ingress protection. This board is meant to be mounted in the plastic housing of the NIAM (Intelligent Address Module) of an existing teleCARE M installa- tion. After mounting and installing of the NUMIPCE-H and the Room Controller (NIRC4) in this plastic housing, the ingress protection is IP40. -
Page 6: Important Safety Information
The Controller Board NUMIPCE-H Installation Guide contains important instructions for use during installa- tion and maintenance of the NUMIPCE-H. To ensure a safe working environment during the installation and operation, the following safety symbols appear throughout this document to indicate dangerous conditions and important safety instructions. -
Page 7: Connections
Legend (1) 2 pin connector for 24Vdc power supply (2) 4x 6–pin connector for interconnection of NIRC4 Room Controller and NUMIPCE-H board (3) 8x 8–pin connectors for roombuses 0a through 3b. TD 93526EN / 10 January 2022 / Ver. A... -
Page 8: Mounting
Mount in an existing NIAM housing The following shows how to mount the NUMIPCE-H and the NIRC4–H boards into an existing NIAM-housing. The graphics below do not show the mounted cabling while that might obstruct the view of the graphics. - Page 9 - Migration ControllerInstallation Guide (NUMIPCE-H) Mounting Connect the 24Vdc power lines to the 2–pin power connector on the NUMIPCE-H board. The power supply should only be switched on after the installation is complete and verified. Placing of the NUMIPCE-H board Press down the board firmly, the board clicks into the housing using the 4 clips.
- Page 10 The NIAM connectors can be used for the NUMIPCE-H board. The NIAM has 10 buses, the NUMIPCE-H uses only 8 buses. The wiring color scheme for the NIAM can be used for the NUMIPCE-H. The same wiring color scheme must be used on the room side for the stepdown converter modules (NUMIPPE-H).
- Page 11 1 and pin 8 are left vacant. Mount the NIRC4 onto the NUMIPCE-H board. The four 6–pin connectors must line-up with the four 6–pin headers on the NUMIPCE-H board. Press firmly and ensure that the NIRC4 board is level.
- Page 12 Close the lid of the housing The lid clicks firmly onto the housing. If the lid cannot be closed firmly, check that the NIRC4 is correctly mounted onto the NUMIPCE-H board. Also check that none of the cables is obstructing the lid.
-
Page 13: Document History
INSTALLATION GUIDE tCM - Migration ControllerInstallation Guide (NUMIPCE-H) Document History Document History Version Date Description 10 January 2022 First release TD 93526EN / 10 January 2022 / Ver. A... - Page 14 Ascom (Sweden) AB Grimbodalen 2 SE–417 49 Göteborg Sweden Phone +46 31 55 93 00 www.ascom.com...
