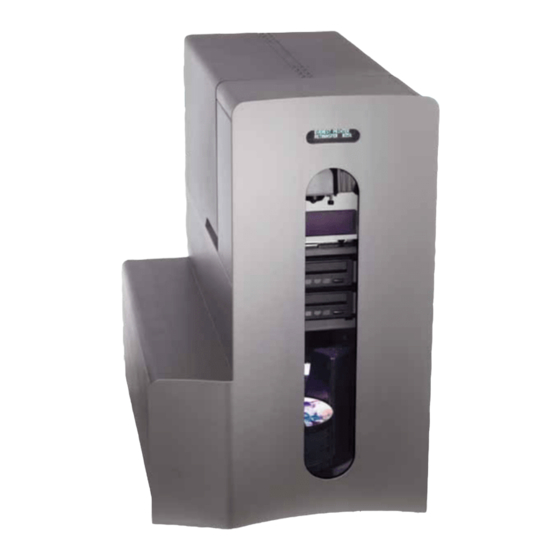

Rimage Producer 7100 Reference Manual

Rimage Producer III™
Replace a Quick-Release Recorder
Use this procedure to replace a quick-release recorder in a Producer 7100™ and Producer 8100™.
Rimage approved parts must be used for this process. The product warranty may become void if parts not approved by Rimage are
used; equipment or parts are tampered with, misused, neglected, or modified in any respect without the written consent of Rimage.
The term "Producer III" is used throughout this document to refer to the Producer 7100 and Producer 8100.
Before you begin
1. Stop or pause all jobs.
2. Power off the external control center.
3. Power off the Producer III.
4. Disconnect the power cord from the power outlet.
Remove the Recorder
1. Open the front door.
2. Access the cables on the recorder to be replaced.
a. Gently squeeze together the recorder's quick-
release tabs while the pulling the recorder out.
The recorder detaches from the Producer III.
b. Using the tab on the left, pull the recorder out
until you can access the cables.
3. Disconnect the cables from the recorder.
•
Power cable
•
FireWire cable
Tip: Loosen the thumbscrews (Qty. 2) on
the FireWire connector before pulling out
the FireWire cable.
2000732_B
Required tools:
•
None required
FireWire Cable
© 2008, Rimage Corporation
Quick-Release Tabs
Power Cable
Operator
1
