Summary of Contents for Spansion MB39C502-EVBSK-01

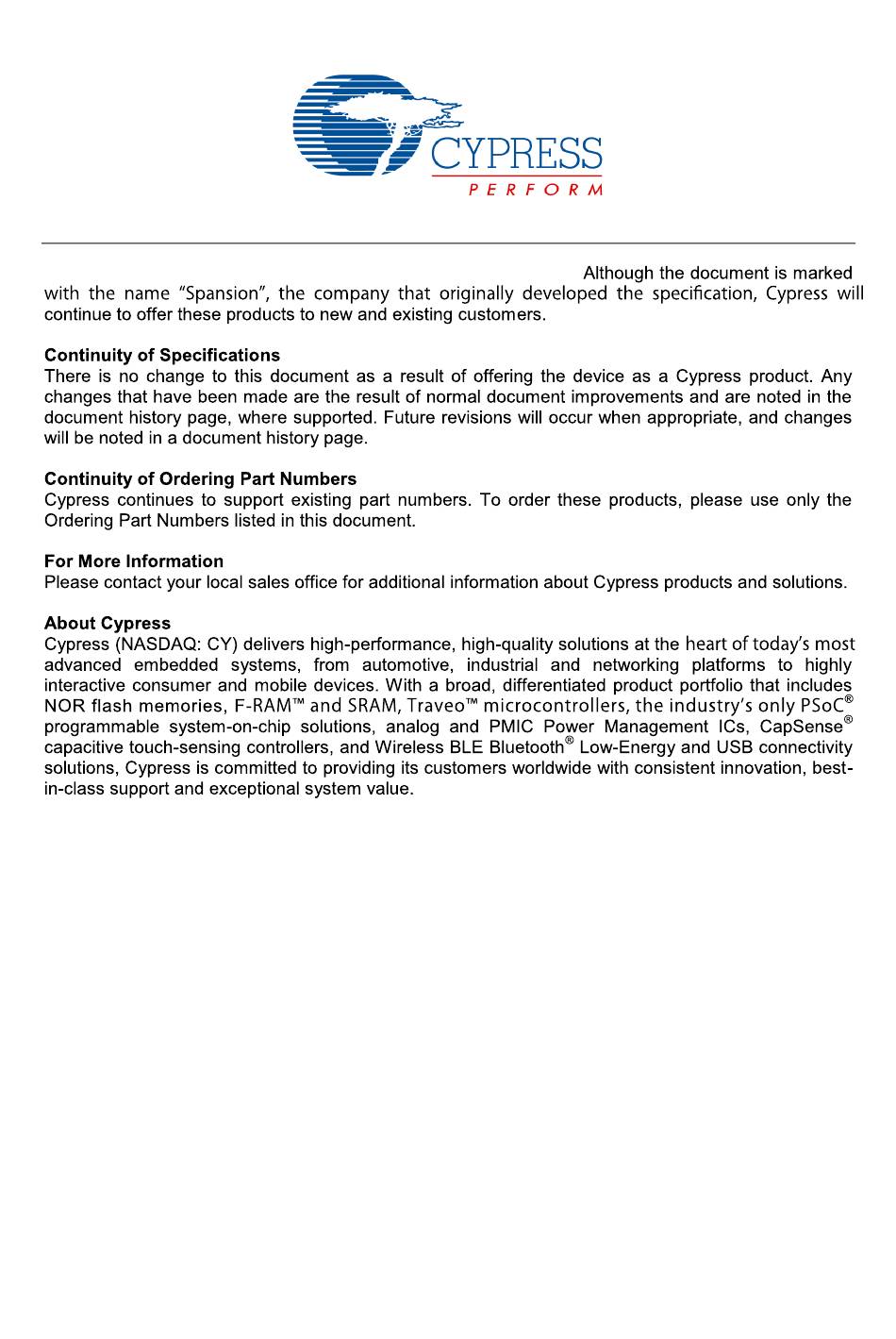

  • Page 1 The following document contains information on Cypress products.
  • Page 2 MB39C502-EVBSK-01 High Efficiency Single Output Step Down DC/DC Controller Evaluation Board Operation Manual Publication Number MB39C502-EVBSK-01_SS901-00030 Revision 1.0 Issue Date November 19, 2014...
  • Page 3 O p e r a t i o n M a n u a l MB39C502-EVBSK-01_SS901-00030-1v0-E, November 19, 2014...
  • Page 4 O p e r a t i o n M a n u a l Preface This manual explains how to use the evaluation board. Be sure to read this manual before using the product. For this product, consult with sales representatives or support representatives. Handling and use Handling and use of this product and notes regarding its safe use are described in the manuals.
  • Page 5 O p e r a t i o n M a n u a l Caution of the products described in this document The following precautions apply to the product described in this manual. Indicates a potentially hazardous situation which could result in death or serious injury and/or WARNING a fault in the user’s system if the product is not used correctly.
  • Page 6: Table Of Contents

    O p e r a t i o n M a n u a l Table of Contents Description ............................. 8 Evaluation Board Specification ....................... 9 Pin Description ..........................10 Setup and Checkup ........................11 Component Layout ........................12 Wiring Layout ..........................13 Circuit Diagram ..........................
  • Page 7 O p e r a t i o n M a n u a l Figures Figure 4-1 Image of Connection ......................11 Figure 5-1 Component Layout ....................... 12 Figure 6-1 Wiring Layout ........................13 Figure 7-1 Circuit Diagram ........................14 Figure 9-1 Efficiency vs Output Current, VOUT ;...
  • Page 8 O p e r a t i o n M a n u a l Tables Table 2-1 Evaluation Board Specification ....................9 Table 3-1 Pin Description ........................10 Table 8-1 Parts List ..........................15 Table 12-1 Ordering Information ......................24 Table 13-1 Major Changes ........................
  • Page 9: Description

    MB39C502-EVBSK-01 High Efficiency Single Output Step Down DC/DC Controller Evaluation Board Operation Manual Description MB39C502 is a single output step down DC/DC controller using external FETs. It achieves the high efficiency with “Enhanced Low Power Mode (LPM) Operation” in light load. In Enhanced LPM, this controller operates that the quiescent current is reduced only 30μA and the switching frequency is fallen by extending...
  • Page 10: Evaluation Board Specification

    O p e r a t i o n M a n u a l Evaluation Board Specification Table 2-1 Evaluation Board Specification Component Symbol Condition Unit Input Voltage Output Voltage VOUT Output Current IOUT SLP_N=H 8.54 Switching Frequency November 19, 2014, MB39C502-EVBSK-01_SS901-00030-1v0-E...
  • Page 11: Pin Description

    O p e r a t i o n M a n u a l Pin Description Table 3-1 Pin Description Component Input or Output Description Input Power supply terminal of DC/DC system. VOUT Output Output of DC/DC system. Input Power supply terminal PWM controller and internal drivers.
  • Page 12: Setup And Checkup

    O p e r a t i o n M a n u a l Setup and Checkup − Supply the DC/DC input power of to the terminal between VIN to PGND. − Supply the PWM controller input voltage of 5.0V to VDD terminal. −...
  • Page 13: Component Layout

    O p e r a t i o n M a n u a l Component Layout Figure 5-1 Component Layout Top View MB39C502-EVBSK-01_SS901-00030-1v0-E, November 19, 2014...
  • Page 14: Wiring Layout

    O p e r a t i o n M a n u a l Wiring Layout Figure 6-1 Wiring Layout Top Side (Layer 1) Inside (Layer 2) Inside (Layer 3) Bottom Side (Layer 4) November 19, 2014, MB39C502-EVBSK-01_SS901-00030-1v0-E...
  • Page 15: Circuit Diagram

    O p e r a t i o n M a n u a l Circuit Diagram Figure 7-1 Circuit Diagram VOUT PatternShort VOUTs LDO5 PatternShort VINs PWRGD PWRGD VIN1 VIN2 VOUT5 ALERT_N_VOUT ALERT_N VIN3 VOUT4 DRVH VIN4 VOUT3 SLP_N SLP_N VOUT2 VOUT1...
  • Page 16: Parts List

    O p e r a t i o n M a n u a l Parts List Table 8-1 Parts List Component Item Specification Vender Package Parts Name Remark Spansion QFN-16 MB39C502 Controller VDS=30V, ID=11A RON=8.8mΩ, QG=6.7nC High/Low Nch FET Fairchild Power33 FDMC7208S VDS=30V, ID=13.5A...
  • Page 17: Reference Data

    O p e r a t i o n M a n u a l Reference Data Figure 9-1 Efficiency vs Output Current, VOUT ; 1.2V-Setting Efficiency vs Output Current, VOUT ;1.2V-Setting 7.4V Normal 12.0V Normal 20.0V Normal 7.4V LPM 12.0V LPM 20.0V LPM 100%...
  • Page 18: Figure 9-3 Start-Up (En=0V=>5V) Vin=7.4V,Vout=1.2V,Iout=0.05A, Slp_N=H

    O p e r a t i o n M a n u a l Figure 9-3 Start-up (EN=0V=>5V) VIN=7.4V,VOUT=1.2V,IOUT=0.05A, SLP_N=H Figure 9-4 Shutdown (EN=5V=>0V) VIN=7.4V,VOUT=1.2V,IOUT=0.05A, SLP_N=H November 19, 2014, MB39C502-EVBSK-01_SS901-00030-1v0-E...
  • Page 19: Figure 9-5 Load Step Response (Vin=7.4V,Vout=1.2V) Iout=0.05A To 7.69A, Slp_N=H

    O p e r a t i o n M a n u a l Figure 9-5 Load step response (VIN=7.4V,VOUT=1.2V) IOUT=0.05A to 7.69A, SLP_N=H Figure 9-6 Load step response (VIN=7.4V,VOUT=1.2V) IOUT=7.69A to 0.05A, SLP_N=H MB39C502-EVBSK-01_SS901-00030-1v0-E, November 19, 2014...
  • Page 20: Figure 9-7 Switching Waveform (Vin=7.4V,Iout=8.54A) , Slp_N=H

    O p e r a t i o n M a n u a l Figure 9-7 Switching waveform (VIN=7.4V,Iout=8.54A) , SLP_N=H Figure 9-8 Switching waveform (VIN=7.4V,Iout=0.05A), SLP_N=H November 19, 2014, MB39C502-EVBSK-01_SS901-00030-1v0-E...
  • Page 21: Figure 9-9 Switching Waveform (Vin=7.4V,Iout=0.3A), Lpm At Slp_N=L

    O p e r a t i o n M a n u a l Figure 9-9 Switching waveform (VIN=7.4V,Iout=0.3A), LPM at SLP_N=L Figure 9-10 Switching waveform (VIN=7.4V,Iout=0.01A) , LPM at SLP_N=L MB39C502-EVBSK-01_SS901-00030-1v0-E, November 19, 2014...
  • Page 22: Figure 9-11 Increase Temperature 1.2V Output Voltage, Using "Fdmc7208S" Fet

    O p e r a t i o n M a n u a l  Increase Temperature of External FET Figure 9-11 Increase Temperature 1.2V Output Voltage, using “FDMC7208S” FET. Increase Temperature vs. Output Current VIN=25.0V VIN=20.0V VIN=12.0V VIN=7.4V 10.0 11.0 12.0...
  • Page 23: Initial Settings

    O p e r a t i o n M a n u a l 10. Initial Settings  Output Voltage         Ω Ω     23.6     ...
  • Page 24: Evaluation Board Picture

    O p e r a t i o n M a n u a l 11. Evaluation board picture Figure 11-1 Evaluation board Picture (top) Figure 11-2 Evaluation board Picture (back) November 19, 2014, MB39C502-EVBSK-01_SS901-00030-1v0-E...
  • Page 25: Ordering Information

    O p e r a t i o n M a n u a l 12. Ordering Information Ordering Information Table 12-1 Part number EVB revision Note MB39C502-EVBSK-01 Rev 1.0 MB39C502-EVBSK-01_SS901-00030-1v0-E, November 19, 2014...
  • Page 26: Major Changes

    O p e r a t i o n M a n u a l 13. Major Changes Table 13-1 Major Changes Page Section Change Results Revision 1.0 Initial release November 19, 2014, MB39C502-EVBSK-01_SS901-00030-1v0-E...
  • Page 27 O p e r a t i o n M a n u a l MB39C502-EVBSK-01_SS901-00030-1v0-E, November 19, 2014...
  • Page 28 O p e r a t i o n M a n u a l SS901-00030-1v0-E Spansion  Support Tool Manual MB39C502-EVBSK-01 High Efficiency Single Output Step Down DC/DC Controller Evaluation Board Operation Manual November 2014 Rev. 1.0 Published: Spansion Inc.
  • Page 29 Spansion assumes no liability for any damages of any kind arising out of the use of the information in this document.
