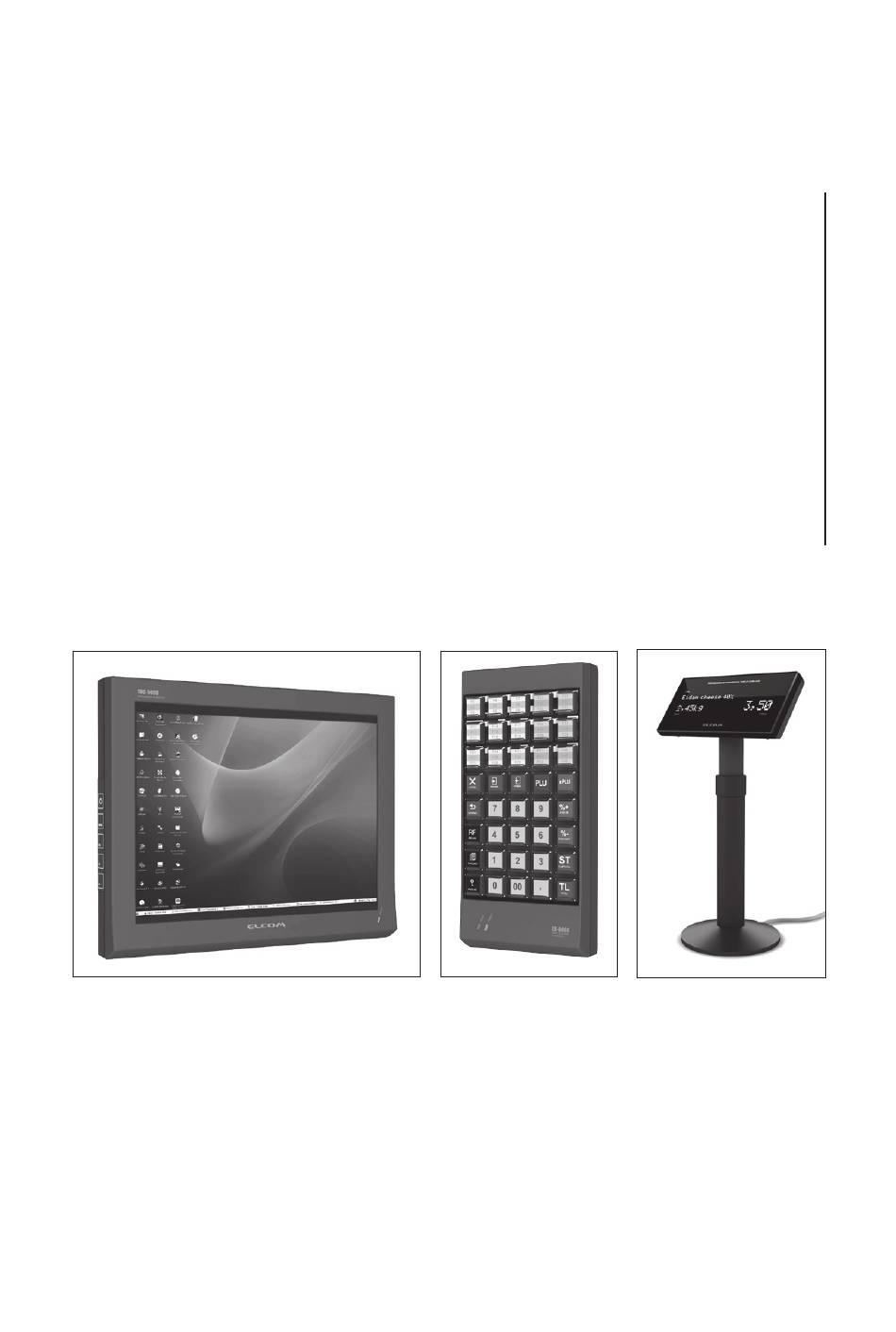

- Page 1 TDC-5000 EK-5000 ED-5000 User Manual version 1.0...
- Page 2 This manual was not subject to any language revision. This manual or any part of it may not be copied, reproduced or otherwise distributed without the publisher‘s consent. All rights reserved. Elcom, s.r.o. © ELCOM s. r. o., 2008...
- Page 3 Keyboard buttons ..............11 Display menu ................11 Error messages ................. 14 Attaching the display and keyboard to the STDC-5000 stand ....14 EK-5000 ....................15 Basic information ............... 15 Controlling the program .............. 15 Main application window ..............15 Keyboard types ................15 Programmed keys ..............
- Page 4 Use with cash registers ............... 21 Basic layout of the keys ..............21 Layout of functional keys on PC keyboards for different types of Elcom cash registers ..............21 Euro-2000 Alpha, Euro-1000 ............21 Euro-500 Handy, Euro-2100, Euro-200 ......... 22 Euro-2500TX ................
- Page 5 Important notice IMPORTANT NOTICES • Do not leave switched-on equipment unattended! • Install the product in a place where it will not be exposed to direct sunlight, unusual changes in temperature (below 0°C and over 45°C) or high humidity. Installation in an unsuitable place could cause damage to the casing and electrical components.
- Page 7 TDC-5000 v10.2 TDC-5000 v10.2 BASIC INFORMATION Power supply 12 V DC ±5 % Consumption max. 10 W Working temperature 0 to 45 °C Display interface Diagonal display size 10,2“ (264 mm) Screen resolution 800 x 480 pixels Pixel size 0,278 x 0,278 mm Contrast 400:1 Number of colors...
- Page 8 TDC-5000 v10.2 KEYBOARD BUTTONS Membrane keyboard switching on/switching off of the display POWER entry to the display menu change selected item in menu (down direction) Select setting of preselected brightness direct increase in brightness level increase the value of a parameter setting in the menu Select direct decrease in brightness level decrease the value of a parameter setting in the menu...
- Page 9 TDC-5000 v10.2 OTHER SETTINGS VOLUME function not used MUTE function not used setting preset brightness (DARK – 20, DIMMER NORMAL – 50, BRIGHT - 80) CCD_MIRROR function not used MIRROR rotating the image on a vertical axis REVERSE rotating the image on a horizontal axis R_TEMP setting the level of the red color G_TEMP...
- Page 10 TDC-5000 v10.4 TDC-5000 v10.4 BASIC INFORMATION Power supply 12 V DC ±5 % Consumption max. 6 W Working temperature 0 to 45 °C Display interface VGA, DVI Diagonal display size 10,4“ (264 mm) Screen resolution 800x600 pixels Pixel size 0,264x0,264 mm Contrast 500:1 Number of colors...
- Page 11 TDC-5000 v10.4 KEYBOARD BUTTONS Membrane keyboard POWER switch on/switch off Menu/Exit enter to display menu/return to previous menu level select entry of the signal the highlighted menu function automatic screen setting (if the menu is inactive) shift up within a menu increase the set value Source/Select menu for controlling the sound level...
- Page 12 TDC-5000 v10.4 5. Setting the image 9. Setting the cycle of the image signal (MENU � – ) (MENU � – � SEL � 3x – � SEL � +/–) 6. Setting the horizontal position of 10. Settings for functions the image (MENU �...
- Page 13 TDC-5000 v10.4 13. Settings for the display menu 17. Setting the automatic switch-off (MENU � 3x – ) menu (MENU � 3x – � SEL � 3x – � SEL) 14. Language selection 18. Setting the transparency of the menu (MENU �...
- Page 14 C) Settings for the display are outside A) Determining the presence its working range of an input signal (VGA/DVI) B) There is no input signal (VGA/DVI) Attaching the display and keyboard to the STDC-5000 stand Assembly of the TDC-5000 and EK-5000 to a STDC-5000 stand.
- Page 15 EK-5000 EK-5000 BASIC INFORMATION Power supply 5V DC ±5 % (from USB) Consumption max. 1W Working temperature 0 to 45 °C Communication interface Number of buttons Maximum number of programmed buttons 117 (3 layers x 39) Possibility of connecting a scanner...
- Page 16 Saves an updated file. If a new file is involved or if you use the command „Save as...“the dialogue window for saving a file appears. When saving a file, it is possible to select its format on the basis of the type of keyboard used. The EK-5000 uses only one type of file. Close Closes the program.
- Page 17 EK-5000 Programming... Serves for programming the updated data from the program to the keyboard. Read the keyboard programming... Serves for reading the programmed values from the keyboard to the program. Renew the firmware... Serves for putting a new version of the firmware onto the keyboard.
- Page 18 EK-5000 Beeping Not supported in the EK-5000. Types of keys Select a mode for the keys: • Make-Break: key does not repeat (implicitly). • Typematic: allows for the repeating of a key upon its being held down. Pause between codes Time between sending of two scan-codes from the keyboard: 1–255 ms, implicitly 3 ms.
- Page 19 EK-5000 Special programming of a key Programming by oneself can be activated in a number of ways. Whether the programming begins immediately or after confirmation from the user, it is also possible to set what role the double-click of a mouse will play.
- Page 20 EK-5000 Operations over a key By pressing the right mouse button, you call up a context menu which offers operations for the keys. The individual menu items are described below. Program a sequence With the help of the menu item „Programming the current key“ it is possible to program a key the same as with the use of a double-clicking with the left mouse button on the key.
- Page 21 Depictions of keyboard layouts for individual cash registers are located on the Support CD (from number 3/2002) and on the homepage in the support section. Layout of functional keys on PC keyboards for different types of Elcom cash registers Note The layout of symbols concurs with classic Slovak/Czech „QWERTZ keyboards“ (only the Slovak keyboard is depicted on screens).
- Page 22 EK-5000 Euro T/TX Handy Operation in registration mode Euro-500 Handy, Euro-2100, Euro-200 igure . > For a direct PLU the same applies as for the Euro-2000 Alpha cash register. Euro-2500TX ������ ��� ���� ���� ���� ���� � � � � �...
- Page 23 ED-5000 ED-5000 BASIC INFORMATION Power supply 5V DC ±5 % Consumption max. 0,3 W Working temperature 0 to 45 °C RS 232 Communication interface upper row: 20 lower row: 6 + 10...
- Page 24 Notes...
